Multi-connector cap 100 mm EVAC+ for PVC unit downpipe, primary ventilation
€61.28
Tax Included
(51.07 € HT)
Référence ESPINOSA : 22179H
Emplacement magasin :
Opt now for the MOLECOR PVC multi-connector sanitary breech reference 22179H
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)

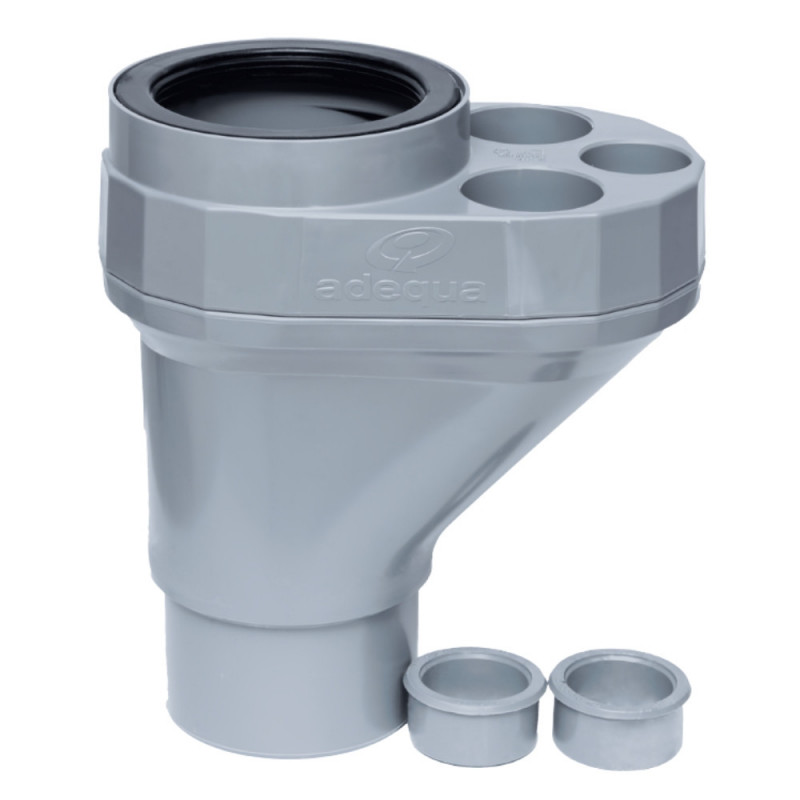

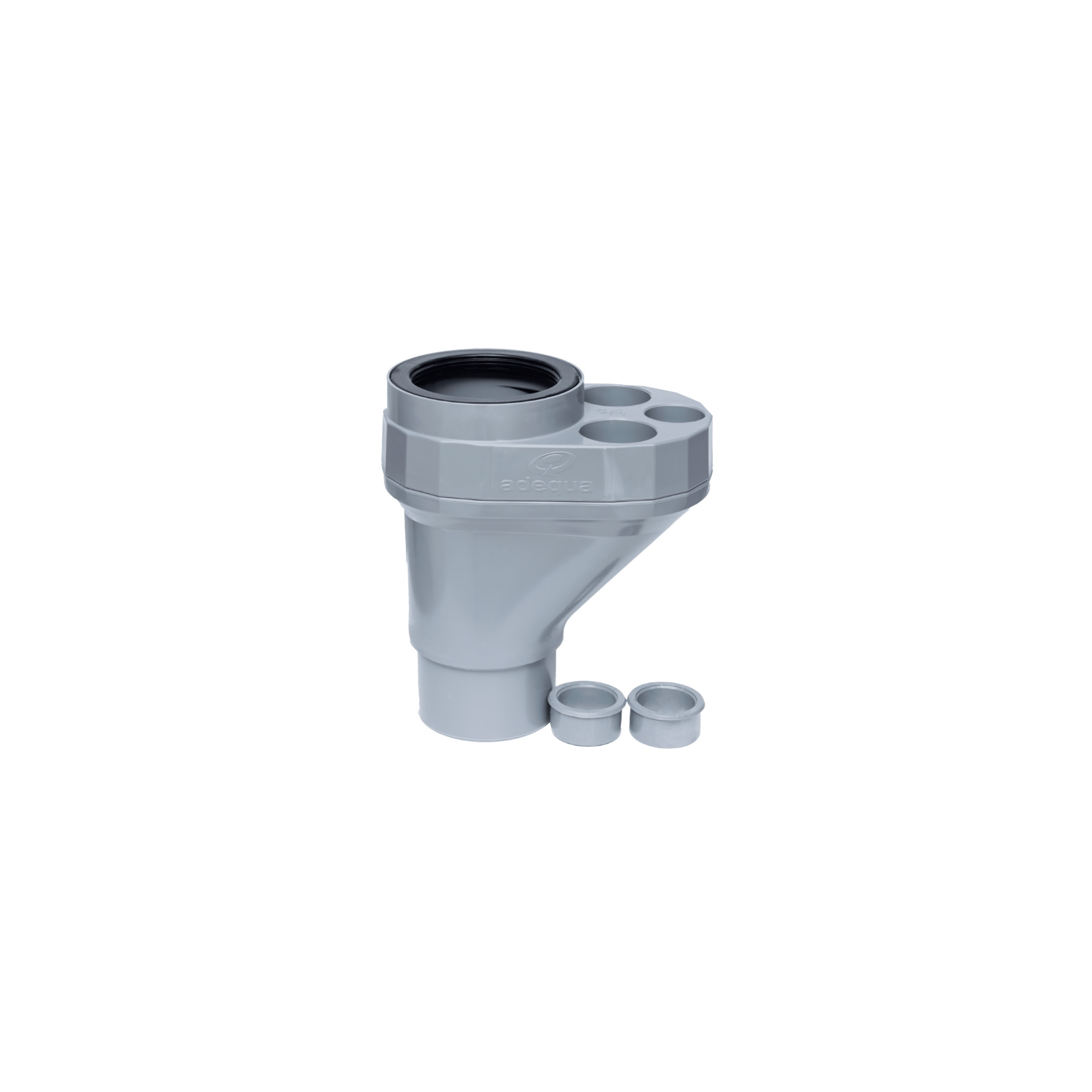

EVAC+ multi-connector cap for PVC unitary waterfall, MOLECOR primary ventilation part no. 22179H
Product type : PVC sanitary multi-connector cap
Description:
Male-Female cap: female inlet with elastomer seal and male outlet to be glued.
Allows smooth PVC single-pipe drainage with primary ventilation without the need for secondary ventilation in accordance with NF EN 12056-2.
The EVAC+® Multiconnector from MOLECOR® is an innovative solution for optimizing sanitary installations. Designed with three female inlets, this connection block enables various accessories to be connected while saving space in the technical duct.
Key features :
Material: Fire-retardant composition, NF Me certified.
Inlet diameters: ø50 mm, ø50 mm, ø40 mm.
Compatibility: AR® system and NF plain tubes.
Standards: Complies with NF EN 12056-2.
Installation: Flexible, flush with the slab or on the underside.
Sealing: Double-lip saw-tooth seal for perfect watertightness.

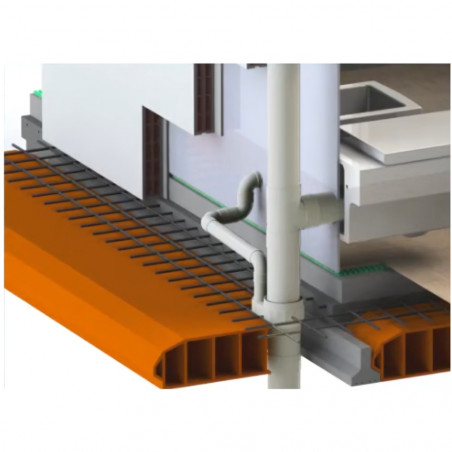

Installation flush with the slab or on the underside of the slab of wastewater connections guaranteeing good drainage thanks to an appropriate slope.
Advantages :
Space-saving: Compact design saves technical space.
Versatility: Compatible with various sanitary accessories.
Durability: Guarantees a perfect seal and long service life.
Applications :
Building drainage.
Ideal for new installations and renovations.
Includes:
Two 50/40 bonding reducers.
Supplier: MOLECOR
Reference : 22179H
2 Items
Data sheet
- Length (cm):
- 21,5
- Width (cm):
- 10
- Height (cm):
- 25,2
- Main color :
- Grey
- Nominal diameter (DN in mm) :
- 100
- Main materials :
- PVC
- Origin:
- EU
Specific References
- EAN13
- 3662217950508
- EAN-13
- 3662217950508
- Location
- Reference to display
- FRBCU22179H
- Supplier reference
- 22179H
