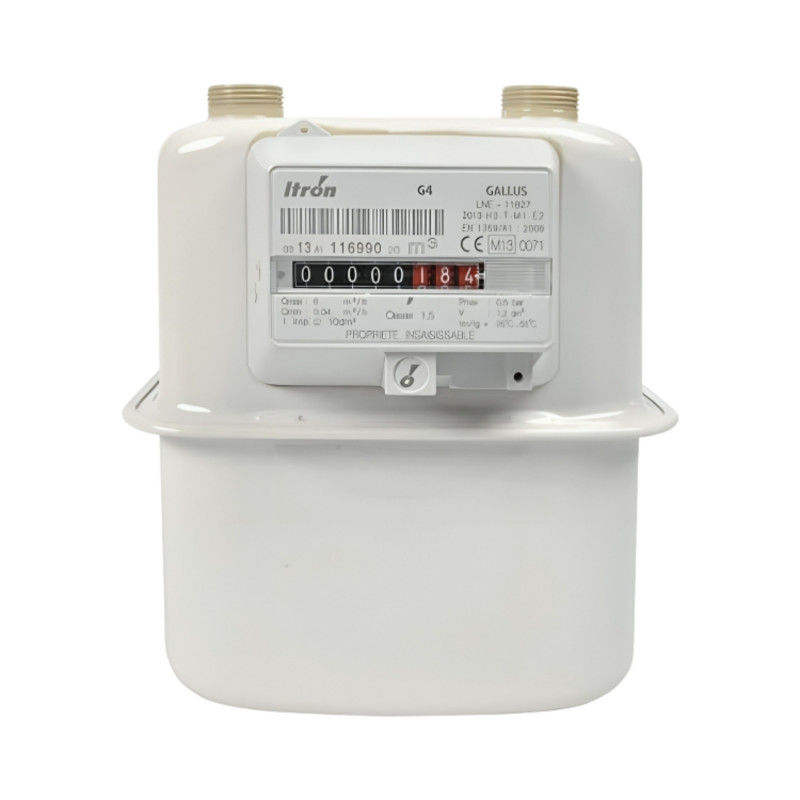

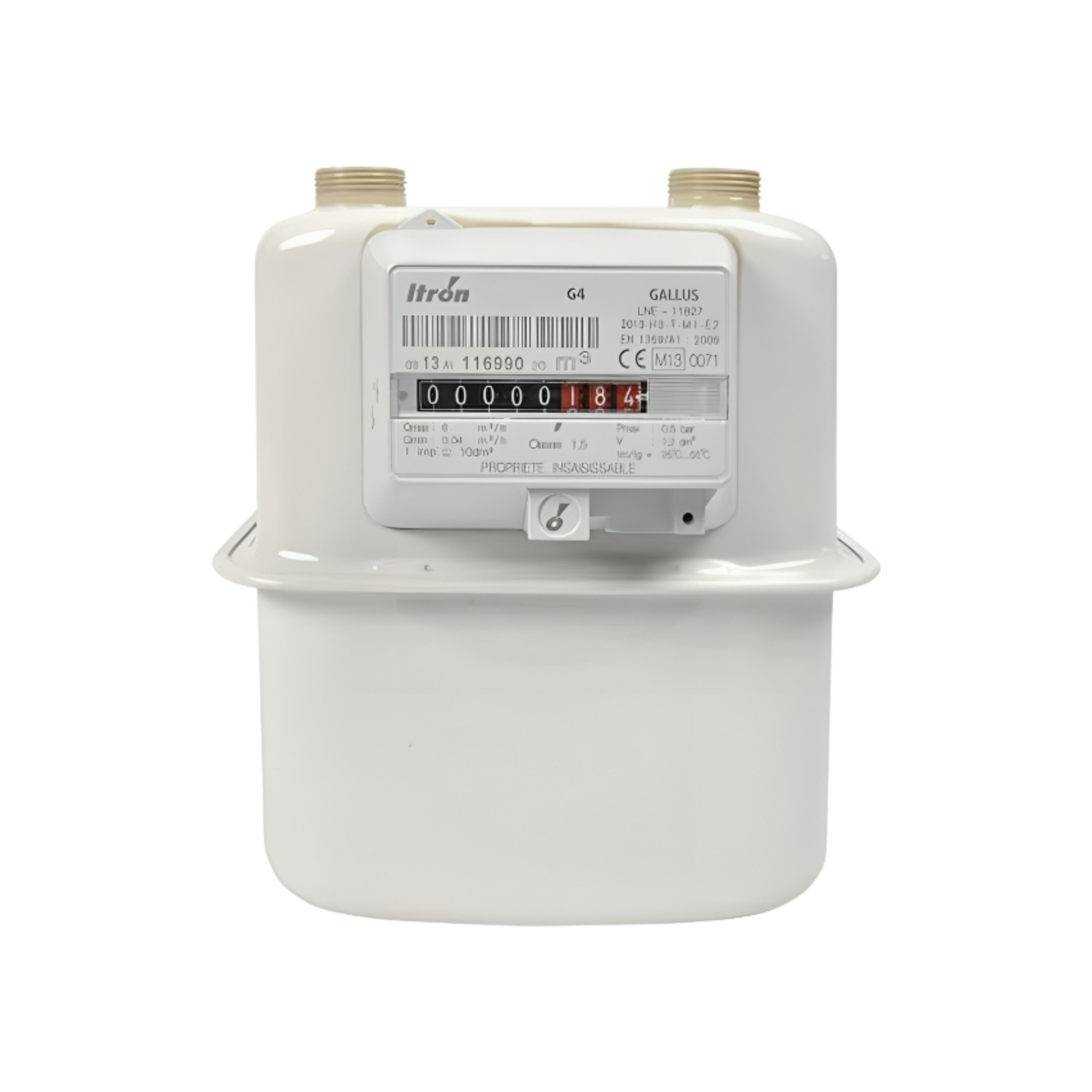

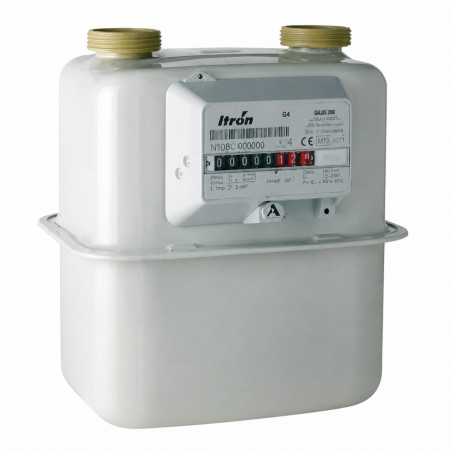

Domestic gas meter G4 low pressure 6 m³/h DN20 CEE

Domestic Gas Meter G4, 6 m³/h, DN20, Low Pressure CEE

The domestic gas meter G4 is specially designed to accurately measure natural gas consumption in individual or collective homes. Equipped with a deformable wall mechanism and a mobile membrane, it effectively transforms the flow into a reliable mechanical totalization. This compact and robust model is CEE certified and offers excellent metrological stability.

With its reduced size, it is suitable for low pressure, up to 500 mbar, and guarantees consistent performance for a maximum flow rate of 6 m³/h. It is pre-equipped with a BF pulse generator for potential remote reading and connects via a DN20.

Technical Specifications

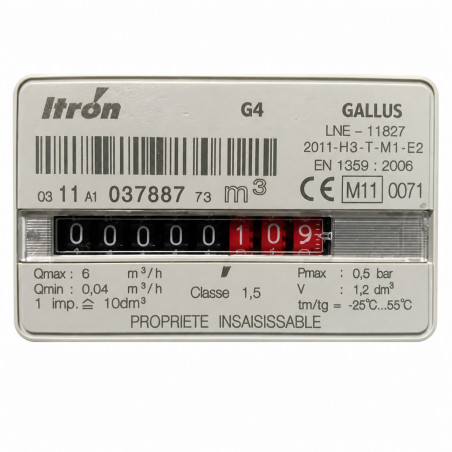

• Type: GALLUS 2000 G4
• Maximum flow rate: 6 m³/h
• Maximum pressure: 500 mbar
• Nominal diameter (DN): 20 mm
• Dimensions (L x H x D): 199 x 220 x 162 mm
• Center distance: 110 mm
• Measurement type: Deformable walls with mobile membrane
• Pre-equipped BF pulse output (standard)
• CEE certified
• Performance stability and robustness
• Waterproof casing
• Measurement range: G1.6 / G2.5 / G4
• Packaging: 1
• Warranty: 2 years
• Height (cm): 16.2
• Length (cm): 19.9
• Origin: made in Europe
• Weight (kg): 3.6
• Manufacturer: Gurtner
• Manufacturer reference: 19144
• Application: Natural gas, low pressure
• Connection: DN20
• Package contents: Gas meter G4 (sold individually)
