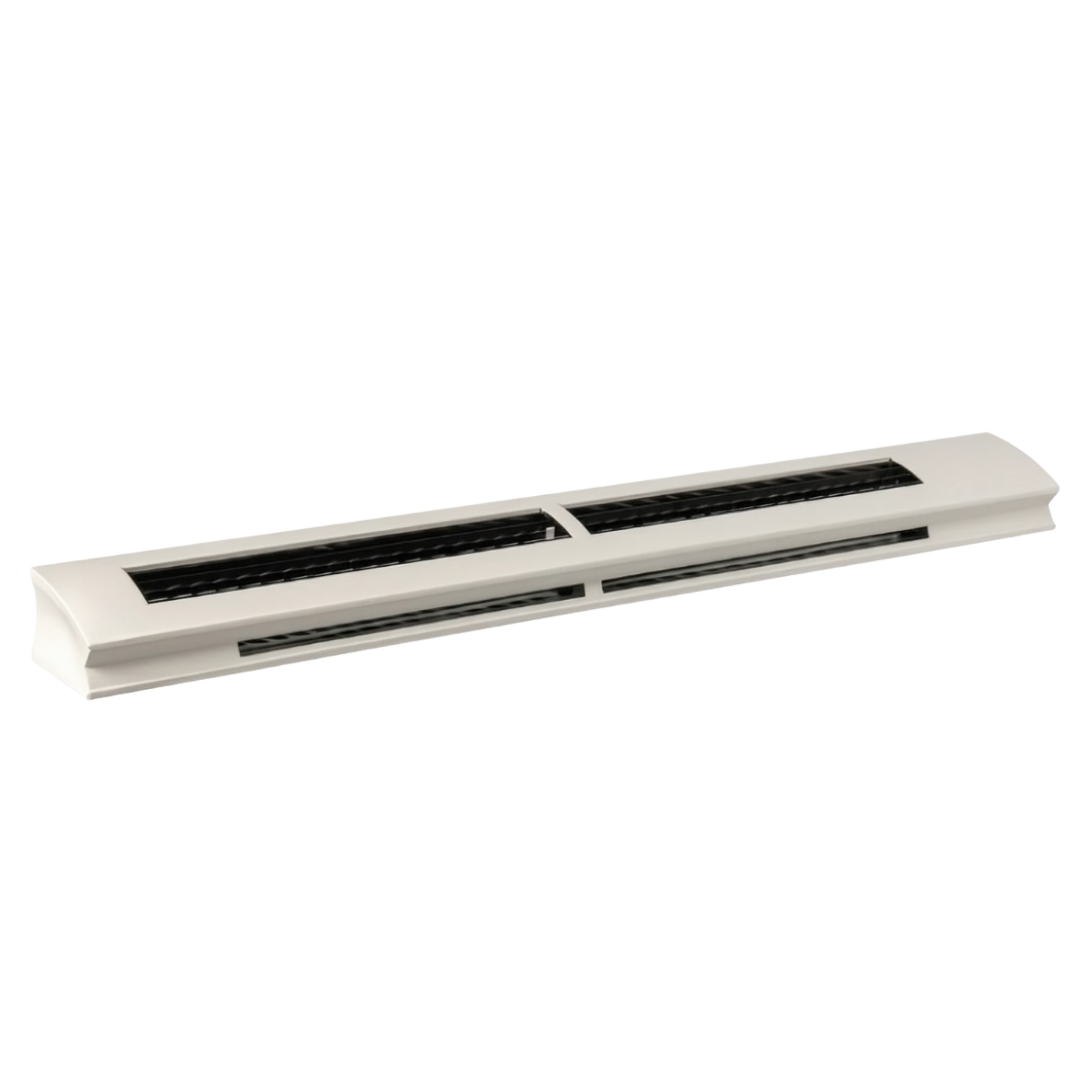

Hygro-regulated air inlet EHL L 6-44 m³/h, 39 dB, 47x419x71 mm, white, acoustic base
€57.60
Tax Included
(48.00 € HT)
Référence Aldes : 11014066
Emplacement magasin : B1-D-072
Air inlet Aldes 11014066 The hygro-regulable air inlet EHL L from the brand Aldes is a device designed to supply the home with fresh air. With dimensions of 47x419x71 mm and a weight of 0.35 kg, it offers a flow rate of 6-44 m³/h and an acoustic insulation of 39 dB. Ideal for joinery, it features an acoustic base and is manufactured in Europe.
Safety guarantees
Delivery policy
Returns policy
Acoustic hygro-regulable air inlet ALDES EHL L 6-44 m³/h, 39 dB, 47x419x71 mm, white, acoustic base
The hygro-regulable air inlet EHL L with acoustic base is an air inlet for joinery from the brand ALDES. It allows the home to be supplied with fresh air from a slot in the joinery and an awning on the outside.
The EHL model ensures the supply of fresh air and the distribution of incoming flows into the home based on humidity levels. It is an acoustic hygro-regulable air inlet with a flow rate of 6-44 m³/h and an acoustic insulation of 39 dB.
This air inlet is fixed on a double slot mortise 2 x (172 x 12) mm. It should only be installed in main rooms, inside the home, in the upper part of windows or on the roller shutter box, with an airflow directed towards the ceiling.
- Product type: Hygro-regulable air inlet
- Brand: ALDES
- Model: EHL L
- Reference: 11014066
- Flow rate: 6-44 m³/h
- Acoustic insulation: 39 dB
- Acoustic attenuation: up to 42 dB
- Configuration: acoustic base
- Function: supplies the home with fresh air from a slot in the joinery and an awning on the outside, ensures the supply of fresh air and the distribution of incoming flows into the home based on humidity levels
- Feature: adapts its flow based on the occupancy of the home, airflow directed towards the ceiling, no visible fixing screws
- Type: acoustic hygro-regulable air inlet for joinery
- Application area: Collective and individual residential housing, New and Renovation
- Implementation: Fixing on double slot mortise: 2 x (172 x 12) mm
- Installation: must be mounted only in main rooms: bedrooms, living room, lounge
- Positioning: must be positioned inside the home, in the upper part of windows or on the roller shutter box
- Airflow orientation: the incoming airflow must be oriented and directed towards the ceiling
- Installation: installs on a double slot 2 x (172 x 12) mm
- Delivered with: standard awning
- Packaging: Kit EA: air inlet EA supplied with standard awning
- Description: Hygro-regulable air inlet with standard base

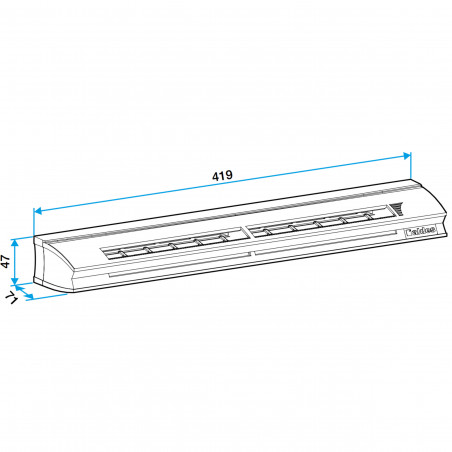

- Dimensions: 47x419x71 mm
- Color: white
- Regulations & compliance(s): Identification No. QB37: 05/02-CHY1-2267;05/02-CHY1-2266, Technical notice No.: 14.5/17-2266;14.5/17-2267
- Manufacturer: ALDES
- Reference: 11014066
2 Items
Data sheet
- Length (cm):
- 41.9
- Width (cm):
- 7.1
- Height (cm):
- 4.7
- Main color :
- White
- Weight (kg) :
- 0.35
- Packaging:
- 1
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3542280140665
- EAN-13
- 3542280140665
- Location
- B1-D-072
- Reference to display
- ALDEN11014066
- Supplier reference
- 11014066
