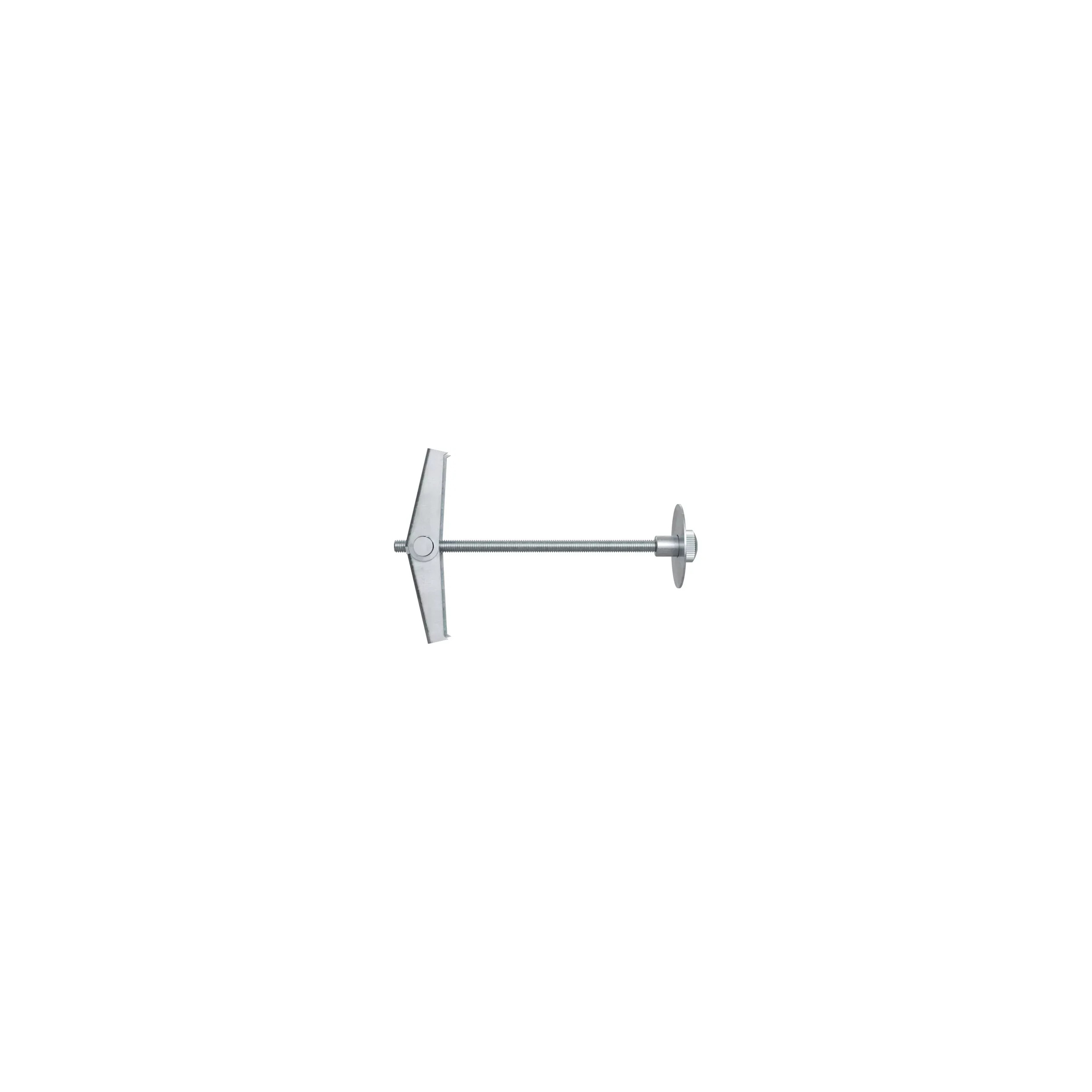

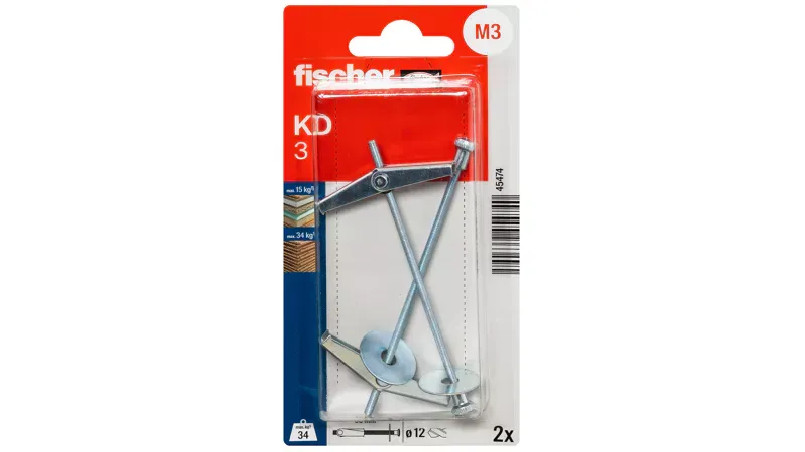

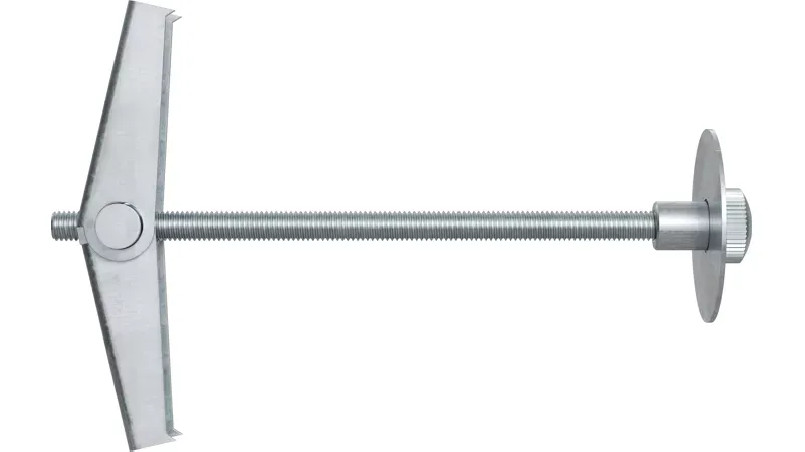

Toggle dowel KD 3 K, 2 pieces

Toggle dowel KD 3 K, 2 pieces FISCHER part no. 45474

KD spring plugs can be used to fasten lightweight components such as frames, lamps and light shelves in gypsum board, fiberboard, chipboard, terracotta slabs and concrete.

The dowel is inserted into the borehole and opens automatically behind the panel.

No special installation tools are required, for fast, convenient installation.

Features

High strength thanks to good load distribution on load-bearing elements.

Easy assembly thanks to automatic opening of the spring element.

High flexibility thanks to long threaded shank.

Can be used for different panel thicknesses and fasteners.

Suitable for standby installation.

Sold by 2 pieces.

Benefits

The long threaded rod can be used for different panel thicknesses and thick fasteners.

The tilting element opens automatically behind the panel for easy installation.

No special tools required for installation.

Applications

Executives.

Lamps.

Lightweight wall shelves.

Towel rack.

Bathroom cabinets.

Lightweight suspended cabinets.

Cable and pipe clamps.

Plasterboard and fiberboard.

Brick and concrete floor slabs.

Chipboard panels.

Plywood.

How it works

Toggle and spring-loaded dowels are suitable for in-wall installation.

Once placed in the borehole, the toggle and spring-loaded anchor support elements open automatically behind the panel.

No special installation tools are required, for fast, convenient installation.

Dimensions

Nominal drill diameter: 12 mm.

Maximum plate thickness: 65 mm.

Minimum cavity dimension: 27 mm.

Pin length: 95 mm.

Thread: M3 x 90 mm.
