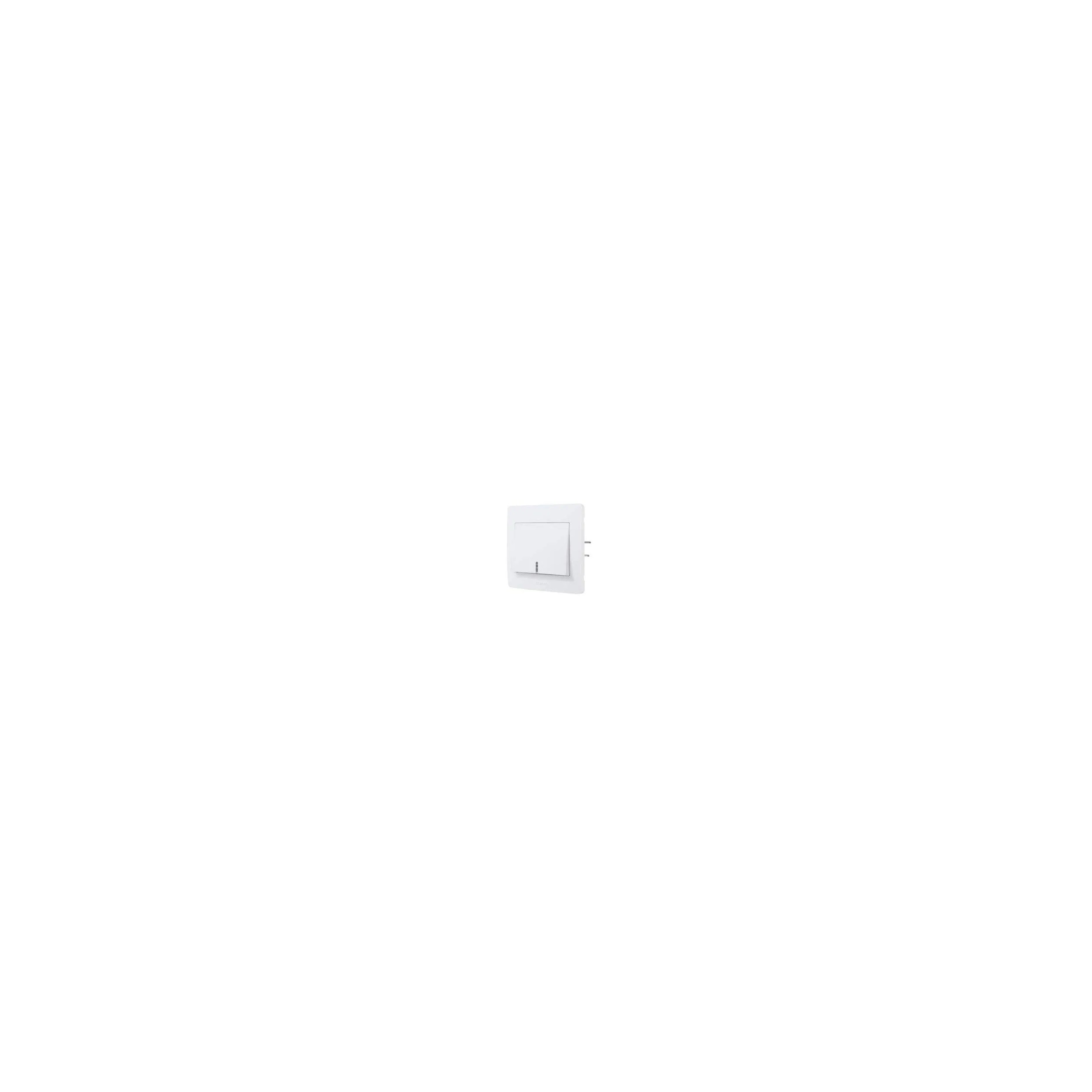

On/off switch with white Diam2 indicator

GENERAL DESCRIPTION

DIAM2 Commercial Range

Number of positions ( H-V ) 1

Full designation for COMING AND GOING WITH WHITE LIGHT UNDER FILM

Installation of the ENCASTRE System

MAIN CHARACTERISTICS

Device function

Product overview ON/OFF switch function with automatic terminals and indicator light

Composition MECHANISM/PLATE/HOUSE

Number of Terminals 3

Fixing method screws or claws

Film package

Claws Yes

Paint cover No

Matte finish

Color WHITE

TECHNICAL DATA

Net Unit Weight ( g ) 56

Depth Built-in 23

Dimensions L x W x D (mm) 85x82x37

RAL/Pantone RAL 000 90 00

Materials ABS/ABS/PC

Terminal cross-section / capacity 1.5mm².

Stripping L (mm) 9mm

Philips screw head n°3

Type of terminals AUTO TERMINALS

Number of keys 1

Compatible Box Depth 40 mm

ENVIRONMENTAL FEATURES

Operating temperature (°C) 5 => 35°C

IP20 sealing level

Shock resistance IK02

Incandescent wire resistance (°C) yes

Fire resistance 650°C

Nominalcurrent (I) 10A

Nominal voltage (V) 250V - 50Hz

Nominal power (W) 2200

Lifetime (no. of cycles) 20000

Dielectric strength 2000 V

UV resistance yes

Storage temperature -5 => 50°C

STANDARDS, APPROVALS & CONTRACTS

2 year warranty

CE certification YES

NF Certification YES

Reference standard NF EN 60669
