GENERAL DESCRIPTION

CASUAL CommercialRange

Number of stations (H-V ) 1

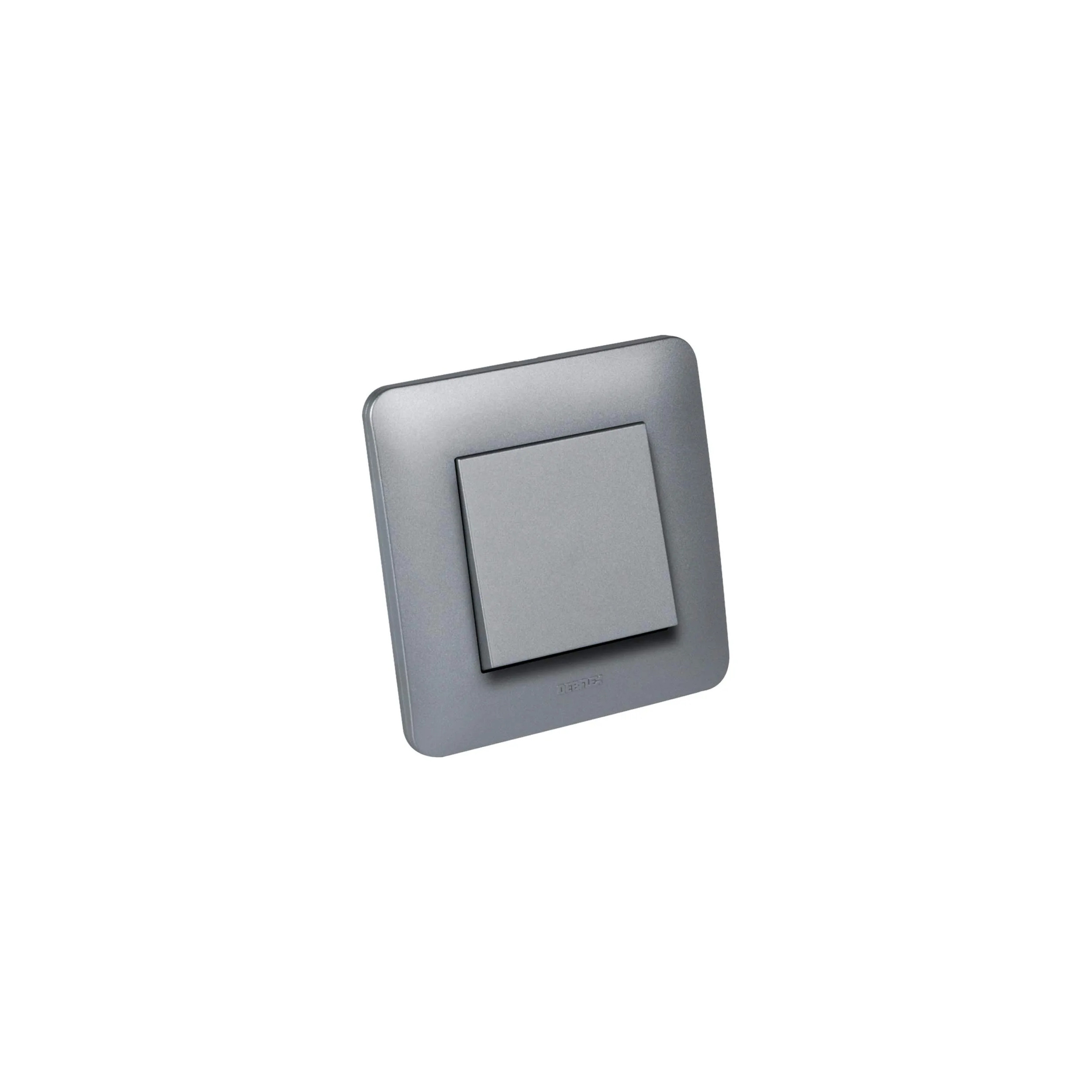

Designationcomplete CASUAL COMPLETE INTER VA ET VIENT ALU

Mounting of the ENCASTRE system

MAIN CHARACTERISTICS

Function VV

Composition Mechanism with function cover + metal support

Number of terminals 3

Type of screw fastening

Flow pack

Claws NO

Painting cover NO

Shiny finish

Color Alu

TECHNICAL DATA

Net Unit Weight (g) 104.3

Dimensions L x W x D(mm) 48x48x41

RAL/Pantone Alu

PC/ABS materials

Diameter Ø67 mm

Cross-section / capacity of the terminals 1.5mm².

StrippingL(mm) 9

Type of horns Auto

DepthCompatibleBox 40

ENVIRONMENTAL FEATURES

T°Functioning(°C) -5°C to 50°C

IP20 sealing level

Glow wire temperature (°C) 850°C

Fire Suit Yes

NominalCurrent(I) 10A

Nominal voltage(V) 250V

Lifetime(nbcycles) 20,000 cycles

UV resistance Yes

Storage temperature -5 to 50°C

STANDARDS, APPROVALS & CONTRACTS

2 year warranty

CertificationCE YES

CertificationNF YES

Reference standard NF EN 60669

ROHS Compliant
