GENERAL DESCRIPTION

Commercial Range BLOK

Number of Positions (H-V) 1

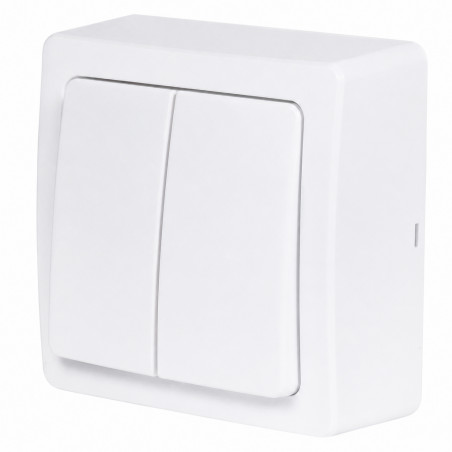

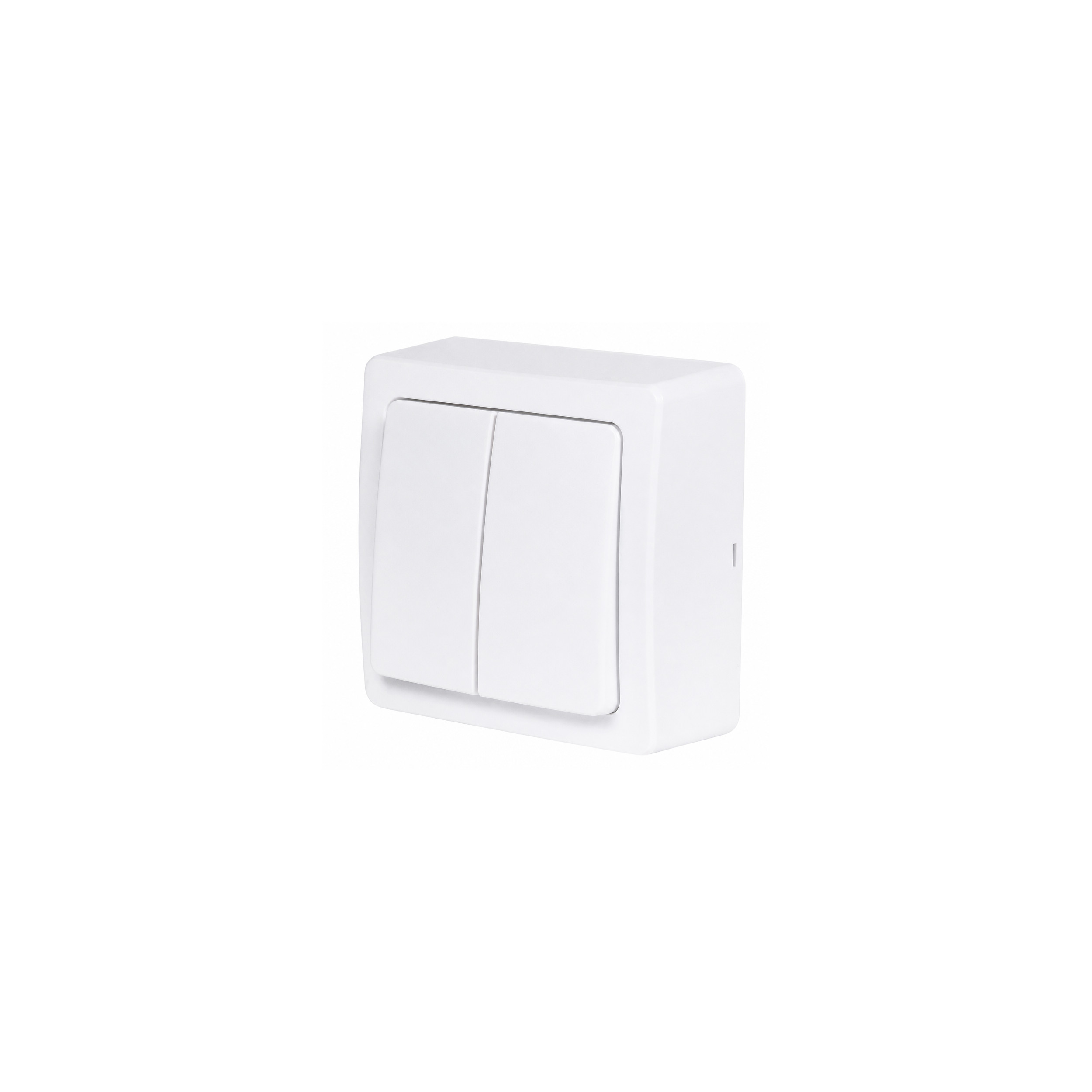

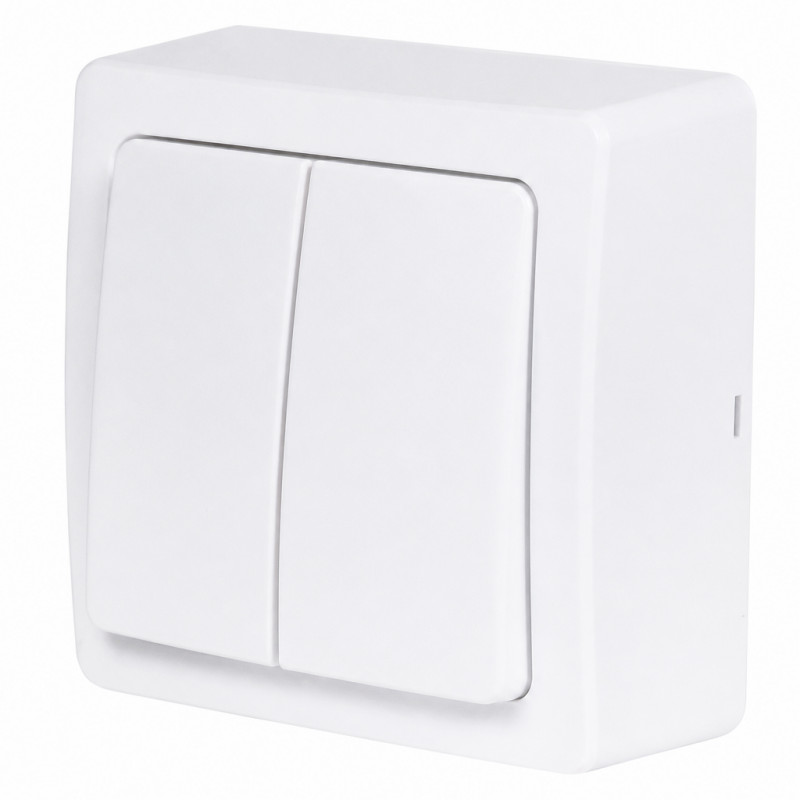

Complete Designation Double Surface-Mounted Switch

System Mounting surface-mounted

MAIN CHARACTERISTICS

Function Surface-Mounted Equipment

Product Presentation Double Switch On/Off Function

Number of Terminals 6 Automatic Terminals

Fixing Mode by screws

Packaging under film

Claws NO

Paint Cover NO

Finish Matte

Color White

TECHNICAL CHARACTERISTICS

Net Unit Weight (g) 56.8

Dimensions L x W x D (mm) 70x70x33.5

RAL/Pantone White

Materials ABS

Terminal Section / Capacity 1.5mm²

Stripping Length (mm) 11

Type of Terminals Auto

Number of Buttons 2

ENVIRONMENTAL CHARACTERISTICS

Operating Temperature (°C) -5°C to 50°C

Sealing Level IP20

Shock Resistance IK02

Incandescent Wire Resistance (°C) 650°C

Fire Resistance Yes

Nominal Current (I) 10A

Nominal Voltage (V) 250V

Lifespan (number of cycles) 20,000 cycles

UV Resistance Yes

Storage Temperature -5 to 50°C

STANDARDS, APPROVALS & CONTRACTUAL

Warranty 2 years

CE Certification YES

NF Certification YES

Reference Standard NF EN 60669-1

ROHS Compliant
