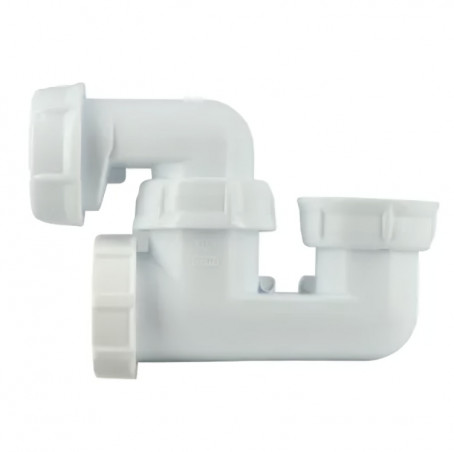

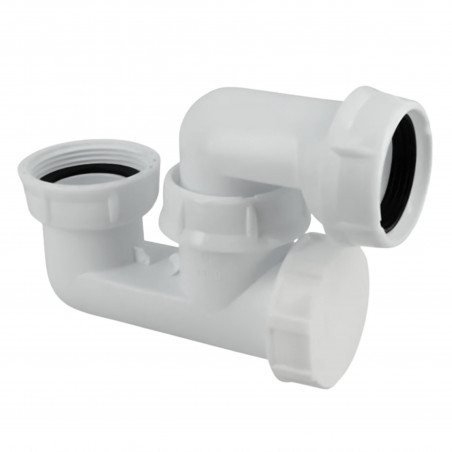

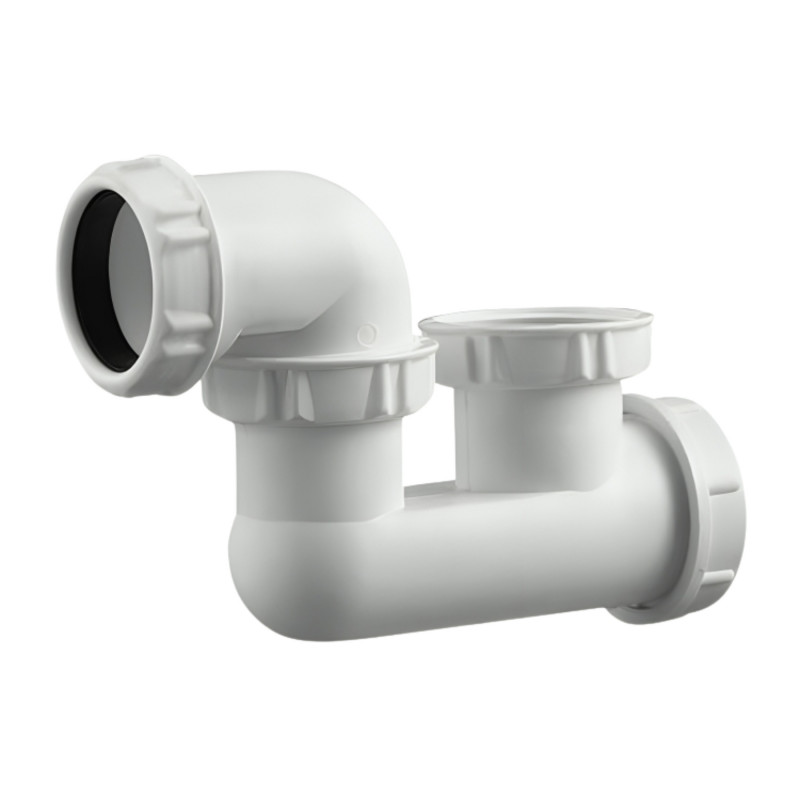

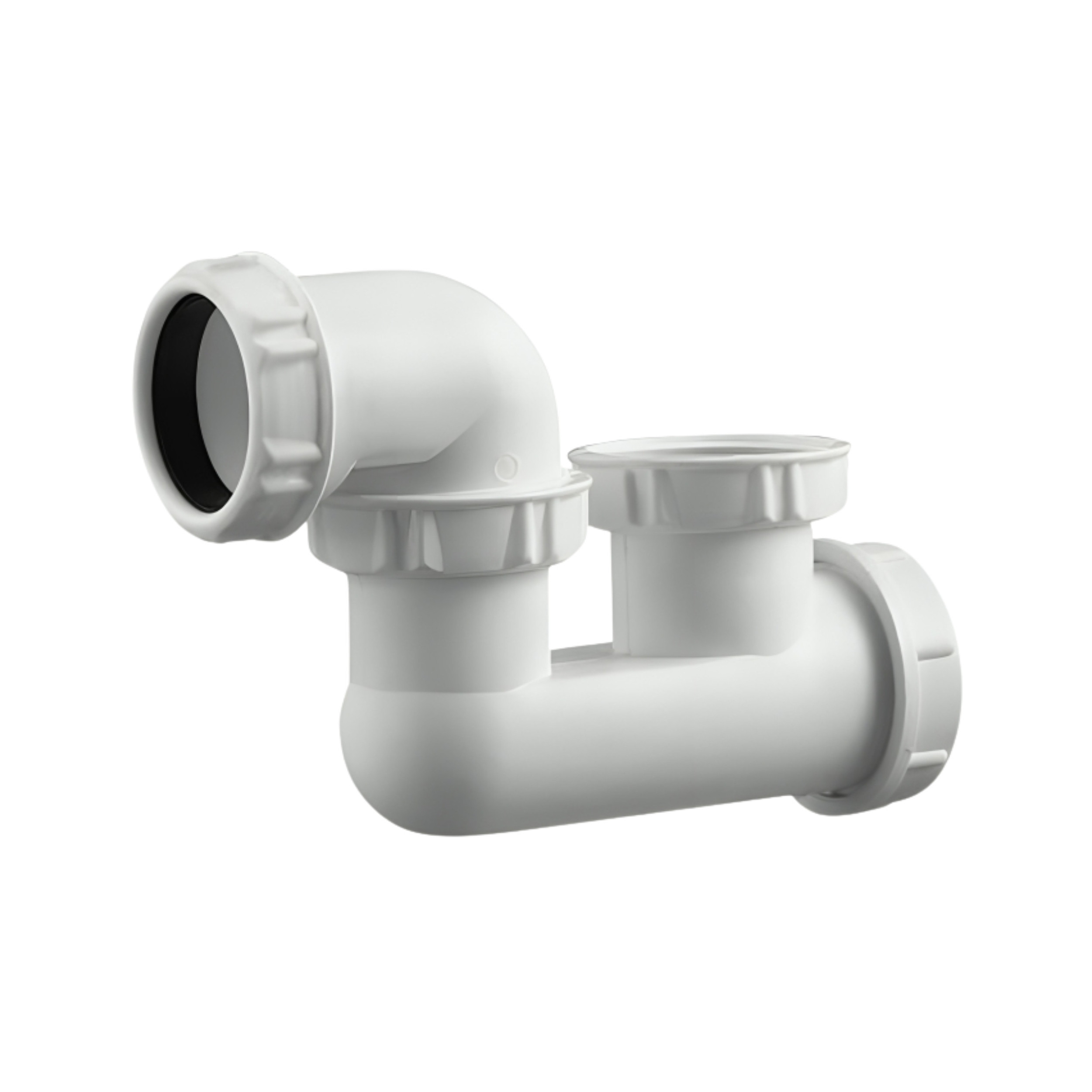

Swivel bath trap, horizontal outlet 40 mm, inspection plug, NF EN 274
€10.55
Tax Included
(8.79 €HT + Ecotaxe €0.01HT)
Référence NICOLL : 204
Emplacement magasin : A3-D-091
NICOLL SAS204 swivel bath trap Swivel bath trap with 40 mm horizontal outlet, with inspection plug for easy maintenance. Complies with NF EN 274 standard for optimum safety. Ideal for efficient installation and trouble-free drainage.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Product type:
Bath trap with horizontal outlet 40 mm
Description:
The "P" siphon for horizontal bathtubs, equipped with an inspection plug, is designed to effectively prevent rising odors while ensuring optimal drainage. Its 360° swivel makes it easy to install and adapt to all types of configurations. Manufactured in white polypropylene, this compact siphon features a 50 mm headroom and a high flow rate of 55 l/min at 300 mm head. Compliant with standard NF EN 274, it guarantees reliability and hygiene for all sanitary installations.
Technical specifications:
- Shape: 360° swiveling "P" trap
- Outlet: Horizontal 40 mm
- Inlet: G1"1/2 thread
- Overall height: 105 mm
- Center distance: 120 mm
- Depth of seal: 50 mm
- Integrated inspection plug
- Flow rate: 55 l/min at 300 mm water head
- Material: Polypropylene
- Color: White
- Standard: NF EN 274, label NF077
- Sales code: 204
Supplier: NICOLL
Catalogue number: 204
Data sheet
- Main color :
- White
- Weight (kg) :
- 0.1
- Packaging:
- 1
- Nominal diameter (DN in mm) :
- 40
- Threads :
- 1"1/2 (40x49)
- Main materials :
- PVC
Polypropylene - Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3389700002895
- EAN-13
- 3389700002895
- Location
- A3-D-091
- Reference to display
- SAS204
- Supplier reference
- 204
