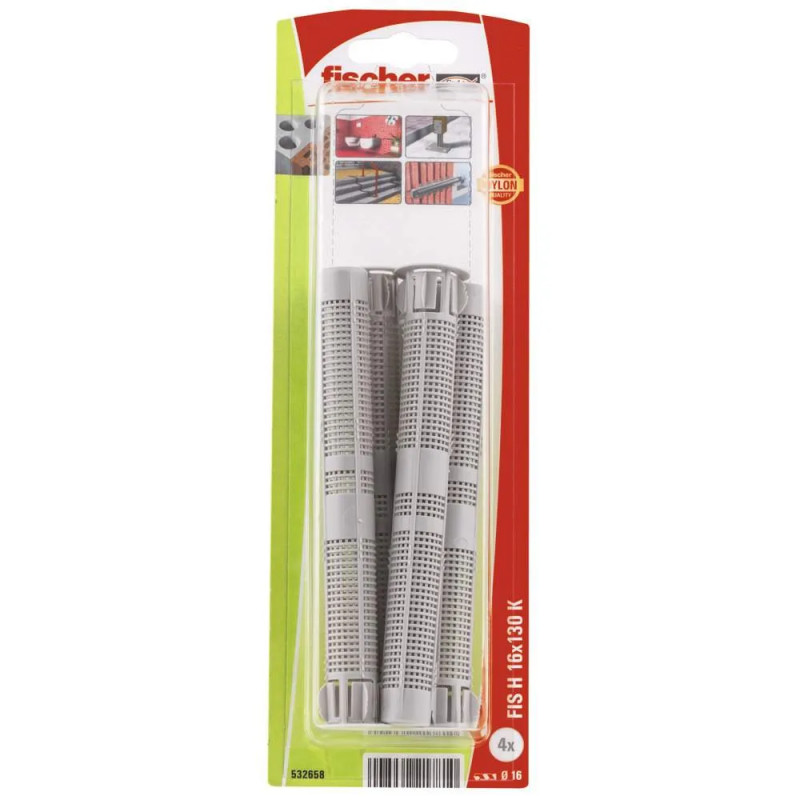

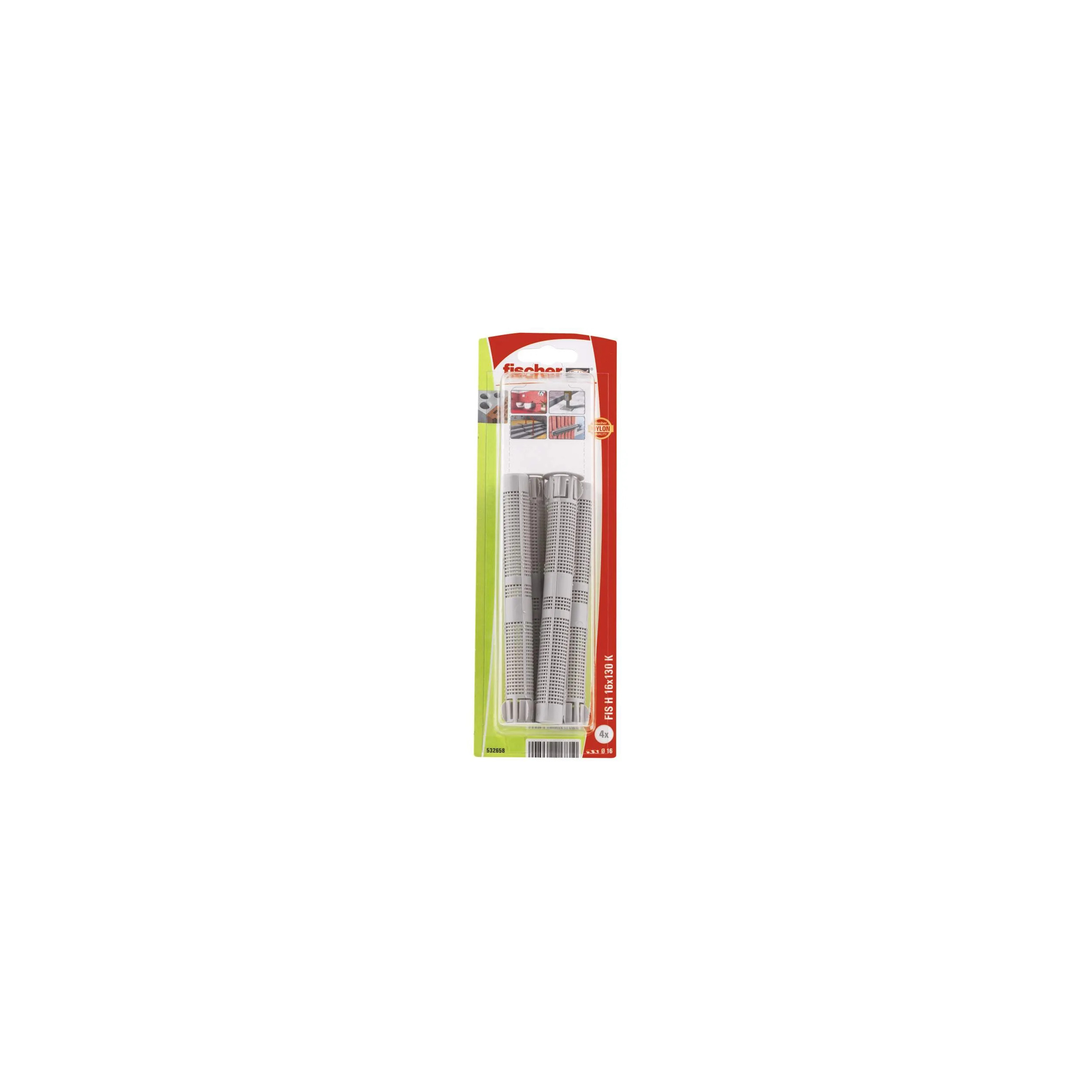

Injection sieve 16 x 130 mm, 4 pieces

The FIS H K plastic injection sieve is the component of the system for using Fischer resins in hollow masonry. The sieve is inserted into the borehole and filled with resin from the bottom. When installing the threaded rod or the threaded socket, the resin is compressed through the mesh structure of the sieve and creates a form-locking connection in the hollow brick. The load is thus transferred into the building material. With the injection sieve, it is also possible to pass through non-load-bearing layers.

Main features

• The mesh structure of the sieve reduces resin consumption.
• The sieve allows for optimal form-locking in the hollow brick.
• The guide fins secure threaded rods of different diameters. This reduces complexity and storage.
• Barb fittings: no slipping during ceiling installations.
• ATE - European Technical Approval.

Advantages

• The mesh structure of the FIS H K sieve is suitable for FIS V, FIS HT II, FIS GREEN or FIS Plus resins and ensures economical resin consumption with optimal form-locking.
• The guide fins perfectly center the anchor in the sieve and allow the use of threaded rods of different diameters.
• The barbs firmly hold the sieve in the borehole, allowing for problem-free ceiling installation.
• The geometry of the sieve allows for passing through non-load-bearing layers for practical and simple installation.
