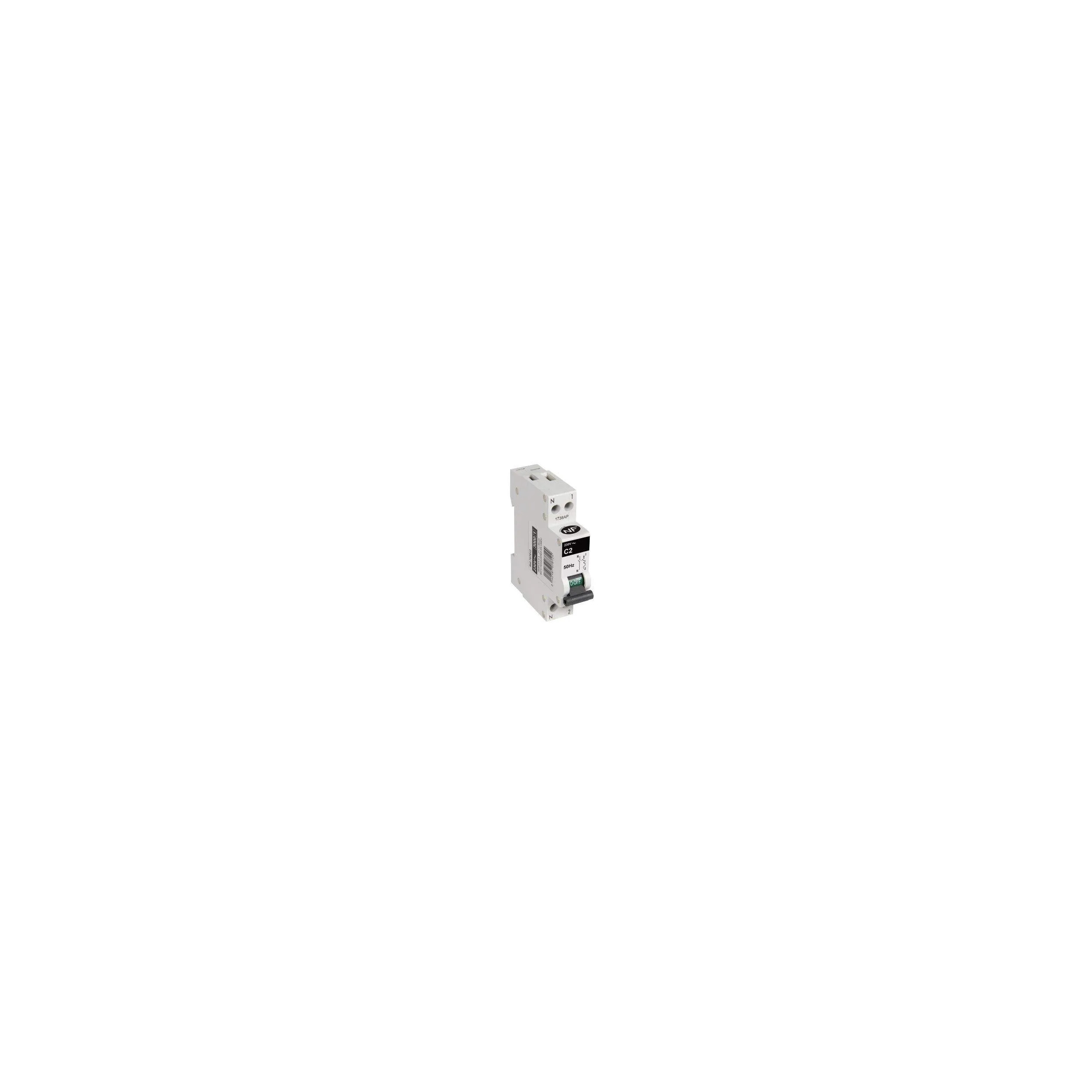

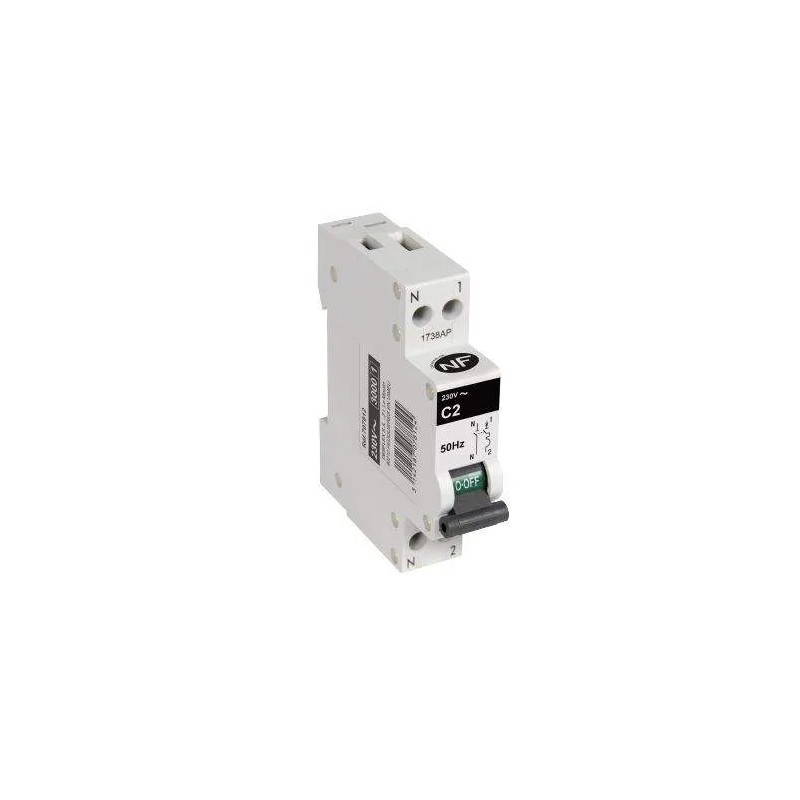

Circuit breaker 3kA Phase+Neutral 2 Ampere

CIRCUIT BREAKER 3KA DEBFLEX 1 MODULE

This 2A, curve C circuit breaker from Debflex is ideal for protecting the circuit of an electric heater. This device directly cuts the circuit in case of overload or short-circuit in an electrical installation. It is equipped with a handle that allows the circuit to be switched on or off manually in the event of repairs or malfunctions. This circuit breaker can be installed in an electrical panel and can also be mounted on a DIN rail.

Product advantages :

• Equipped with a magnetothermal release
• Allows to protect a circuit of an electric radiator
• Equipped with a lever to manually cut or set the circuit

General Description:

• Commercial range: MODULAR PROTECTION
• Function: Circuit breaker
• Full designation: Circuit breaker Ph+N 2A
• Rail System Mounting: DIN
• Color: White

Technical specifications:

• Rated operating voltage Ue : (V) 230V
• Ratedcurrent In: (A) 2A
• Rated frequency : (Hz) 50Hz
• Type of current : Alternating current
• Total number of poles: 2
• Number of protected poles: 1
• Rated insulation voltage Ui : (V) 400V
• Rated impulse withstand voltage Uimp: (V) 4000V
• Instantaneous trip characteristic C
• Reference calibration temperature : (°C) 30°C
• Rated differential breaking capacity: 3000A
• Rated short circuitcurrent: 3000A
• Breaking capacity of a single pole: 3000A
• Triggering mode: Magnetothermal
• Energy limitation class (I²t): 1 Grid distance (short circuit test): 55mm
• Type of protection against external influences: Closed
• Type of terminals: Screw
• Diameter of the terminal screws 4mm
• Material of the terminals: Zinc-plated steel
• Wiring plan : Yes

Environmental characteristics :

• Operating temperature (°C) : -5°C to 50°C
• Waterproofing level: IP20
• Shock resistance: 850°C
• Fire resistance : Yes
• UV resistance: Yes
• Storage temperature 25°c

Standards, approvals and contracts:

• Warranty: 2 years
• CE certification : Yes
• NF certification : Yes
• Reference standard: EN 60898
• ROHS : Compliant
