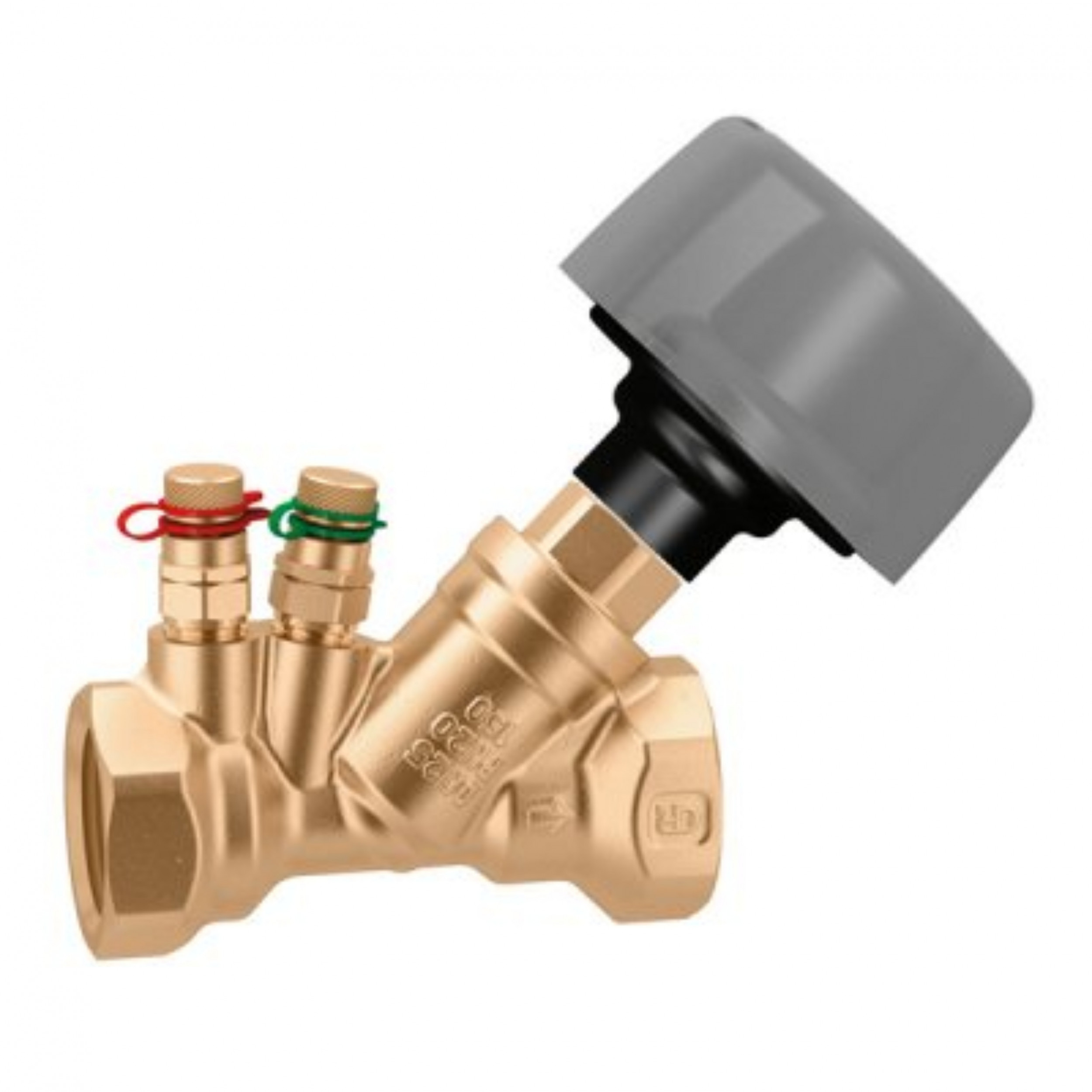

3/4" manual balancing valve with flowmeter Caleffi brass PN16
€80.80
Tax Included
(67.33 € HT)
Référence Caleffi : 130500
Emplacement magasin :
FF 3/4" brass body manual balancing valve - 16 bar max Espectatorium THRVA130500 Brass body manual balancing valve, ideal for regulating water flow in heating and air-conditioning systems. Designed to withstand a maximum pressure of 16 bar, it offers exceptional durability and reliability. Its 3/4" size makes installation quick and easy.
Safety guarantees
Delivery policy
Returns policy
3/4" manual balancing valve with flowmeter Caleffi Thermador brass PN16 ref. CW602N
The Caleffi Thermador 3/4" manual balancing valve enables precise adjustment of heat transfer fluid flow in heating and cooling circuits. Its stainless steel obturator and graduated handle facilitate setting and immediate flow control. Equipped with a direct-reading flowmeter operating on the Venturi principle, it guarantees high measurement accuracy (±10%). Made from CW602N brass, it offers high mechanical resistance, excellent reliability and silent operation. Compatible with liquids and glycol solutions up to 50%, this valve withstands pressures up to 16 bar and operating temperatures from -20°C to +120°C.
- Type: Manual balancing valve with flowmeter
- Application: Heating and cooling circuits
- Nominal diameter: 3/4" (20)
- Connection: BSPT female thread (gas cylindrical)
- Maximum working pressure: 16 bar
- Body material: Brass CuZn36Pb2As (CW602N)
- Obturator: Stainless steel
- Measuring principle: Venturi
- KVS value: 4.46
- Compatible fluids: Liquids, glycol water (max 50%)
- Operating temperature: -20°C to +120°C
- Length: 82 mm
- Height: 104 mm
- Flow reading: l/min, accuracy ±10%
- Conformity: CE
- Manufacturer Caleffi Thermador
Find the whole range on Caleffi
2 Items
Data sheet
- Length (cm):
- 8.2
- Height (cm):
- 10.4
- Nominal diameter (DN in mm) :
- DN20
- Connection type :
- F-F
- Main materials :
- Brass
- Pressure (bar) :
- 16
- Origin:
- Italy
- Fastening method :
- Screw-on
Specific References
- EAN13
- 8016615001365
- EAN-13
- 8016615001365
- Location
- Reference to display
- THRVA130500
- Supplier reference
- 130500
