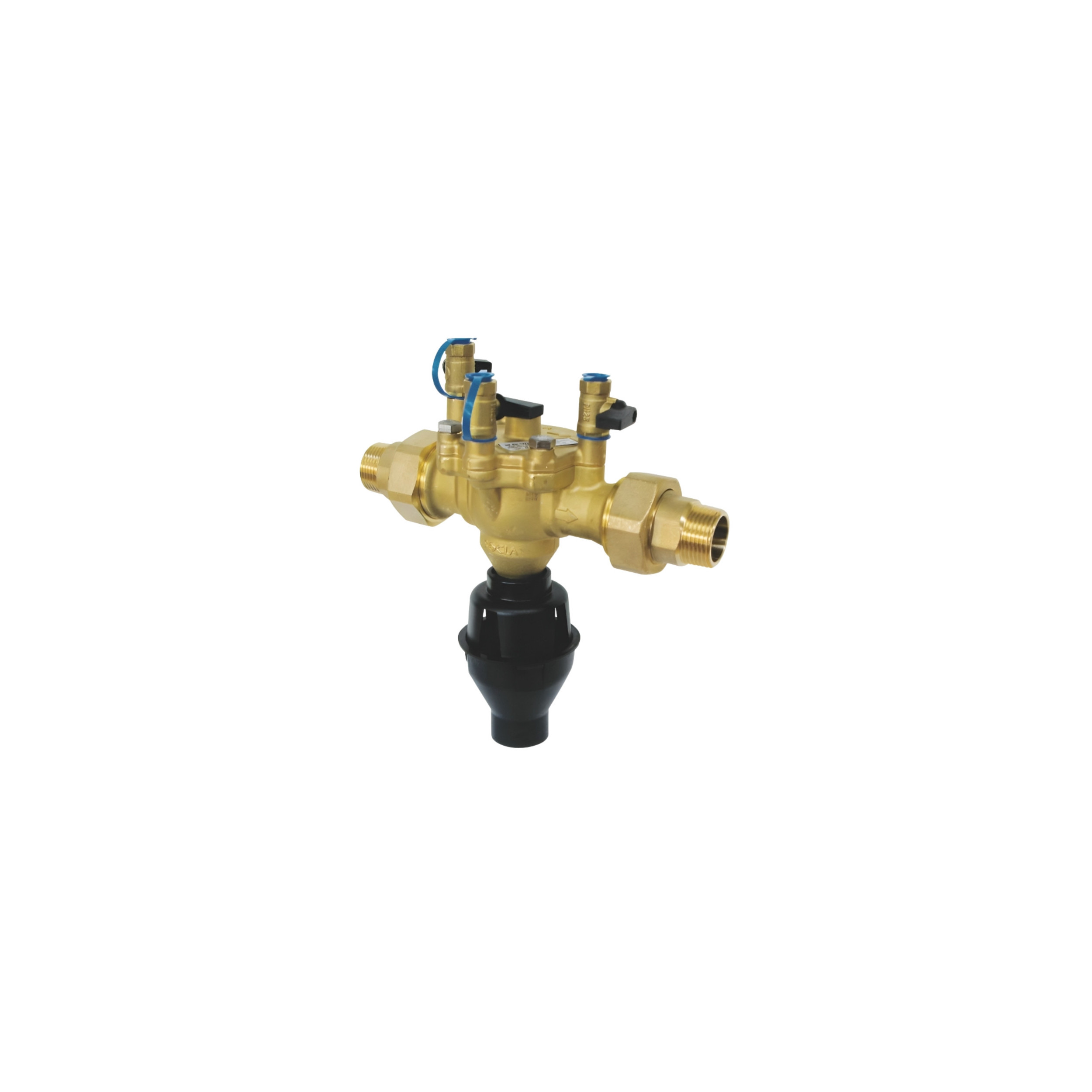

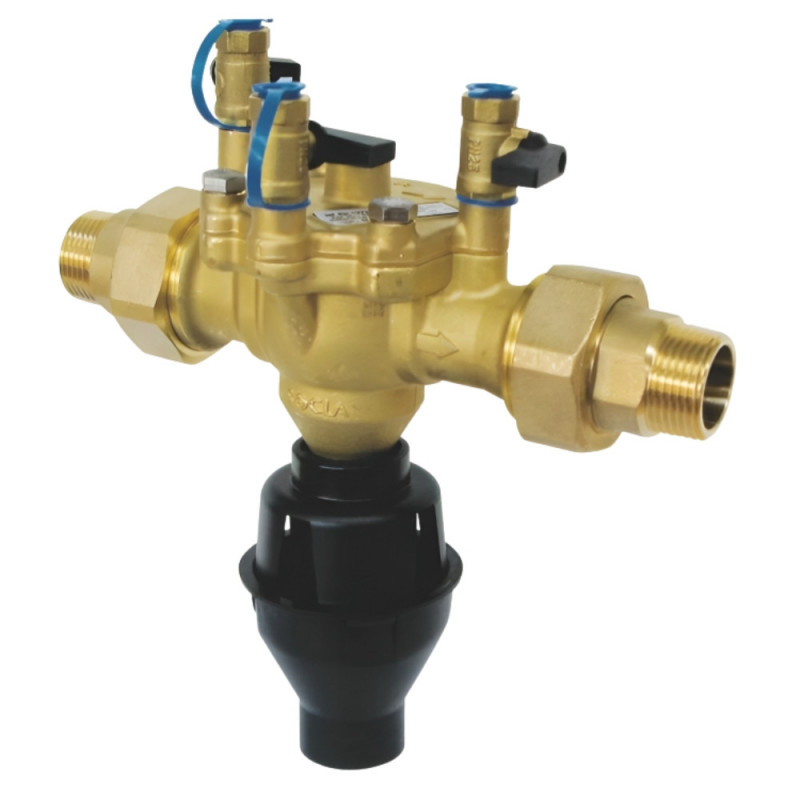

BA 2860 2" male DN50 backflow preventer with controllable reduced pressure zone
€1,383.52
Tax Included
(1152.93 € HT)
Référence Danfoss Socla : 149B3885
Emplacement magasin :
BA 2860 2 male DN50 controllable backflow preventer Danfoss Socla 149B3885 Backflow preventer for drinking water systems BA 2860 2 male DN50 backflow preventer from Danfoss Socla, ideal for drinking water systems. Controllable reduced pressure zone for optimum performance. Safety and reliability guaranteed with this top-of-the-range product. Complies with the most stringent quality and hygiene standards.
Safety guarantees
Delivery policy
Returns policy
BA 2860 2" male backflow preventer DN50 with controllable reduced pressure zone
The BA 2860 DN50 backflow preventer is a certified anti-pollution safety device designed to protect drinking water networks against backflow of polluted water (category 4 according to NF EN 1717). This controllable reduced-pressure zone model features three independent pressure zones (upstream, intermediate, downstream) separated by two check valves, as well as an atmospheric discharge device. Its ultra-compact design in brass and technical materials guarantees high reliability and easy maintenance.
With its 2" male/male DN50 thread and integrated funnel, it is particularly well suited to industrial or tertiary installations requiring a high level of hydraulic safety. It must be installed in an accessible, non-floodable and ventilated environment, with shut-off valves and filters recommended upstream and downstream.
- Type: Controllable reduced-pressure zone backflow preventer
- Standard: NF EN 1717 - risk category 4
- Inlet/Outlet: Male 2" (50x60 mm)
- Nominal diameter: DN50
- Maximum pressure: 10 bar
- Maximum temperature: 65°C
- Atmospheric discharge: Yes, with built-in funnel
- Materials - Body / Bonnet / Sleeve / Nuts : Brass
- Valves: PPO or PPA
- Gaskets : EPDM
- Springs: Stainless steel

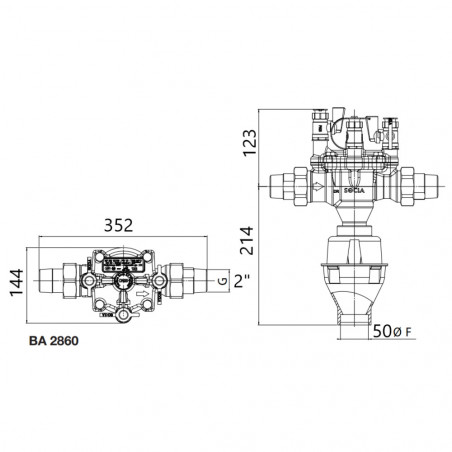

- Width: 352 mm
- Height: 337 mm
- Depth: 144 mm
- Net weight: 8.19 kg
- Customs code: 84818099
- Installation required: Upstream shut-off valve and filter, downstream shut-off valve
- Manufacturer : Not specified
- Reference : 149B3885
Find the whole range on ESPINOSA
Data sheet
- Length (cm):
- 33,7
- Width (cm):
- 14,4
- Height (cm):
- 33,7
- Weight (kg) :
- 8.19
- Nominal diameter (DN in mm) :
- 50
- Threads :
- 2" (50x60)
- Connection type :
- M-M
- Main materials :
- Brass
Specific References
- EAN13
- 3660770644612
- EAN-13
- 3660770644612
- Location
- Reference to display
- COCDI149B3885
- Supplier reference
- 149B3885
