Electronic circulation pump EVOSTA 2 40-70/180, centre distance 180 mm, 50x60
Thermador EVA24070180X
Domestic circulation pumps Thermador. Electronic circulation pump EVOSTA 2 40-70/180, centre distance 180 mm, 50x60 reference EVA24070180X.
Pour particuliers, professionnels, administrations, collectivités, Mairies, CHU, etc...pour les Administrations et Collectivités.
(après création et validation de votre compte)
Basée sur 0 avis clients.

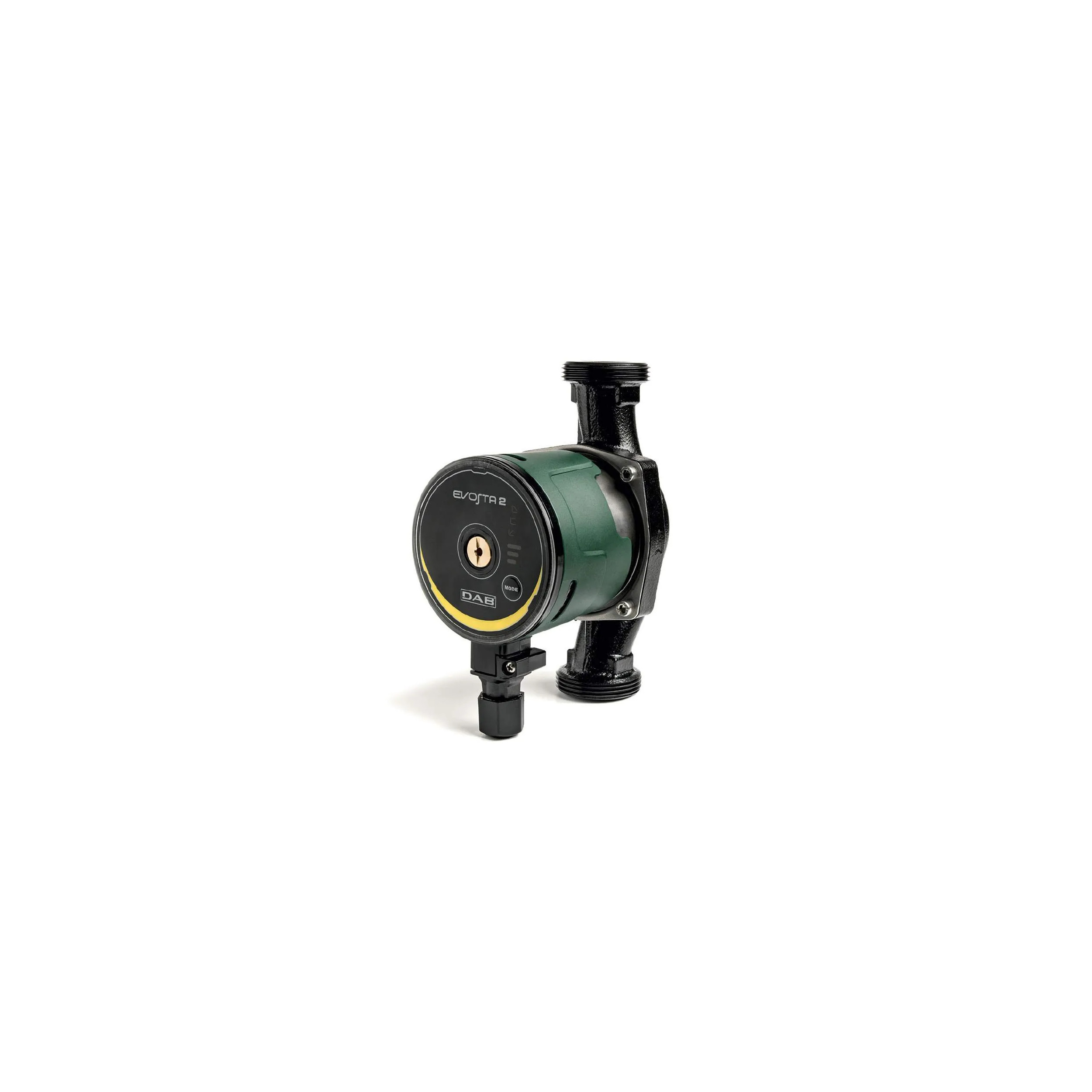

The circulators of the series Evosta 2 offer you very low energy operation. They are mainly used as electronic pumps for water circulation in residential heating and cooling systems.

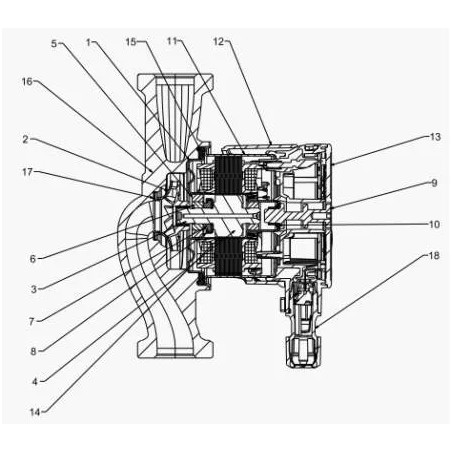

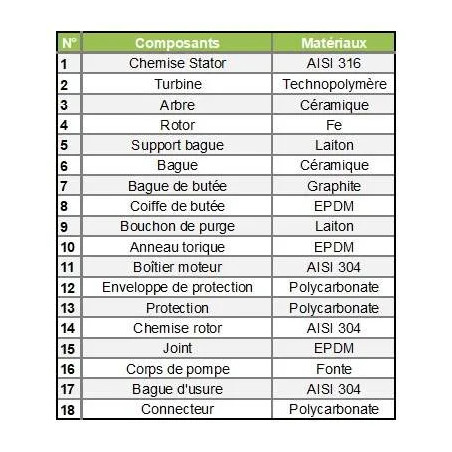

As usual, the manufacturer DAB has taken care to use quality materials in the design of the circulators Evosta 2. For example, the cataphoresis-treated cast iron of the pump casing and the canned motor. And let's not forget the steel motor housing and the technopolymer impeller. For details of the materials used, please refer to the table at the bottom of the page, which clearly indicates the materials used.
In contrast to the other circulators of the brand, the Evosta2 is fresh out of the new DAB 4.0 factory. This state of the art factory ensures a stable and constant manufacturing process while preserving production flexibility. It is important to know that all the assembly phases of these new circulators are automated and that they are associated with a new intelligent control system, the POKA YOKE, a system that allows to anticipate any human error thus offering quality products and a safe production environment.
The advantages of Evosta 2 circulators
The range of circulators Evosta 2 is the perfect combination of the robustness of mechanical circulators and the many advantages of electronic versions.
On the one hand, we have its IPX5 protection rating and its integrated drain plug. On the other hand, its permanent magnet synchronous motor, the frequency converter and its efficiency index of less than 0.18. This results in unmatched efficiency and reliability for this product category.
Thanks to their small size and various features, the circulators of theEvosta 2 can completely replace an old three-speed circulator.
As for the control panel, nothing too complicated. The circulator has 12 options that can be selected via the MODE button.
TECHNICAL CHARACTERISTICS OF EVOSTA 2 CIRCULATORS
Type of product | Circulator |
Operating range | 0,4 - 3,6 m3/h with heads up to 6.9 m |
Liquid temperature range | from - 10°C to + 110°C |
Operating pressure | 10 bar |
Level of protection | IPX5 |
Insulation class | F |
Installation | With the motor shaft in horizontal position |
Standard power supply | Single-phase 1 x 230 V ~ 50/60 Hz |
Pumped liquid | Clean, free of solids and mineral oil, non-viscous, chemically neutral, close to the characteristics of water (glycol mx.30%). |

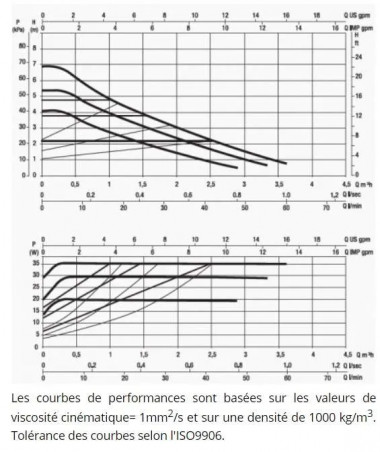

The performance of Evosta 2 circulators
| Model | Q=m3/h | 0.0 | 0.3 | 0.6 | 0.9 | 1.8 | 2.4 | 3.0 | 3.6 |
| Q=l/min | 0 | 5 | 10 | 15 | 30 | 40 | 50 | 60 | |
| Evosta 2 40-70/180X | H (m) | 6.9 | 6.9 | 5.8 | 5.1 | 3.4 | 2.4 | 1.6 | 0.8 |
Characteristics of Evosta 2 circulators
| Model | Centre distance mm | Pump connections | Power supply 50 Hz | P1 max W | In A | IEE* | Minimum load pressure | |
| Evosta 2 40-70/180X | 180 | DN32 threaded (G 2") | 1 x 230 V ~ | 35 | 0.043 - 0.32 | 0.18 | T 90°C | 1 b |
| * The reference parameter for the most efficient circulators is the EEI | ||||||||
