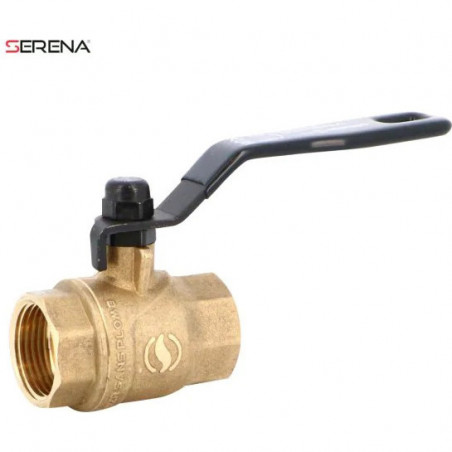

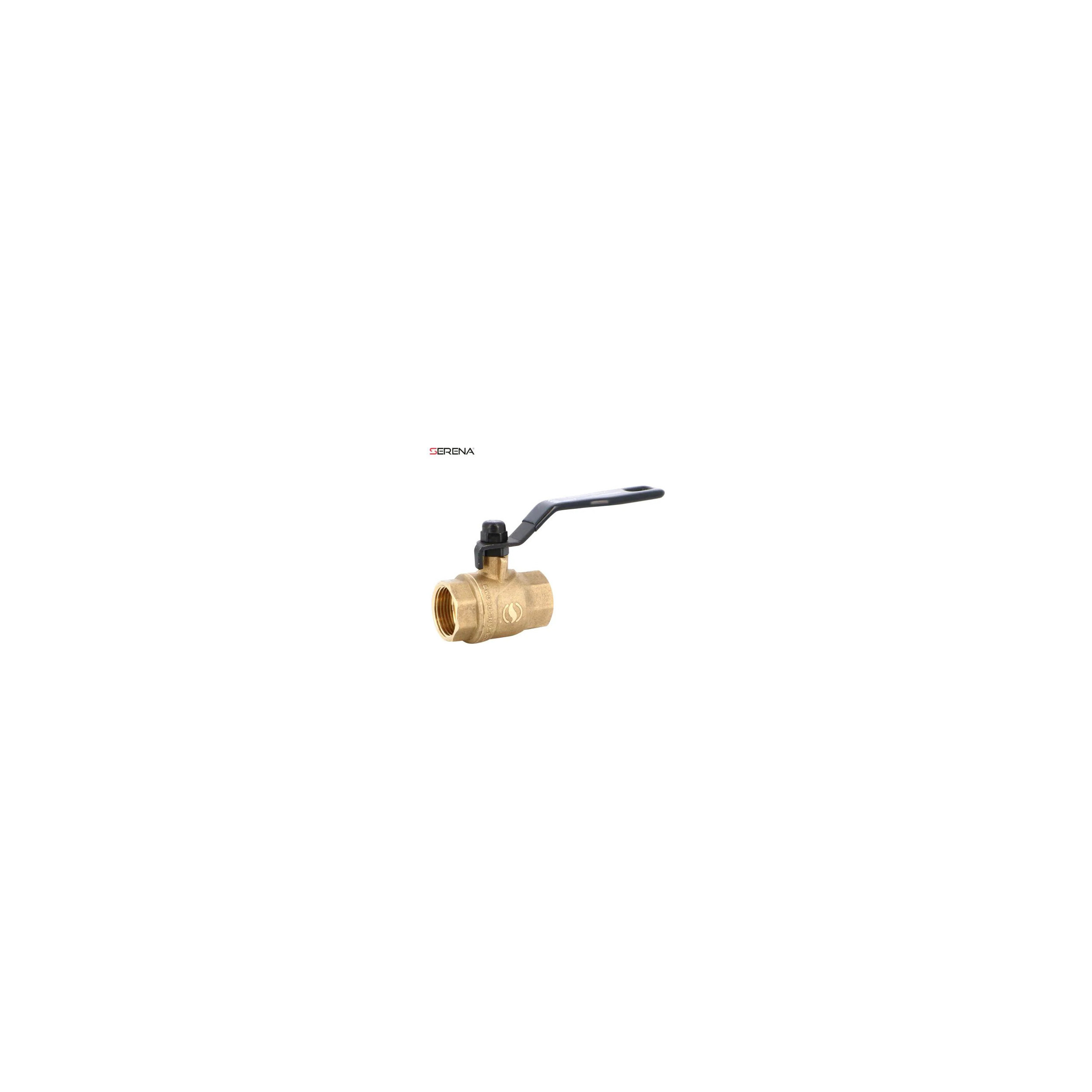

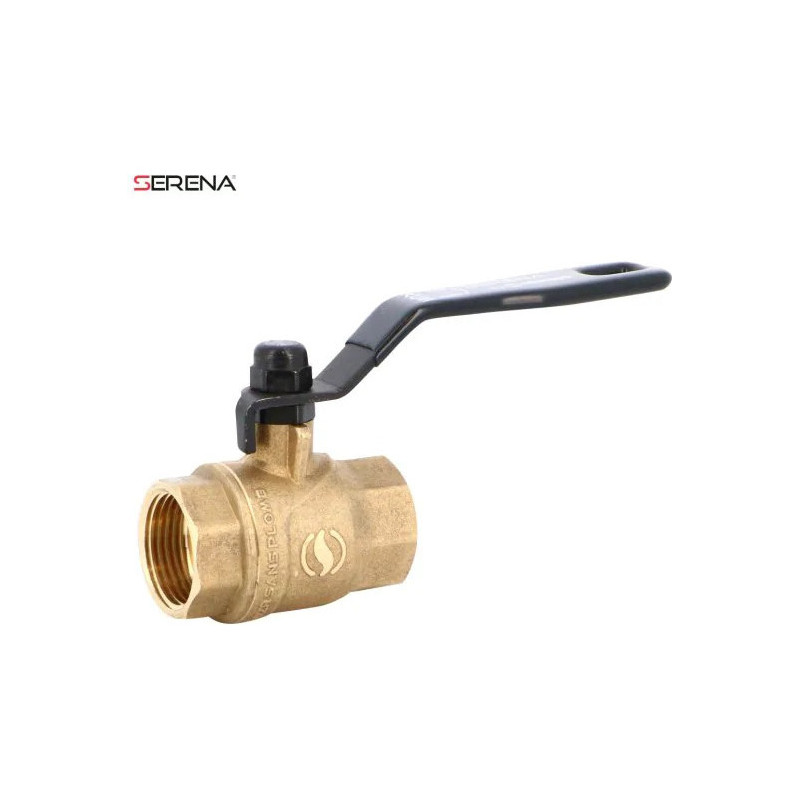

Sferaco Serena lead-free brass valve black lever female/female 50x60

FEMALE FEMALE VALVE 50X60 BLACK LEVER - LEAD-FREE

The female/female ball valve from the 509S range by Sferaco is designed for water distribution. Made of lead-free CW724R brass, it ensures full passage with a reversible black lever for easy handling. The valve is distinguished by its full ball and non-ejectable stem, guaranteeing reliable and safe use.

This model complies with ACS standards and can operate in a temperature range from -10°C to +120°C. The maximum service pressure varies depending on the diameter, ensuring safe use in various applications. The valve is delivered with its black lever pre-mounted, ready to be installed by screwing.

Female female in 50x60

Technical specifications

• Brand: Sferaco
• Range: 509S
• Type: Lead-free brass ball valve
• Body material: Lead-free CW724R brass
• Configuration: Female/Female
• Handle: Black lever
• General characteristics: Full passage, non-ejectable stem, full ball, PTFE packing gland, reversible handle, body marking with ACS, manufacturing date and logo, ACS number on the handle
• Usage: Water distribution
• Minimum operating temperature: -10°C
• Maximum operating temperature: +120°C
• Maximum service pressure: 40 bars up to DN 1", 30 bars in 1"1/4, 25 bars in 1"1/2, 20 bars in 2", 10 bars beyond
• Standards / approvals: ACS
• EAN: 3598781131008
• Validated manufacturer reference: 509009S
• Package contents: Ball valve only; black handle/lever pre-mounted
• Installation: Screw mounting
• Manufacturer: Sferaco
• Internal reference: SFEVA509009S
