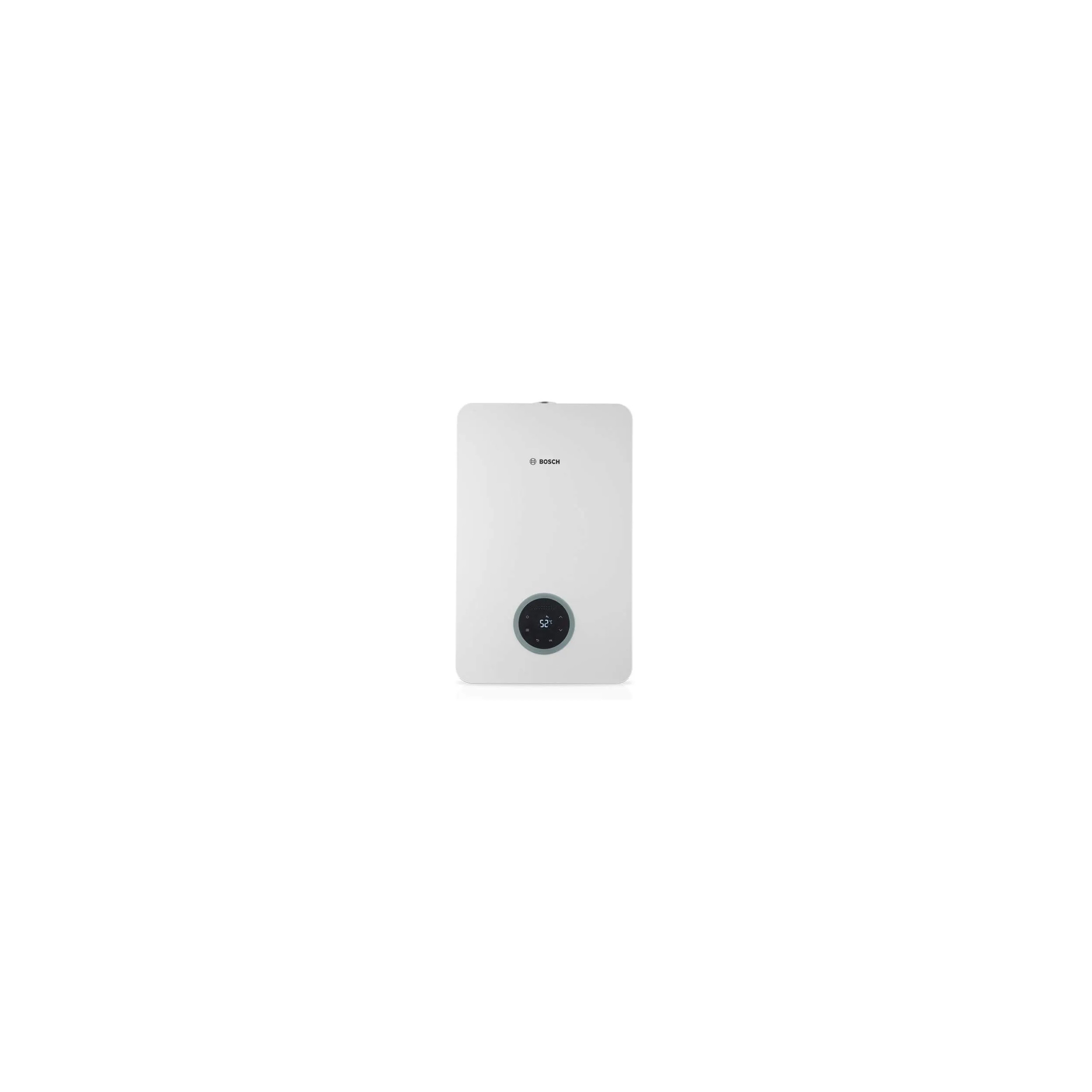

THERM 5600 butane cupping bath heater for Mobile home.

THERM 5600 butane cupping bath heater for Mobile home.

Technical specifications:

Max. rated thermal output Pn kW 20,7

Minimum nominal thermal power Pmin kW 4,3

Setting range 4.3 - 20.7

Maximum rated thermal load Qn kW 23.0

Minimum nominal heat load Qmin kW 4,5

Yield with 100% of nominal thermal load % 90

Yield with 30% of nominal thermal load % 95

Permissible gas supply pressure Butane G30 mbar 28 - 30 Propane G31 mbar 37 Gas consumption Butane G30 kg/h 1,8 Propane G31 kg/h 1,8

Max. permissible operating pressure pw bar 12

Minimum operating pressure pwmin bar 0,1

Minimum operating pressure with maximum hot water volume bar 2

Water volume at start-up l/min 2,8

Max. water flow rate at a temperature increase of 30 °C l/min 9.8

Combustion product flow rate G30 kg/h 25 G31 kg/h 33

Flue gas temperature at measuring points (MAX) G30 °C 130 G31 °C 120

Flue gas temperature at measuring points (min) G30 °C 47 G31 °C 45

Electrical system Power supply V 230 - Maximum power consumption W 39

IPX4D protection rating

Height mm 575 Width mm 335 Thickness mm 180.

Ref: 7736505037
