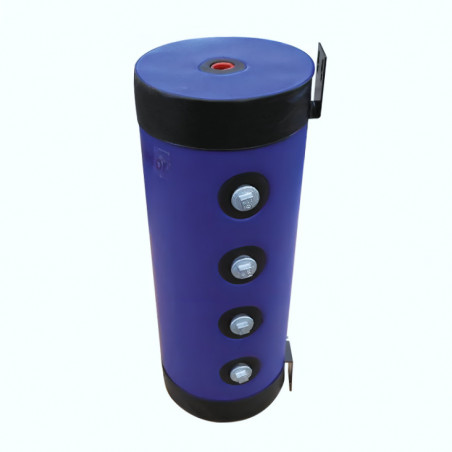

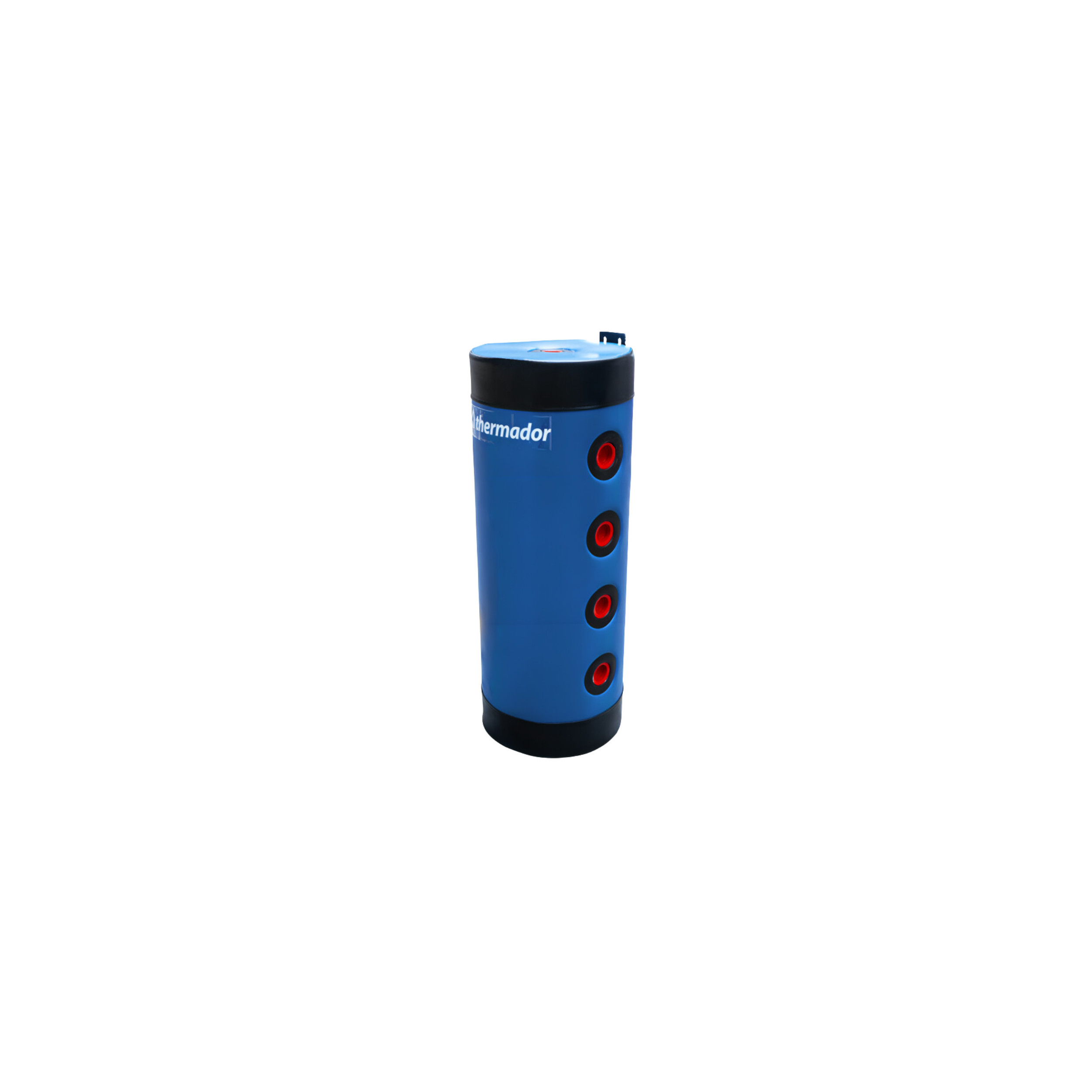

Wall-mounted 50 L steel mixing and buffer tank, 8 x 1"1/4 connections, heating and cooling

Sky jacketed mixing cylinders can be used for both heating and cooling systems. They are used for heating only when coupled with a radiator circuit + an underfloor heating circuit to avoid condensation on the radiator circuit.

• Use: Heating and air-conditioning.
• Volume: 50 L (useful: 51 L).
• Maximum operating pressure: 6 bar.
• Temperature range: -10°C to 110°C.
• Construction: Steel, compliant with directive 97/23/CE.
• Insulation: Rigid expanded polyurethane, thickness 35 mm.

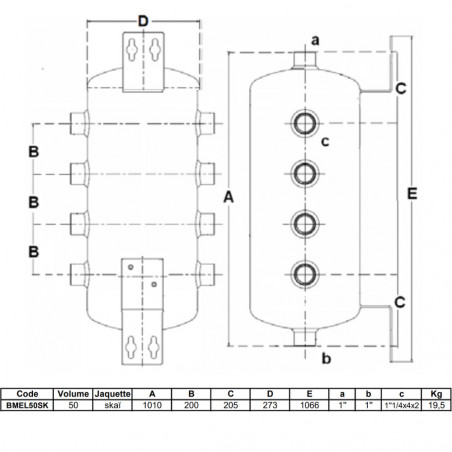

Technical specifications:

• Tappings: 8 tappings (4 per side) with 1"1/4 thread.
• Dimensions
  • Height: 1010 mm.
  • Width: 273 mm.
  • Thread center distance: 200 mm.
• Weight: 19.5 kg.
• Energy class (ErP directive 2009/125/CE): Class C.
• Power rating: 48 W.
• Resistance connection: Yes

Advantages :

• Hydraulic decoupling: Avoids flow faults for greater energy efficiency.
• Increased water volume: Reduces the number of starts of the energy source, prolonging its service life.
• Versatility: Suitable for heating-only or combined installations with air-conditioning.
• Optimal Insulation: Maintains temperature for better performance.

Installation recommendations :

• Install an air vent on the top tapping.
• Add a drain valve on the lower connection.
• Earth the cylinder to prevent corrosion due to stray currents.

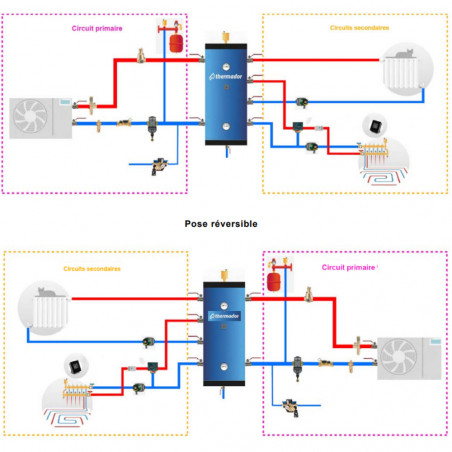

Applications :

• Heating only (radiators + underfloor heating).
• Heating and cooling in combined systems.
