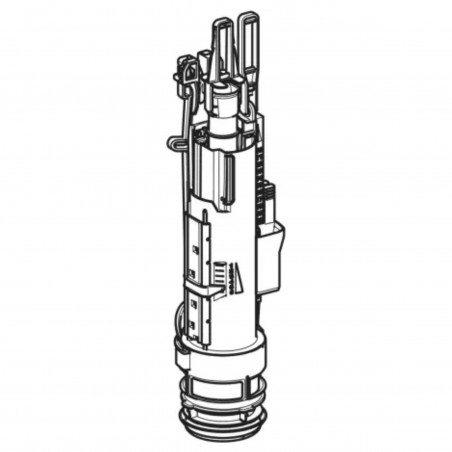

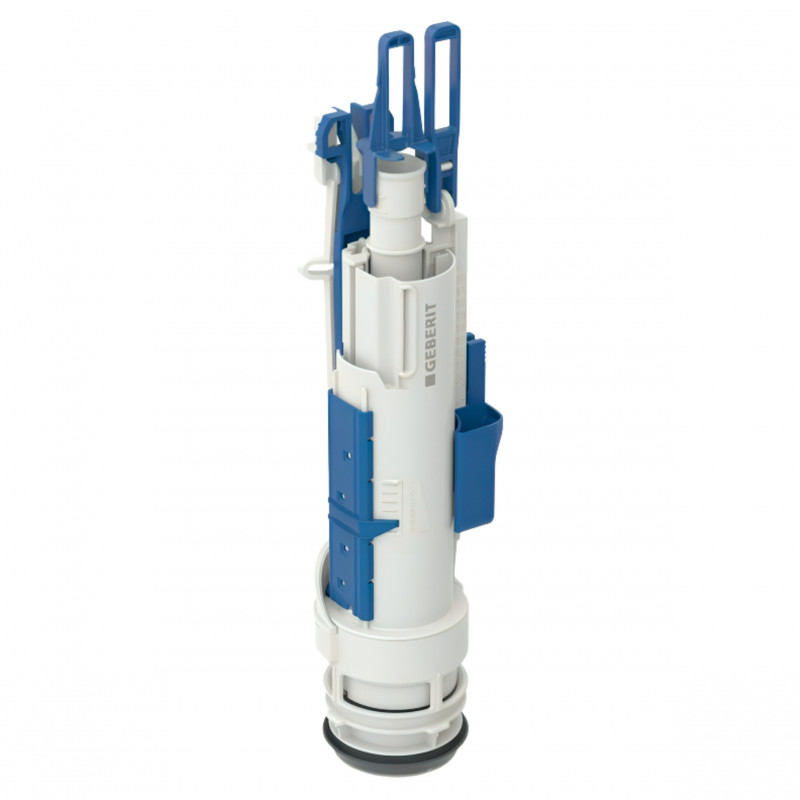

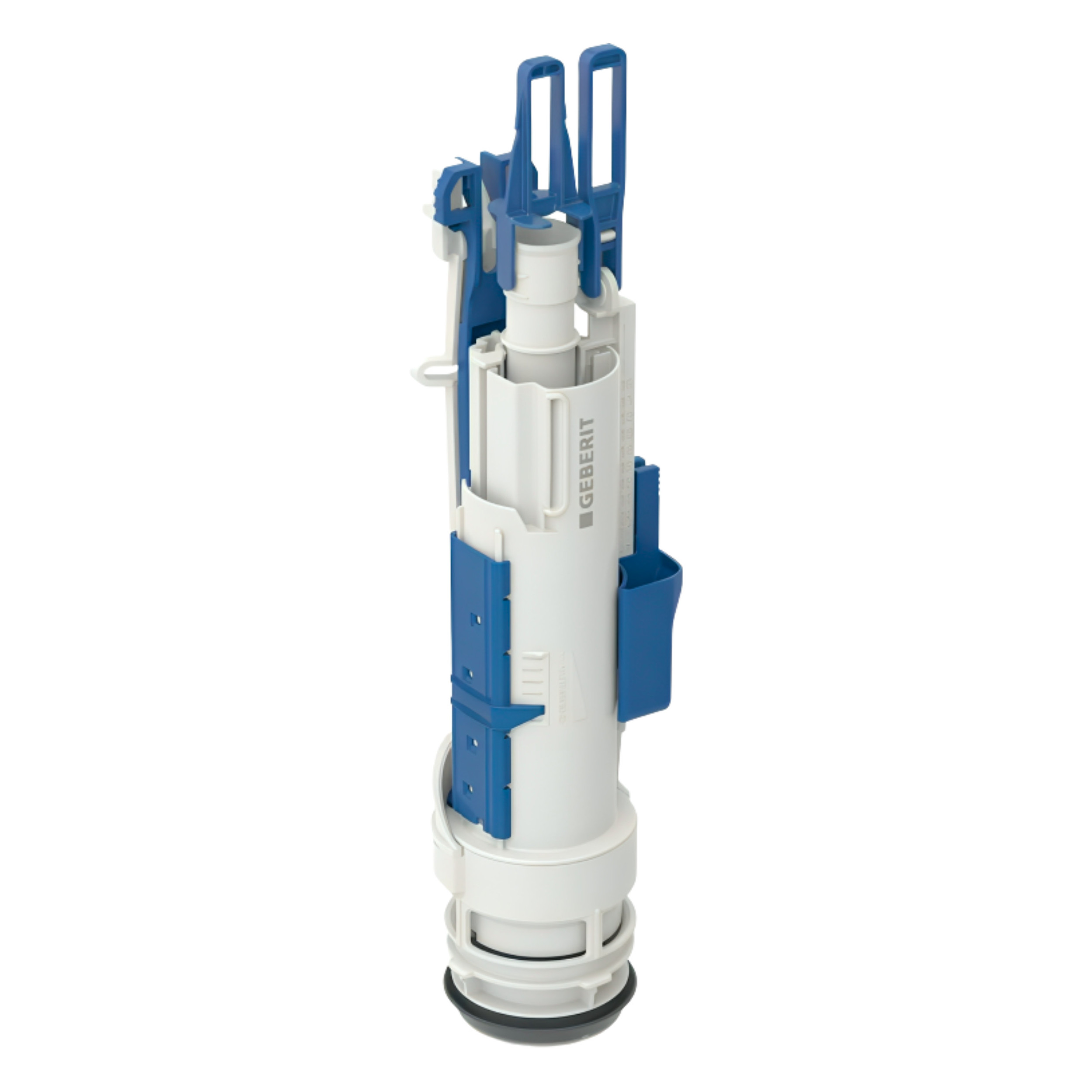

Complete flush mechanism type 212 for Sigma, Delta, and Omega concealed cistern

Complete flush mechanism type 212 GEBERIT for Sigma, Delta, and Omega built-in tanks

The complete flush mechanism type 212 is a spare part for concealed tanks from the brand GEBERIT. It is intended for built-in tanks Sigma, Delta, and Omega according to the indicated compatibilities.

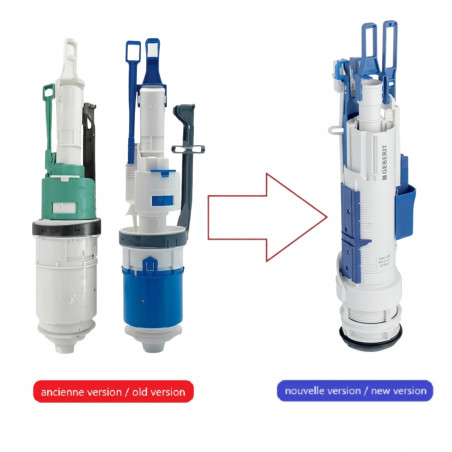

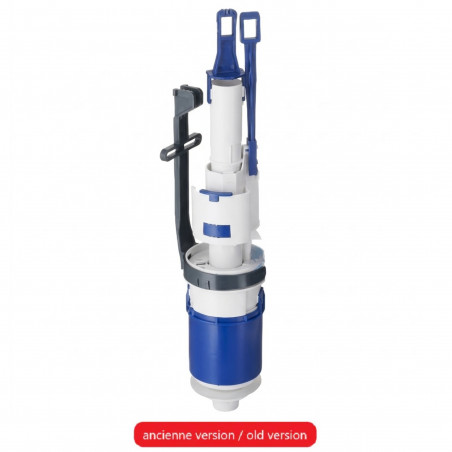

This complete mechanism is equipped with an integrated flow moderator. The factory setting is 3/6 L with operation in dual volume. It is replaceable with the current flush mechanism.

The compact bell has a smaller diameter, approximately 10 mm less. The installation of the basin is easier thanks to the use of a support arm fixed to the tank. The mechanism has settings for a full flush on 6 positions and for a partial flush on 11 positions. A new interface for fixing the pneumatic lift is also indicated.

• Product type: Complete flush mechanism
• Brand: GEBERIT
• Type: 212
• Usage: Spare part for concealed tank
• Compatibility: Built-in Omega tanks 12 cm: 2014 -
• Compatibility: Built-in Sigma tanks 12 cm (UP320): 2008 -
• Compatibility: Built-in Delta tanks 12 cm (UP100): 2005 -
• Compatibility: Built-in Sigma tanks 12 cm (UP300): 2000 - 2017
• Replaces reference: 240.622.00.1, 241.858.00.1, 241.859.00.1, 244.820.00.1, 244.830.00.1
• Equipment: mechanism with integrated flow moderator
• Factory setting: 3/6 L
• Volume: Dual volume
• Height (in cm): 35.4
• Width: 8
• Compact bell: smaller diameter (approximately 10 mm less)
• Installation: easier basin installation thanks to the use of a support arm fixed to the tank
• Settings for a full flush: on 6 positions (3.5 to 7.5 liters)
• Settings for a partial flush: on 11 positions (2 to 4 liters)
• Interface: New interface for fixing the pneumatic lift
• Manufacturer: GEBERIT
• Reference: 246.328.00.1
