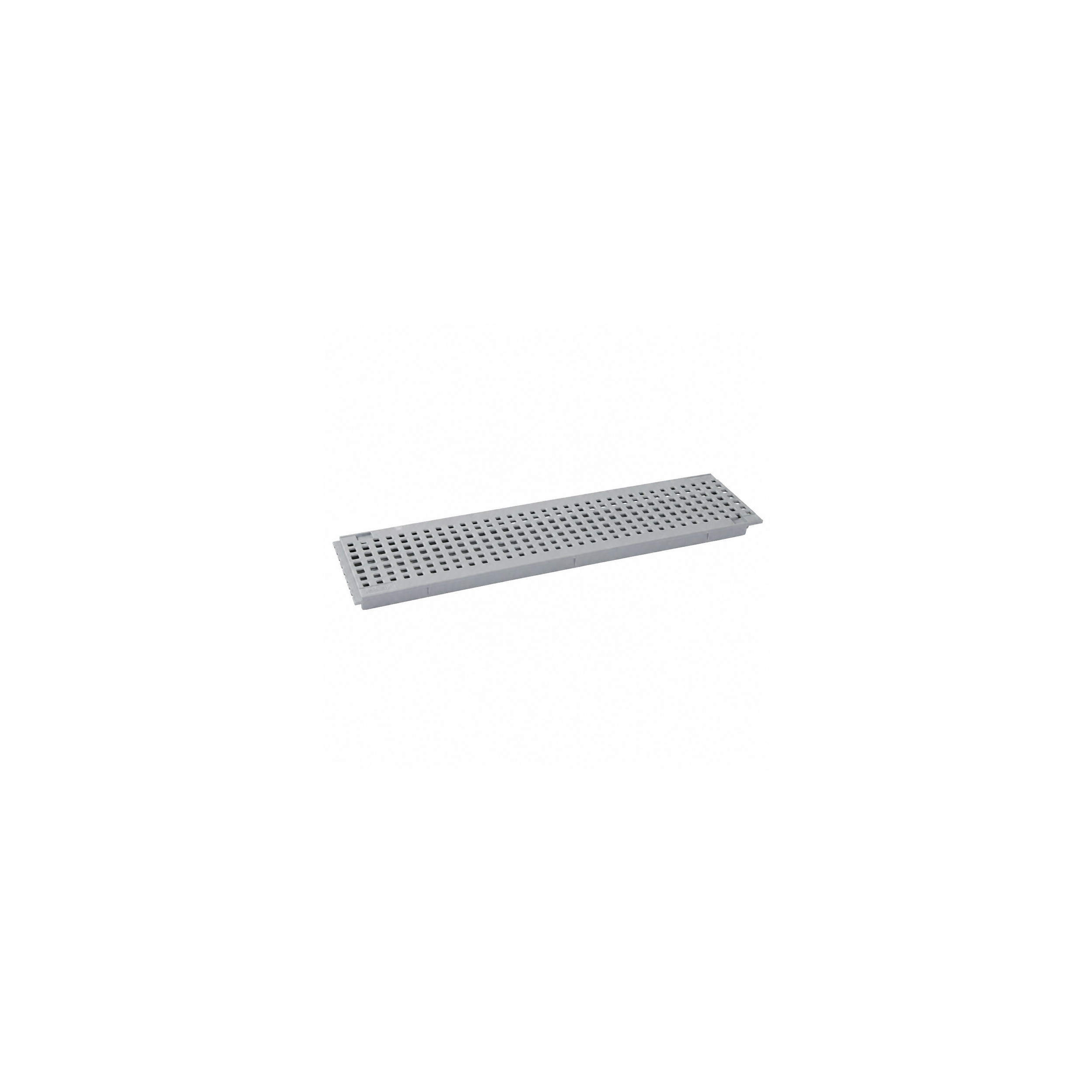

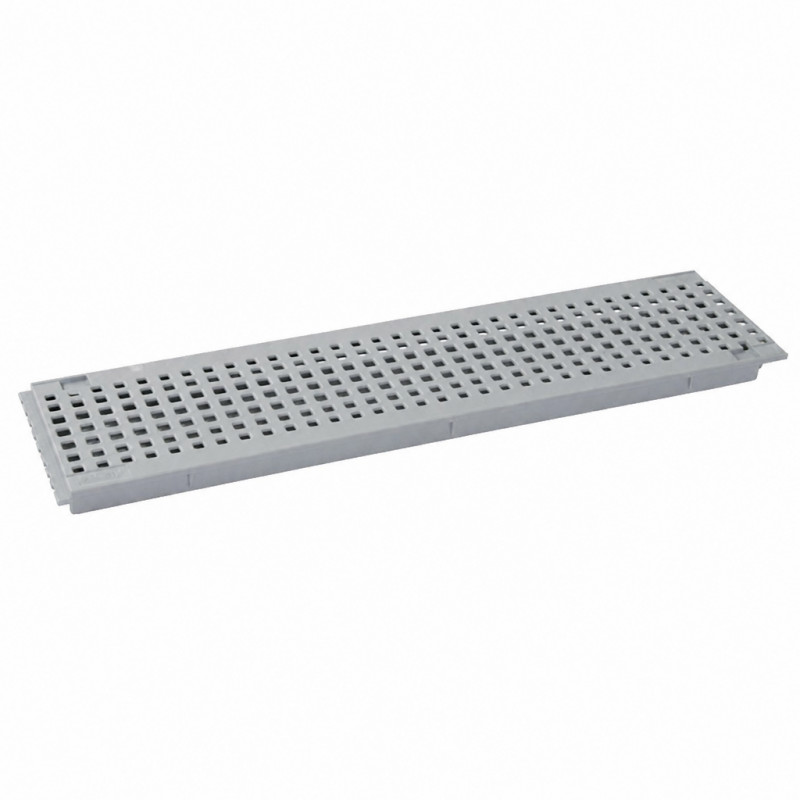

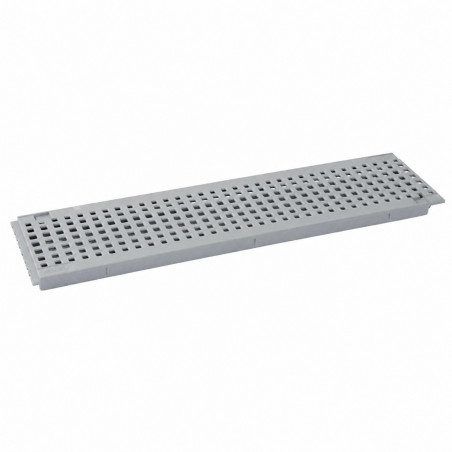

Light gray UV-resistant PVC pool channel grate Nicoll Connecto GR77P PMR
€34.92
Tax Included
(29.10 €HT + Ecotaxe €0.04HT)
Référence NICOLL : GR77P
Emplacement magasin : B6-D-071
Nicoll pool channel grille This light gray grille in PVC is designed for the drainage of runoff water. With dimensions of 500 mm in length and 128 mm in width, it is ideal for pedestrian and cyclist areas. Compliance with accessibility standards for people with reduced mobility.
Safety guarantees
Delivery policy
Returns policy
POOL CHANNEL GRILLE 0.50 M LIGHT GRAY NICOLL
The GR77P PVC pool grille from the Connecto range by Nicoll is specially designed for the drainage of runoff water. It is characterized by its UV-treated PVC material, optimized for pedestrian and cyclist areas. Compliant with accessibility standards, it meets the A15 resistance class according to the NF EN 1433 standard.
With dimensions of 500 mm in length, 128 mm in width, and 20 mm in height, this grille has a drainage surface of 232 cm²/ml, ideal for meeting the requirements of group 1 traffic areas. Openings of less than 8 mm are suitable for barefoot areas. The grille weighs 0.5 kg and is easily fixed using two self-tapping screws FIXCAN, depending on the type of compatible channel.
Technical characteristics
- Reference: GR77P
- Brand: Nicoll
- Range: Connecto
- Type: PVC pool grille
- Resistance class: A15 (NF EN 1433)
- Material: UV-treated PVC
- Color: Light gray / gray
- Width: 128 mm
- Length: 500 mm
- Overall height: 20 mm
- Drainage surface: 232 cm²/ml
- Hole dimensions: < 8 mm
- Weight: 0.5 kg
- Support compatibility: High channel width 100: CAN177, CAN177N; low channel width 100: CAB773, CAB773S, CABS773, CABS773S, CAB134, CAB133A
- Fixation: 2 FIXCAN (self-tapping screws) for fixing on certain Connecto channels
- Use: Collection of runoff water in pedestrian and cyclist areas
- Accessibility: Compliant with accessibility requirements for people with reduced mobility
- Packaging: 1
- Sales unit: 1 piece
- Standards & certifications: NF EN 1433, Class A15, PMR accessibility compliance
- Compatibility: Compatible with Nicoll Connecto channels: CAN177, CAN177N, CAB773, CAB773S, CABS773, CABS773S, CAB134, and CAB133A
- Package contents: Grille only; fixation by 2 FIXCAN depending on the compatible channel
- Manufacturer: NICOLL
- Internal reference: NICGRGR77P
Instructions for use
- Implementation in group 1 traffic areas, class A15, for pedestrian and cyclist uses.
- Fixation on compatible channels with two FIXCAN.
- Openings < 8 mm adapted to barefoot constraints.
6 Items
Data sheet
- Length (cm):
- 50
- Width (cm):
- 12.8
- Height (cm):
- 7.5 - 8.2
- Main color :
- Light grey
- Weight (kg) :
- 0.5
- Packaging:
- 1
- Main materials :
- PVC
Specific References
- EAN13
- 3309030889409
- EAN-13
- 3309030889409
- Location
- B6-D-071
- Reference to display
- NICGRGR77P
- Supplier reference
- GR77P
