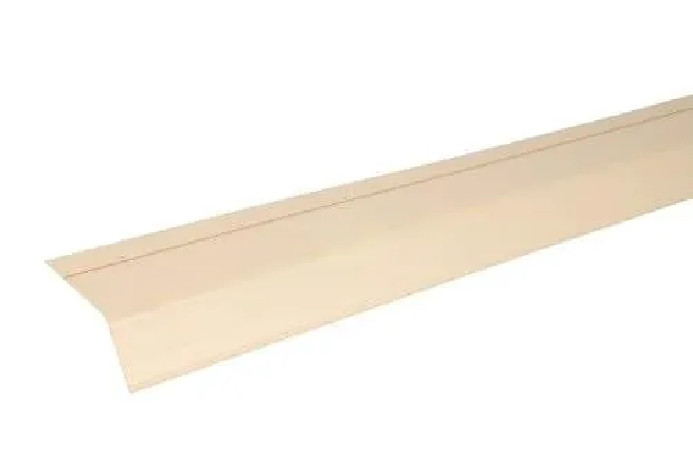

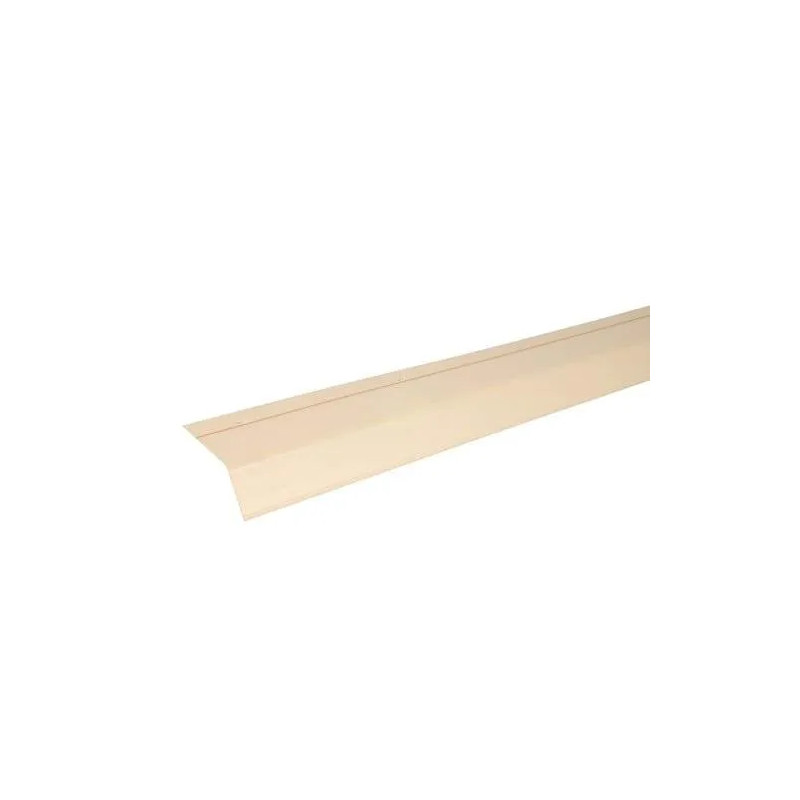

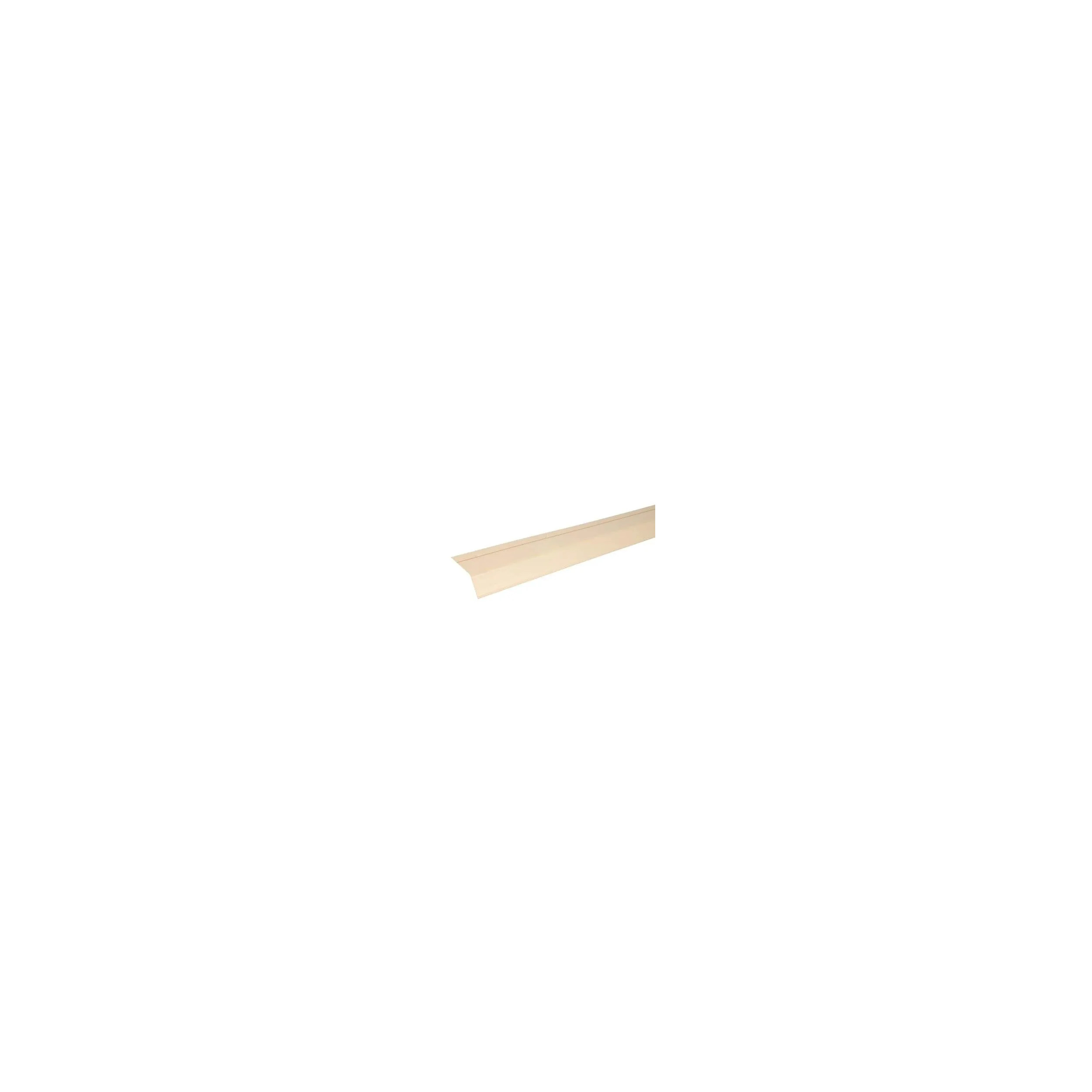

PVC sand drip edge, height 18cm, length 2 meters.

Sand PVC drip edge, height 18cm, length 2 meters NICOLL reference LARM18S.

■ FUNCTION: - The drip edge (or apron) directs the rainwater flow into the gutter profile when the tile overhang is not sufficient. It helps prevent rainwater infiltration between the facade and the gutter profile. It also protects the eaves board.

■ IMPLEMENTATION: - Attach the drip edge to the last batten of the tiled roof, or directly onto the boarding if the roof is slate, using wide-headed nails and nailing the drip edge through the oblong holes. Space the nails at regular intervals of no more than 0.50 m. The drip edge must enter the gutter profile by at least 15 mm depending on the different models. Do not overly tighten the drip edge to allow for natural expansion. - Using a utility knife, cut the anti-capillarity rib by 10 cm. The connection between two drip edges is made by simple overlapping, without gluing, taking into account the prevailing winds. The proper support of the profiles will be ensured by nailing through the 2 previously overlapped oblong holes. - After connecting the 2 lengths of drip edge, secure with wide-headed nails (space them at regular intervals, no more than 0.50 m). To allow for natural expansion, avoid tightening the drip edge too much. - In case of installing an under-roof screen, it rests on the upper part of the drip edge (minimum overlap of 60 mm). The under-roof screen is nailed or stapled with the drip edge on the last tilting batten or on the eaves board.
