- New

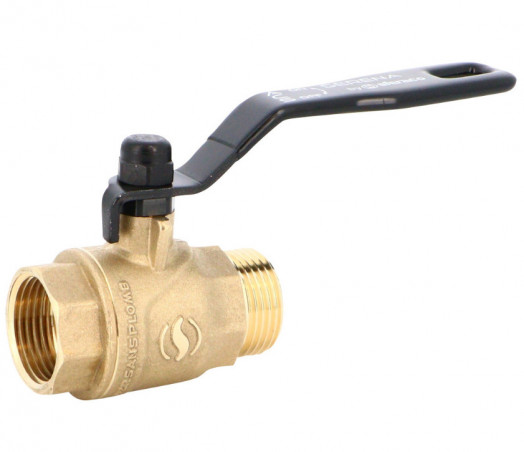

Female valve 26x34 with black lever, lead-free
€22.62
Tax Included
(18.85 € HT)
Référence Sferaco : 571006S
Emplacement magasin : B8-G-102
Sferaco 571006S Male Female Valve This valve with a ball Sferaco is designed for a male-female connection of 1 inch. Made of brass and equipped with a steel handle, it supports up to 40 bars and is suitable for drinking water.
Safety guarantees
Delivery policy
Returns policy

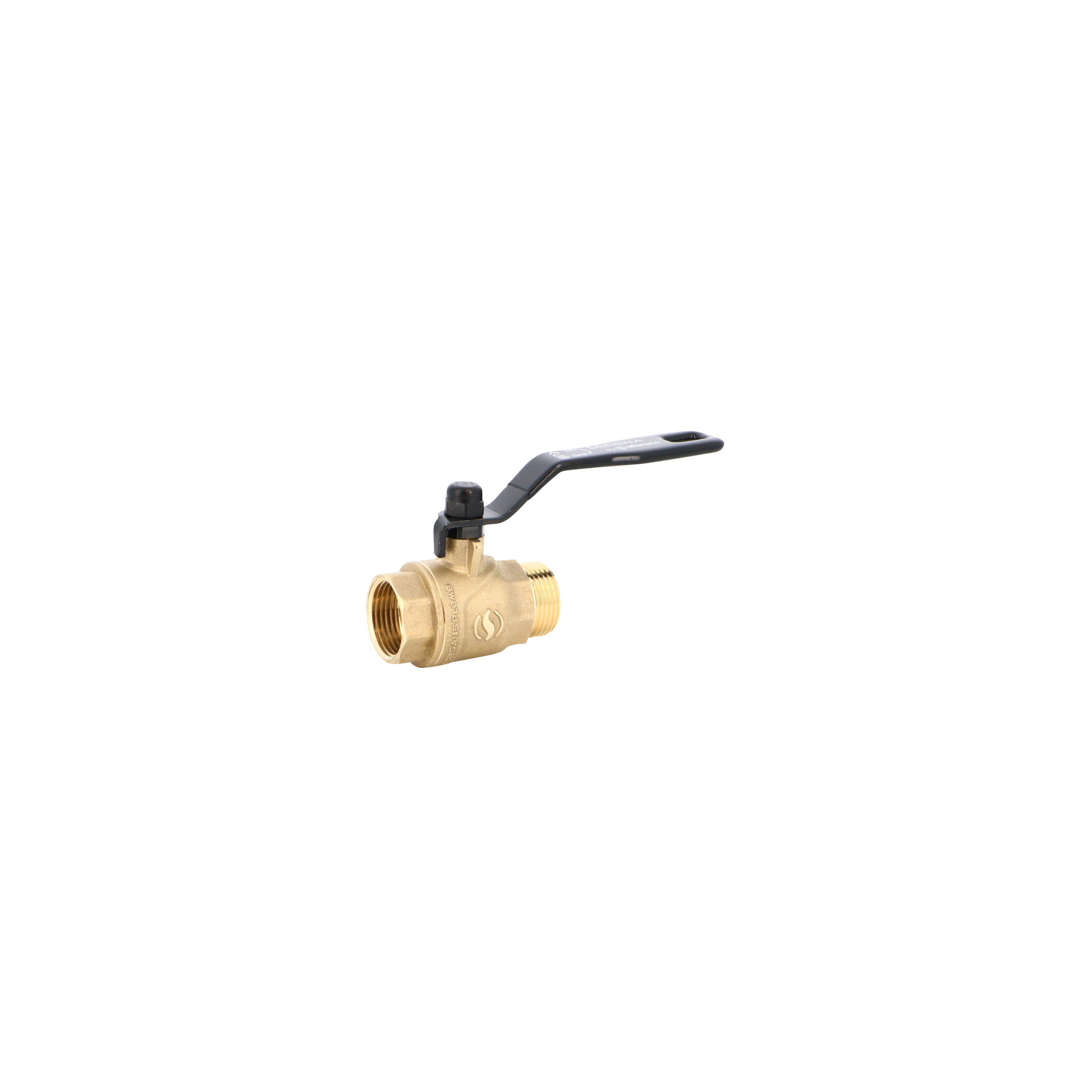

MALE FEMALE VALVE 26X34 BLACK LEVER - LEAD-FREE
Lead-free Brass Ball Valve CW724R non-dezincifiable eco-friendly Serena, ACS for drinking water, perforated ball limiting bacteria and scale, BSP male female threaded connection with flat black lever DN1"
The Sferaco series 571 ball valve is designed for applications requiring BSP male-female threaded connections of 1 inch. The brass body and steel handle ensure reliable robustness. It supports a maximum pressure of 40 bar and operates in a temperature range from -10 °C to 120 °C.
This model is certified according to several standards, including ACS, DIN EN 13828, DVGW, and complies with the 2014/68/EU directive. It is RoHS exempt and meets ISO 9001:2015 and ISO 14001:2015 standards.
Technical Specifications
- Manufacturer reference: 571006S
- Brand: Sferaco
- Range: 571S
- Type: Ball Valve / Ball Valve
- Connection: Male-female threaded
- Nominal diameter: 1 inch
- Threading standard: BSP
- Body: Brass
- Handle: Steel
- Maximum pressure: 40 bar
- Operating temperature: -10 °C to 120 °C
- Series: 571
- Standards & certifications: ACS, DIN EN 13828, DVGW, Directive 2014/68/EU, REACH, ISO 9001:2015, ISO 14001:2015, RoHS: exempt
- Warranty: 2 years
- Manufacturer: Sferaco
- Internal reference: SFEVA571006S
Data sheet
- Main color :
- Black
- Threads :
- 1" (26x34)
- Connection type :
- male / female
- Main materials :
- Brass
- Pressure (bar) :
- 0-40 bar
Specific References
- EAN13
- 3598781325964
- EAN-13
- 3598781325964
- Location
- B8-G-102
- Reference to display
- SFEVA571006S
- Supplier reference
- 571006S
