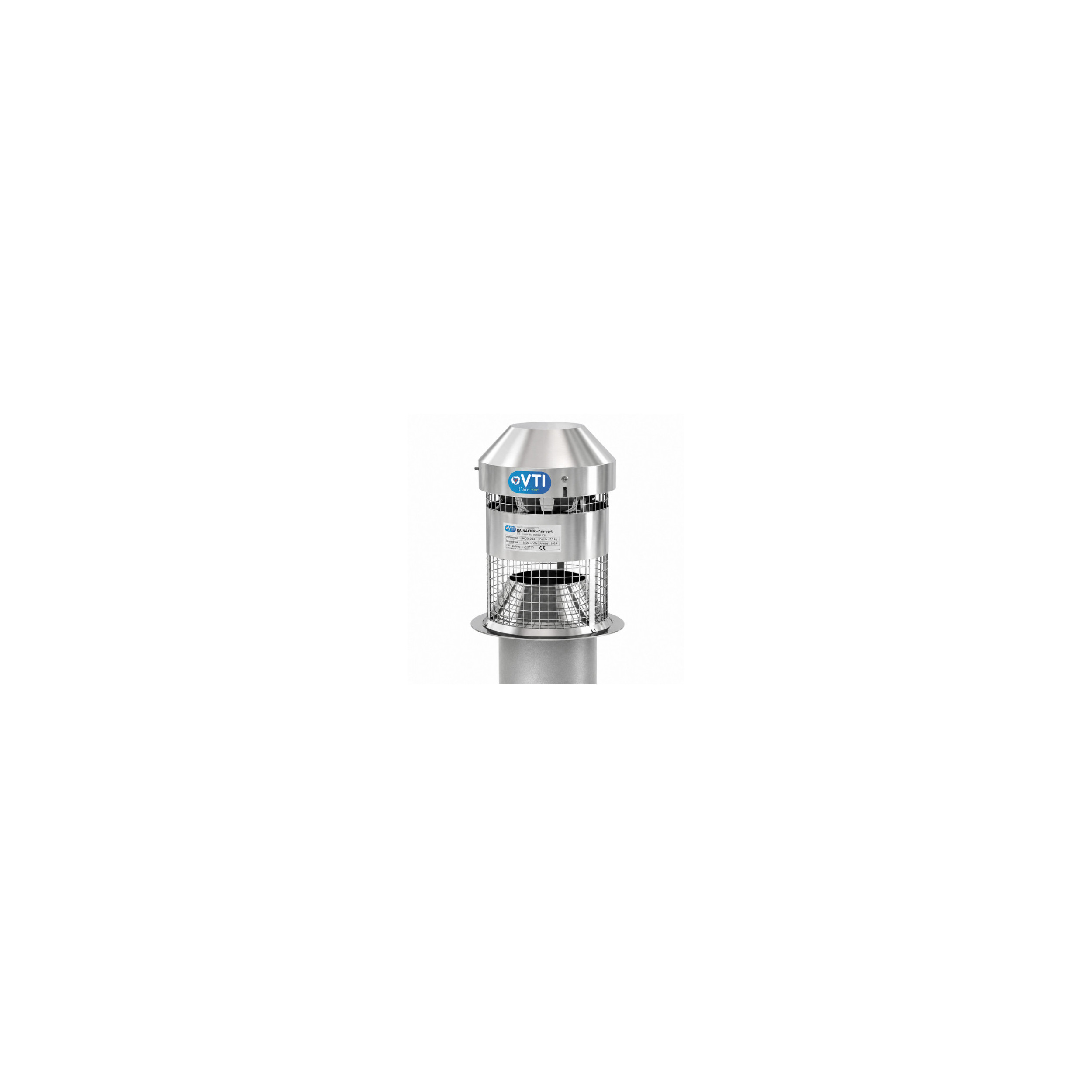

VTI MAXIVENT MV2 statomechanical extractor individual conduit Ø125/139 mm

Statomechanical extractor VTI MAXIVENT MV2 Ø125/139 mm

The statomechanical extractor VTI MAXIVENT MV2 is designed for the efficient evacuation of combustion products from gas appliances connected to existing individual ducts, especially when natural draft is insufficient. It is also suitable for ventilating various spaces such as kitchens, toilets, bathrooms, garages, attics, lofts, caravans, and barges.

This model ensures a minimum depression of 3 Pa at the boiler nozzle, thanks to the supplied variator. It complies with the P 50-413 Class B standard when the motor is stopped. Installation is possible on rigid ducts with diameters Ø125 or Ø139 mm, or on flexible ducts with a separately sold adapter.

Technical characteristics

• Product type: Statomechanical extractor
• Model: MAXIVENT MV2
• Application: Individual duct
• Compatibility: Gas and oil boilers up to 35 kW
• Other uses: Ventilation of kitchens, toilets, bathrooms, garages, attics, lofts, caravans, barges
• Duct diameter: 125 or 139 mm
• Type of duct: Rigid duct, chimney pot, fiber cement, flexible duct with adapter
• Minimum depression: 3 Pa
• Standard: P 50-413 Class B
• Consumption: 0.25 A / 36 W
• Motor speed: 1300 rpm
• Maximum duct height: Up to 10 m
• Accessory provided: Variator
• Dimensions: W 255 mm × H 327 mm
• Packaging: Individual
• Manufacturer: VTI
• Reference: MV2
• Packaging: 1
• Warranty: 2 years
• Width: 13.9 cm
• Length: 13.9 cm
• Origin: made in europe
• Weight: 2.5 kg
