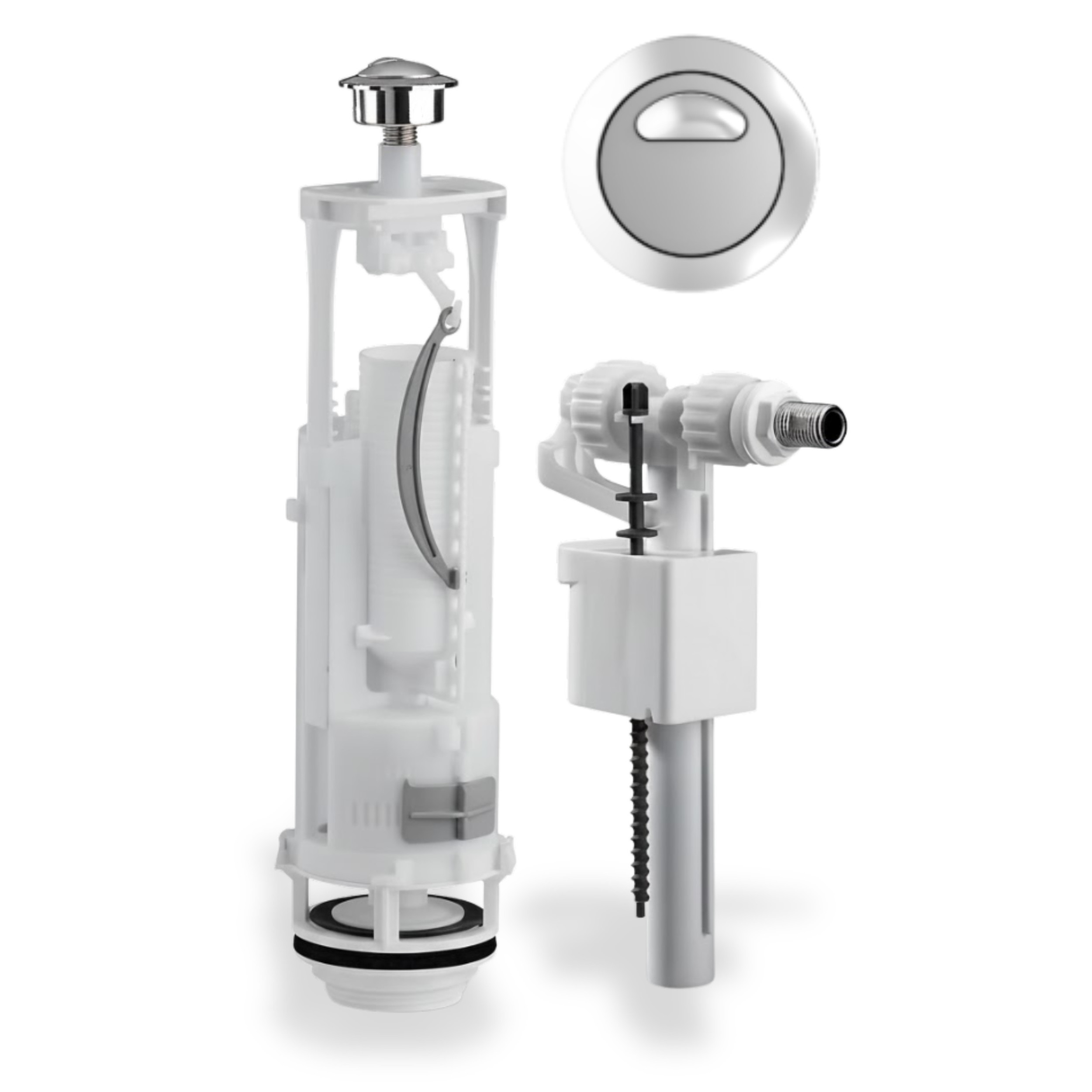

Optima 49 dual flush mechanism and 95L float valve for Vitra toilet tank

Optima 49 flush mechanism kit and Compact 95L float valve

Kit consisting of the OPTIMA 49 flush mechanism and the COMPACT 95L float valve. Set designed for installation on SIAMP drains when renovating old mechanisms, with quick adjustment to fit different types of VitrA tanks and other brands.

The OPTIMA 49 mechanism features a height-adjustable bracket in 10 mm increments to hold the tank lid, a double volume push button (with or without rosette), and adjustments for small flush and residual water level. The COMPACT 95L float valve is compact, has hydraulic closure, is silent (acoustic class 1), with water level adjustment via screw and easy maintenance (membrane and filter) without disassembling the supply.

• Product: flush mechanism kit + float valve
• Composition: OPTIMA 49 flush mechanism + COMPACT 95L float valve
• Installation: on SIAMP drains
• Application: renovation of old mechanisms
• Compatibility: adaptation to different types of VitrA tanks and other brands
• Adjustment: quick adjustment
• Flush mechanism: OPTIMA 49
• Bracket: height adjustable
• Bracket adjustment increment: 10 mm
• Bracket function: holds the tank lid
• Button: double volume push button
• Rosette: with or without rosette
• Actuation force: less than 20 N
• Button offset: tolerance +/- 15 mm
• Small flush: adjustable
• Residual water level: adjustable
• Flush flow rate: 3.5 l/s
• Float valve: COMPACT 95L
• Format: compact
• Closure: hydraulic
• Acoustic class: 1
• Connection: 3/8" nipple
• Material of nipple: nickel-plated brass
• Flow rate: 0.14 l/s at 3 bars
• Operating range: 0.5 to 10 bars
• Pressure peak tolerance: 16 bars
• Water level adjustment: via screw
• Water level adjustment range: 105 mm
• Maintenance: membrane and filter, without disassembling the supply
• Manufacturer: To be completed
• Reference: To be completed
