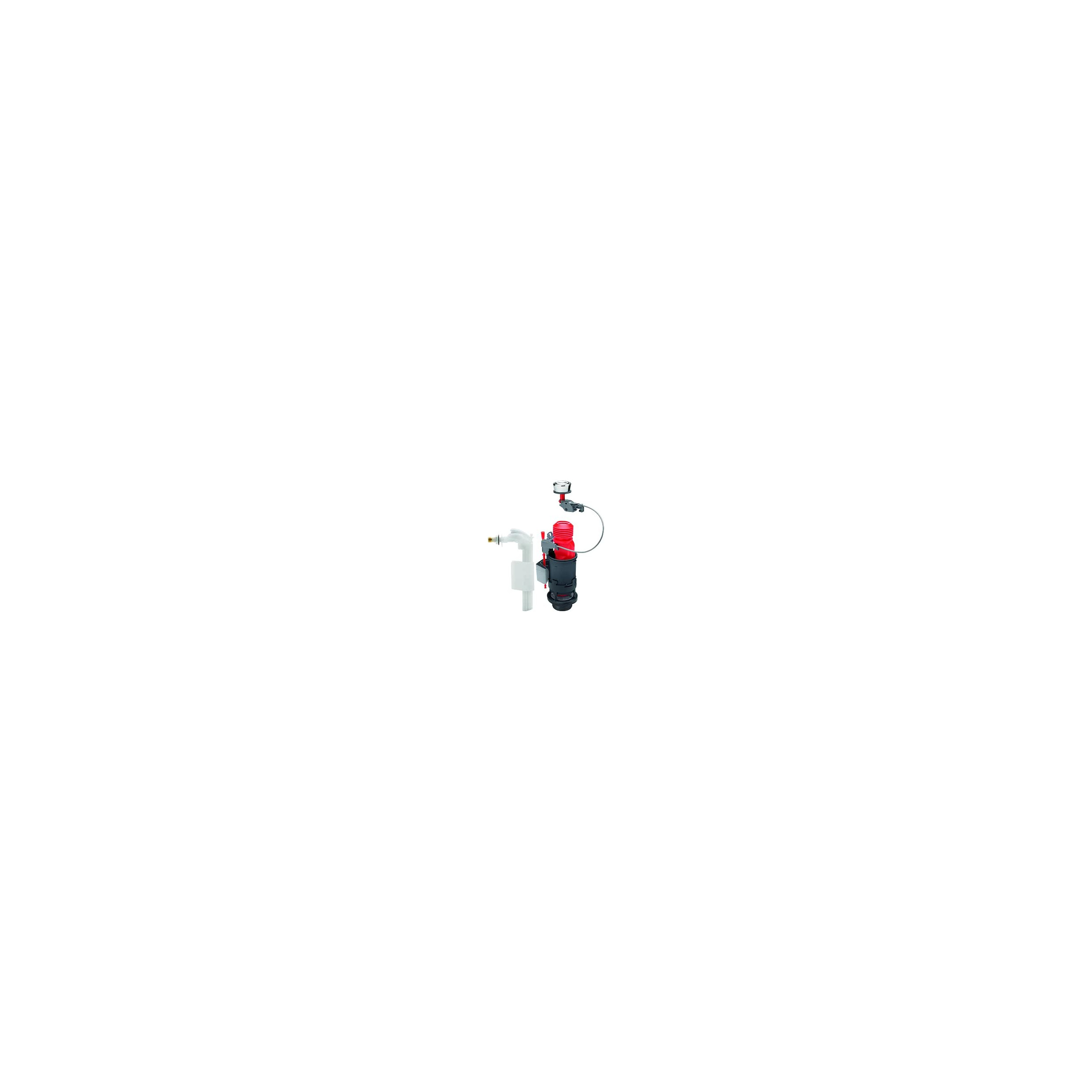

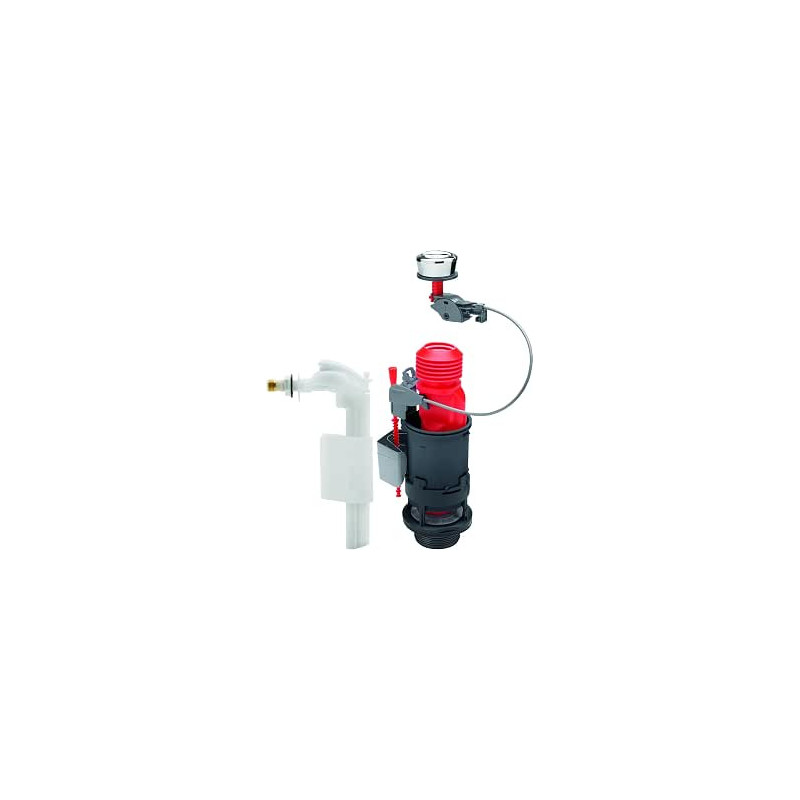

SET DOUBLE FLUSH MECHANISM WITH CABLE + FLOAT VALVE SERVO-VALVE - WIRQUIN
€48.30
Tax Included
(40.25 €HT + Ecotaxe €0.02HT)
Référence WIRQUIN : 10724038
Emplacement magasin :
Set double flush mechanism Wirquin 10724038 This set mechanism for WC from Wirquin includes a cable double flush system and a float valve with servo-valve in brass. Suitable for cisterns from 320 to 420 mm, it allows for quick and efficient filling thanks to its flow rate of 7.5 L/min.
Safety guarantees
Delivery policy
Returns policy
SET DOUBLE FLUSH MECHANISM WITH CABLE+FLOAT VALVE SERVO-VALVE- WIRQUIN
The WIRQUIN set, reference 10724038, includes a cable double flush mechanism MW2 and a float valve F90, designed for WC cisterns. The MW2 mechanism is equipped with a push button and offers a double flush of 3/6 liters suitable for cisterns with a height of 320 to 420 mm.
The float valve F90 has a side supply and integrates servo-valve technology for quick filling, with a flow rate of 7.5 L/min and a filling time of 48 seconds at 3 bars. The connection is made via a 3/8 inch brass fitting, and the system is universally adaptable to various cisterns.
Technical characteristics
- Manufacturer reference: 10724038
- EAN: 3375537238729
- Brand: WIRQUIN
- Designation: MW2 Mechanism + F90 valve
- Product type: Complete WC set
- Mechanism: MW2 with cable and push button
- Flush type: Double flush 3/6 L
- Minimum cistern height: 320 mm
- Maximum cistern height: 420 mm
- Minimum cover hole diameter: 14 mm
- Maximum cover hole diameter: 46 mm
- Overflow adjustment: Fixed
- Valve type: F90, side supply, servo-valve
- Connection: 3/8 inch, brass fitting
- Anti-siphon: Yes
- Filling flow rate: 7.5 L/min
- Water level adjustment: By screw
- Filling time at 3 bars: 48 s
- Operating range: 0.5 to 10 bar
- Packaging: Box
- Materials: Brass connection fitting
- Manufacturer: WIRQUIN
- Internal reference: WIRME10724038
3 Items
Data sheet
- Packaging:
- Boîte
- Threads :
- 3/8" (12x17)
- Main materials :
- Brass
Specific References
- EAN13
- 3375537238729
- EAN-13
- 3375537238729
- Location
- Reference to display
- WIRME10724038
- Supplier reference
- 10724038
