PVC elbow 100 mm multi-angles 5°/10°/15° breakable male female

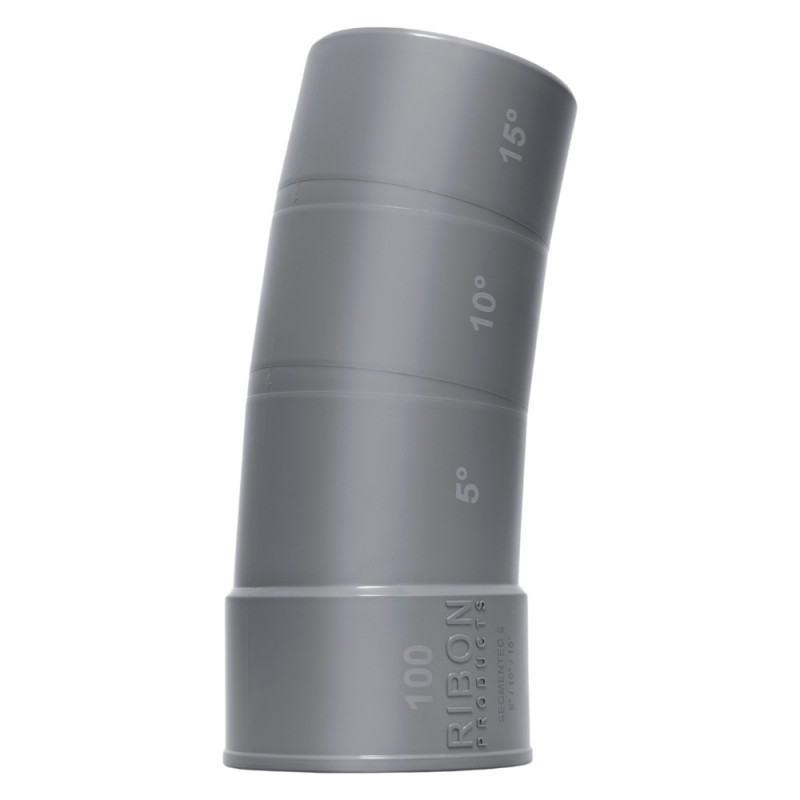

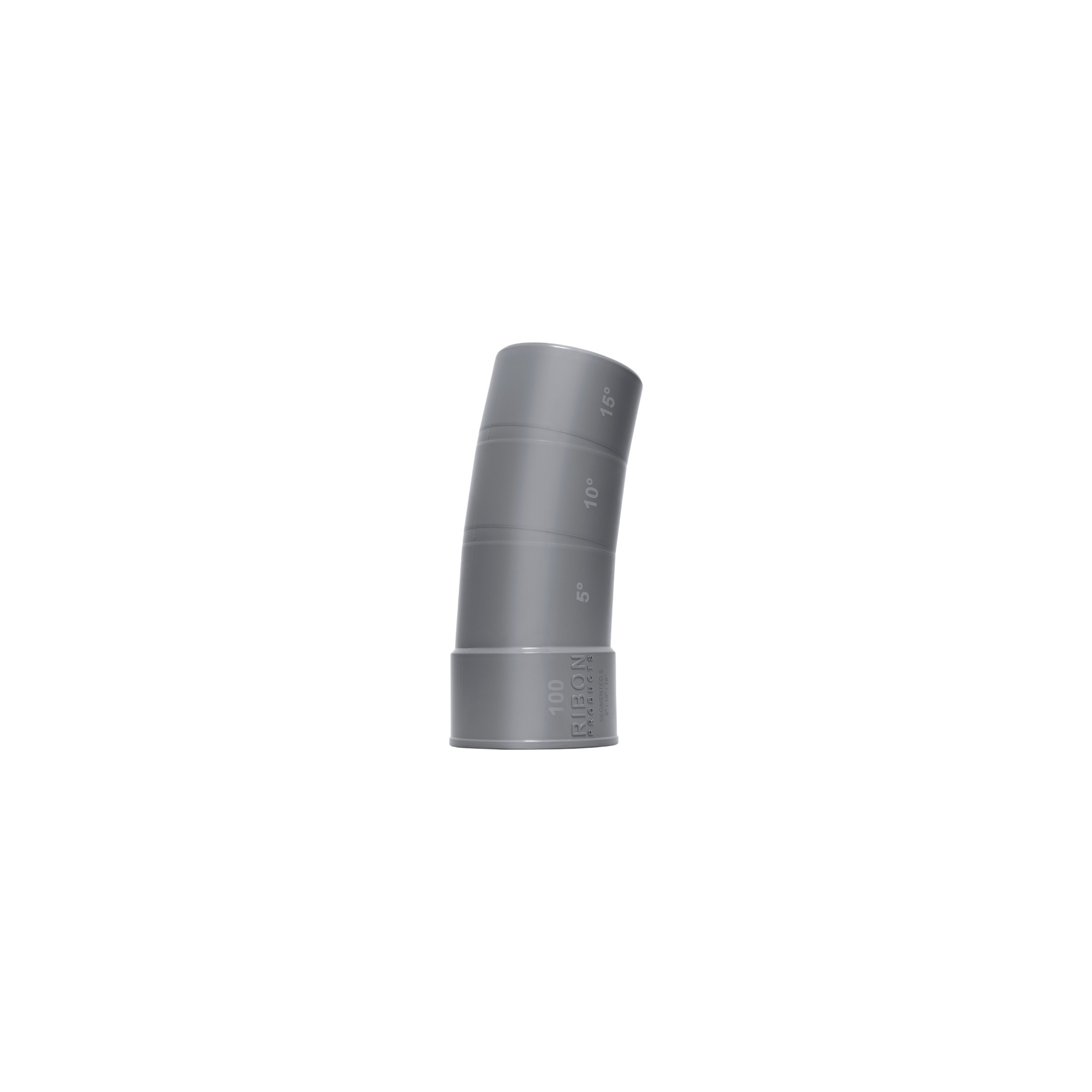

PVC elbow 100 mm multi-angles 5°/10°/15° male female RIBON reference SEG100S

Product type : Multi-angle PVC elbow for drainage

Description:
The SEG100S multi-angle elbow is a PVC-U male/female fitting for the evacuation of wastewater, black water and rainwater, indoors or underground (BD zone compliant).

This 5°, 10° or 15° split elbow offers installation flexibility for all types of configurations.

Made in France, it complies with reference standards for durable, reliable bonded installation.

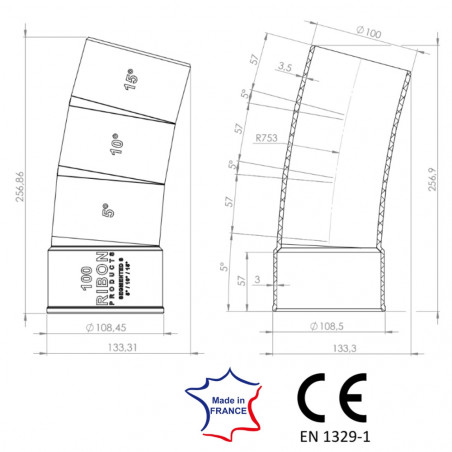

Technical specifications :

• Reference: SEG100S
• Diameter: 100 mm
• Angles: 5° / 10° / 15

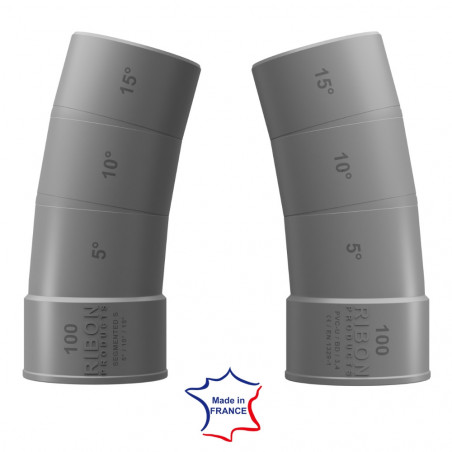

• Type: Male / Female
• Material: PVC-U (non-microporous polyvinyl chloride)
• Color: Gray / White
• Application: EU, EV, EP - indoor or underground (BD)
• Assembly: To be glued - compatible with PVC glue standard EN 14680 or EN 14814
• Standards: EN 1329-1, EN 1453-1
• Environmental quality: 100% recyclable PVC, drop at 5° usable

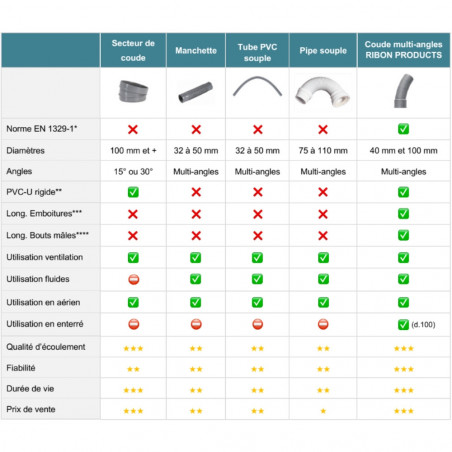

Compatibility:
Compatible with all fittings and pipes on the market complying with EN 1329-1 and EN 1453-1 standards.

Installation:
The elbow can be used whole or cut to the desired angle. Assemble by gluing the socket. Comply with DTU and the rules of the trade (Fascicule 70).

Physical and mechanical resistance :

• Density: 1.41 g/cm³ (ISO 1183-1)
• Vicat class: 80°C (ISO 306)
• Shore D hardness: 80 (ISO 868)
• Tensile strength: 46.5 N/mm² (ISO 527)
• Stretch rupture: 140% (ISO 527)
• Modulus of elasticity: 2950 N/mm² (ISO 178)
• Impact resistance: 50 J/m (ISO180/ASTM D256)
• Reaction to fire: Class VO (ISO180/ASTM D256)

Special features :

• Anti-oval collar
• Constant-radius body without parting line
• Fine calibration for non-crimping connections
• Thicknesses in excess of standards

Supplier: RIBON

Reference: SEG100S
