PVC elbow 100 mm multi-angles 15°/25°/35° breakable male female

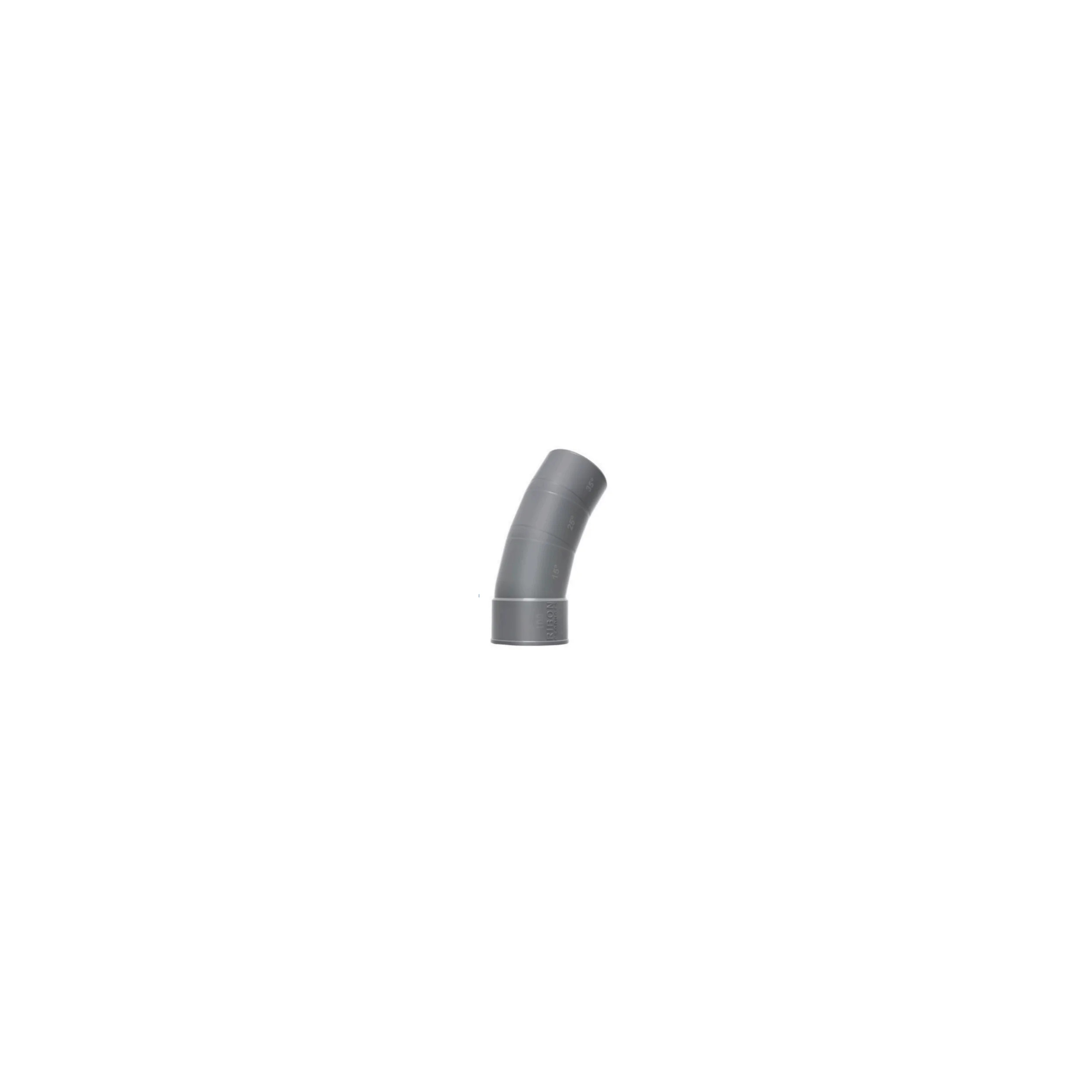

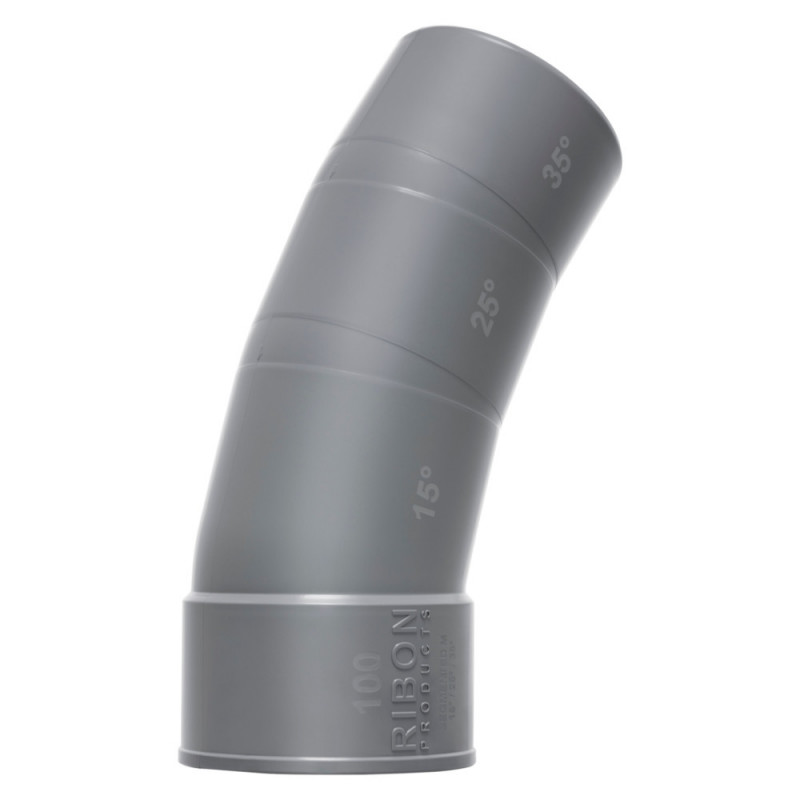

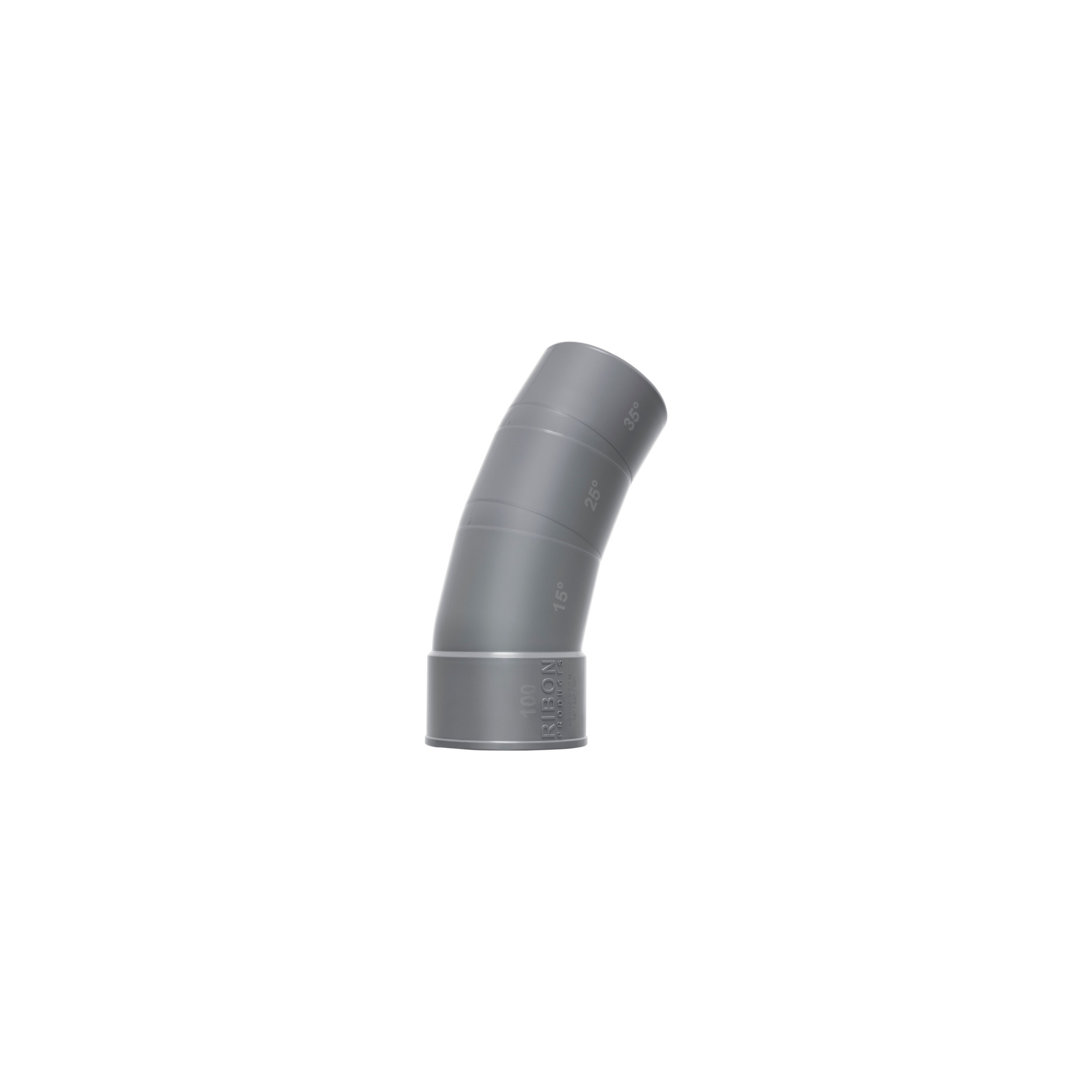

Multi-angle PVC elbow 100 mm 15°/25°/35° breakable male female RIBON reference SEG100M

Type of product:
Multi-angle PVC elbow for drains

Description:
The PVC-U 100 mm (15°/25°/35°) male-female multi-angle elbow is designed for the evacuation and ventilation of wastewater, black water and rainwater, indoors or underground. Thanks to its breakaway design, it offers maximum installation flexibility and adapts to any configuration. Featuring an anti-oval collar, precise calibration and constant-radius internal curvature, it guarantees zero pressure loss and universal compatibility with all pipes and fittings on the market. Made in France, this fitting boasts superior dimensions and thicknesses, excellent impact resistance and 100% recyclable PVC.

Technical specifications :

• Reference: To be completed
• Nominal diameter: 100 mm

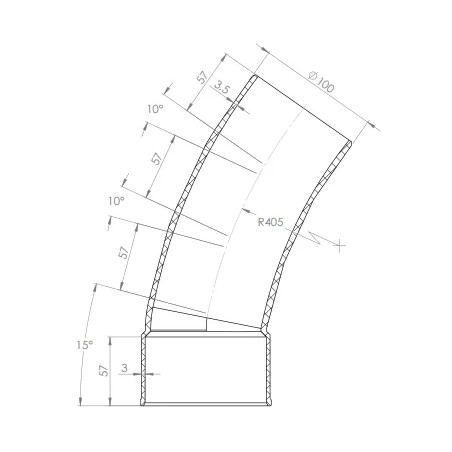

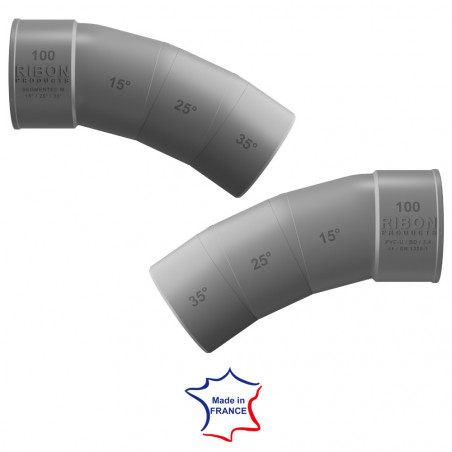

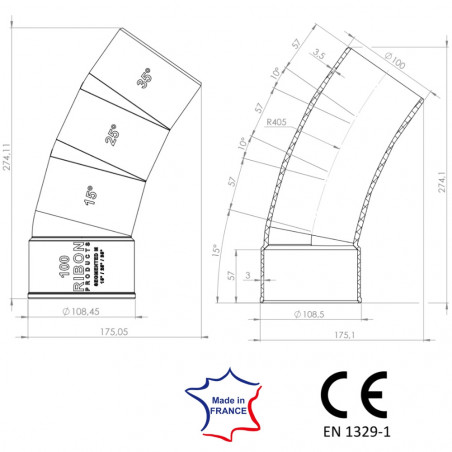

• Available angles: 15° / 25° / 35° (breakable)
• Connection type: Male / Female
• Material: PVC-U (non-microporous polyvinyl chloride)
• Color: Gray
• Application: Wastewater (EU), blackwater (EV), rainwater (EP), indoor or underground (BD)
• Assembly: To be glued - compatible with PVC glue EN 14680 or EN 14814
• Standards: EN 1329-1 (CE)
• Origin: France
• French patent
• Environmental quality: 100% recyclable PVC, usable 15° drop
• Anti-oval collar
• Fine calibration for non-crimping connections
• Constant-radius body, with no internal parting line
• Thicknesses in excess of standards
• Enhanced ovalization and impact resistance

Physical and mechanical resistance :

• Density: 1.41 g/cm³ (ISO 1183-1)
• Vicat class: 80°C (ISO 306)
• Shore D hardness: 80 (ISO 868)
• Tensile strength: 46.5 N/mm² (ISO 527)
• Stretch rupture: 140% (ISO 527)
• Modulus of elasticity: 2950 N/mm² (ISO 178)
• Impact resistance: 50 J/m (ISO180/ASTM D256)
• Reaction to fire: Class VO (ISO180/ASTM D256)

Supplier: RIBON

Reference : SEG100M
