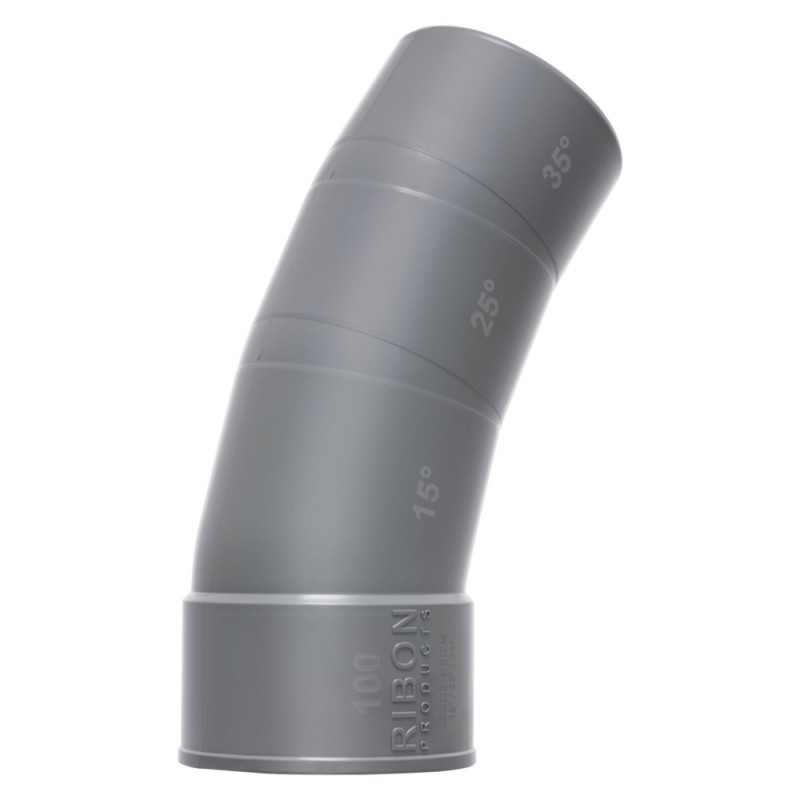

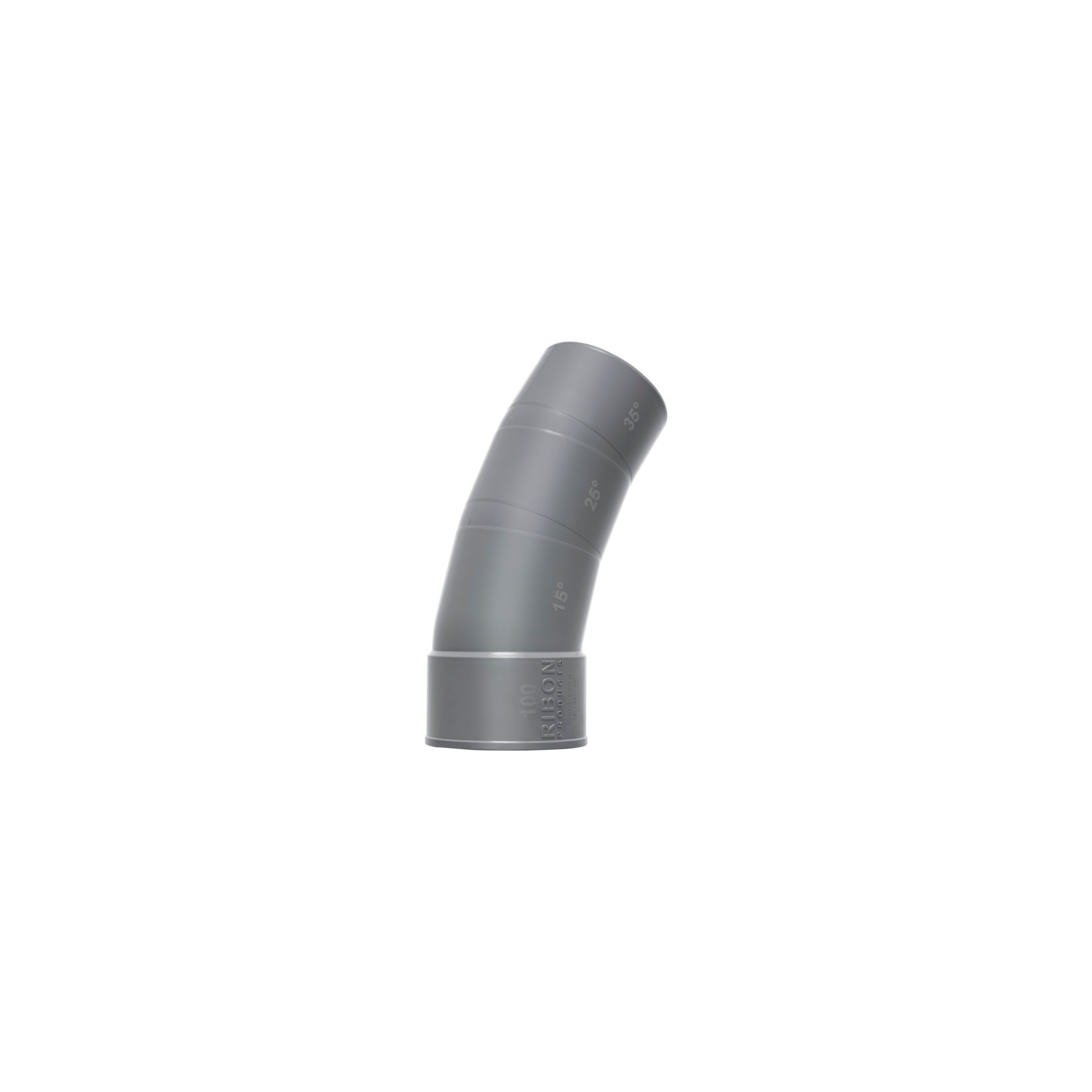

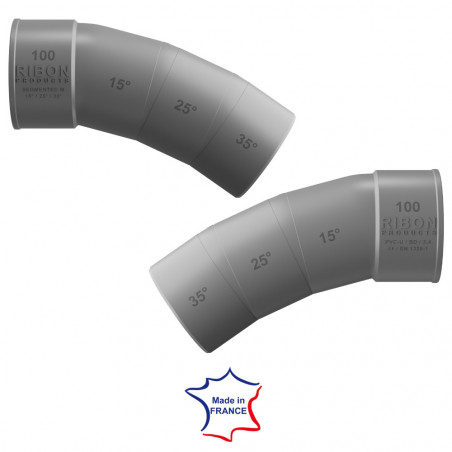

PVC elbow 100 mm multi-angle 15°/25°/35° breakable male female

PVC Elbow 100 mm multi-angle 15°/25°/35° breakable male female RIBON reference SEG100M

Product type:
PVC multi-angle elbow for drainage

Description:
The PVC-U multi-angle elbow 100 mm (15°/25°/35°) male female is designed for the drainage and ventilation of wastewater, sewage, and rainwater, indoors or underground. Thanks to its breakable design, it offers maximum installation flexibility and adapts to all configurations. Equipped with an anti-ovalization collar, precise calibration, and an internal curvature with a constant radius, it ensures no pressure loss and universal compatibility with all pipes and fittings on the market. Made in France, this fitting benefits from dimensions and thicknesses exceeding standards, excellent impact resistance, and 100% recyclable PVC.

Technical characteristics:

• Reference: To be completed

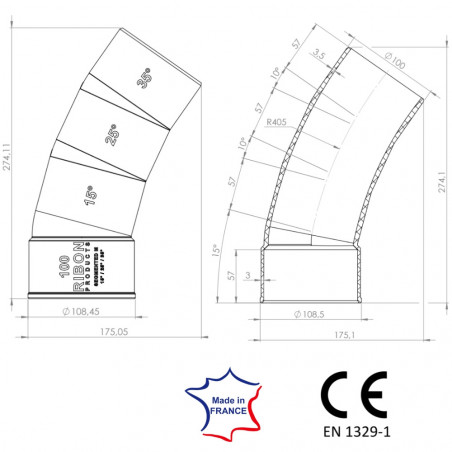

• Nominal diameter: 100 mm

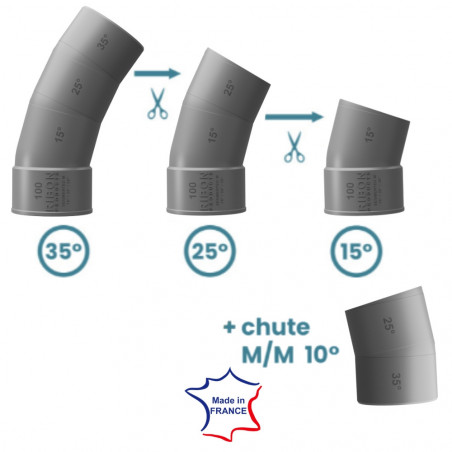

• Available angles: 15° / 25° / 35° (breakable)
• Type of fitting: Male / Female
• Material: PVC-U (non-microporous polyvinyl chloride)
• Color: Gray
• Application: Wastewater drainage (EU), sewage (EV), rainwater (EP), indoor or underground (BD)
• Assembly: To be glued – compatible with PVC glue EN 14680 or EN 14814
• Standards: EN 1329-1 (CE)
• Origin: France
• French patent
• Environmental quality: 100% recyclable PVC, 15° drop usable
• Anti-ovalization collar
• Fine calibration for non-tight connections
• Body with constant radius, without internal joint plane
• Thicknesses exceeding standards
• Enhanced resistance to ovalization and impacts

Physical and mechanical resistance:

• Density: 1.41 g/cm³ (ISO 1183-1)
• Vicat class: 80°C (ISO 306)
• Shore D hardness: 80 (ISO 868)
• Tensile strength: 46.5 N/mm² (ISO 527)
• Elongation at break: 140% (ISO 527)
• Elastic modulus: 2950 N/mm² (ISO 178)
• Impact resistance: 50 J/m (ISO180/ASTM D256)
• Fire reaction: Class VO (ISO180/ASTM D256)

Supplier: RIBON

Reference: SEG100M
