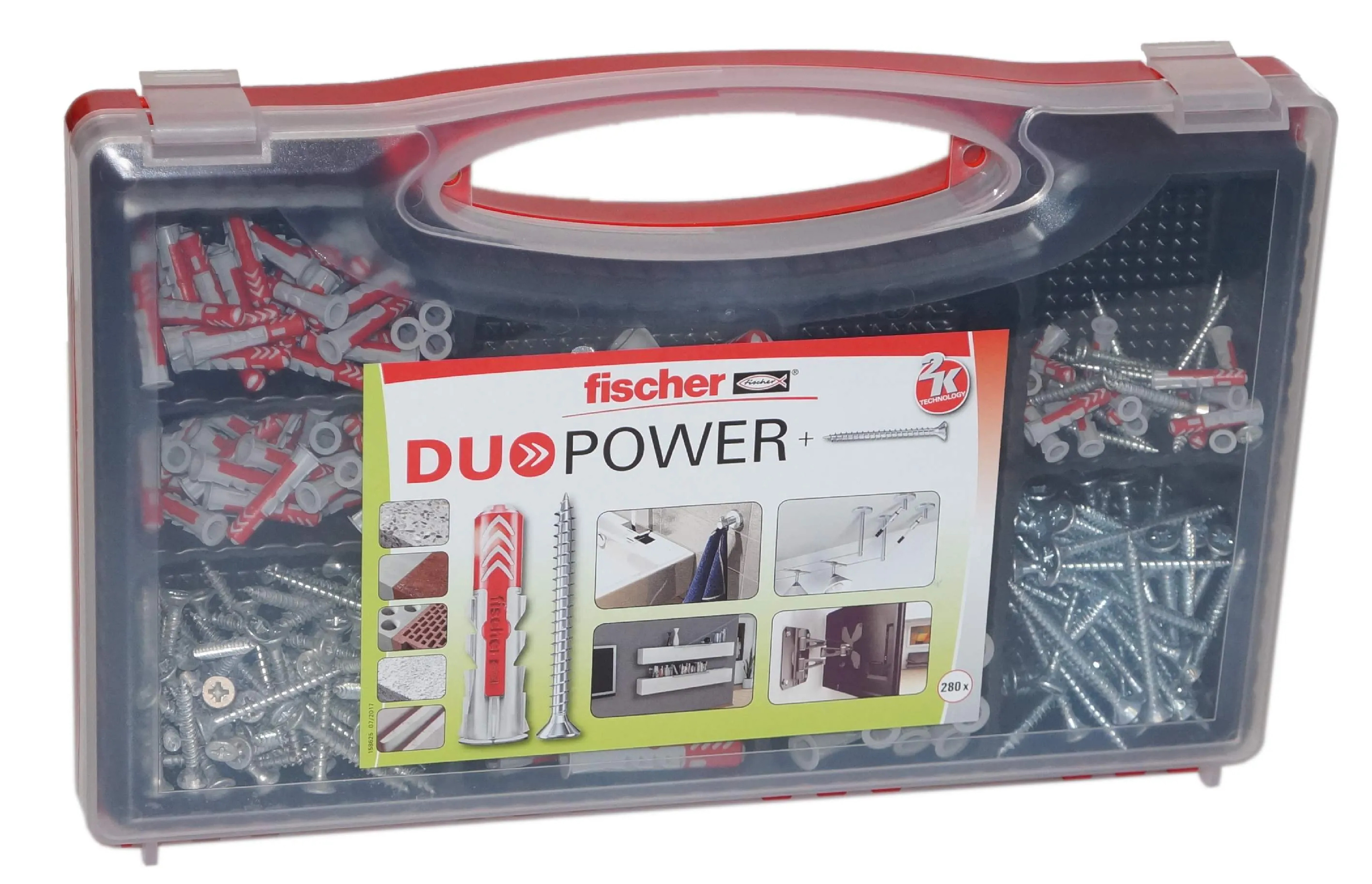

Redbox Duopower 5,6,8,10 plus screws

Materials

• Concrete
• Solid brick
• Solid sand-lime brick
• Cellular concrete
• Brick with vertical perforations
• Perforated sand-lime brick
• Plasterboard
• Plasterboard and fibreboard
• Lightweight hollow concrete block
• Brick or concrete slabs or equivalent
• Natural stone
• Chipboard panels
• Plasterboard
• Solid block of light concrete

Advantages

• Bimaterial anchor for better performance and ingenious operation (expands, expands, forms a knot), depending on the substrate.
• Excellent "feel-good factor". You can feel exactly when the ankle is correctly positioned.
• The dowel is shorter, which ensures quick fixing without time-consuming drilling.
• The narrow flange prevents the peg from slipping in the borehole.
• Anti-rotation lugs prevent the plug from rotating in the hole during installation.

APPLICATIONS

• TV supports
• Lamps
• Wall shelves
• Bathroom cabinets
• Mailboxes
• Frames
• Roller blind
• Curtain rods
• Fixing of washbasins
• Heating and sanitary fixtures
• Bathroom equipment and
• toilet
• Hanging cabinets

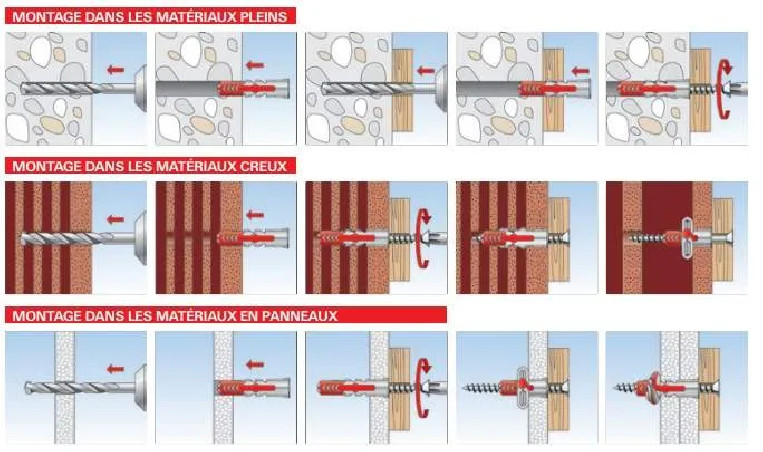

OPERATION

• The DUOPOWER is suitable for standby and through installation.
• The combination of the two materials and the multiple modes of operation (expands, expands, forms a node) broaden the range of applications with significantly higher loads.
• The required length of the screw is determined as follows: length of the plug + thickness to be fixed + diameter of the screw.
• Suitable for wood screws, chipboard screws and double threaded screws.
• In the case of sheet and hollow materials, the smooth part of the screw must not be greater than the thickness to be fixed.
• The distance to the edges must be at least equal to
