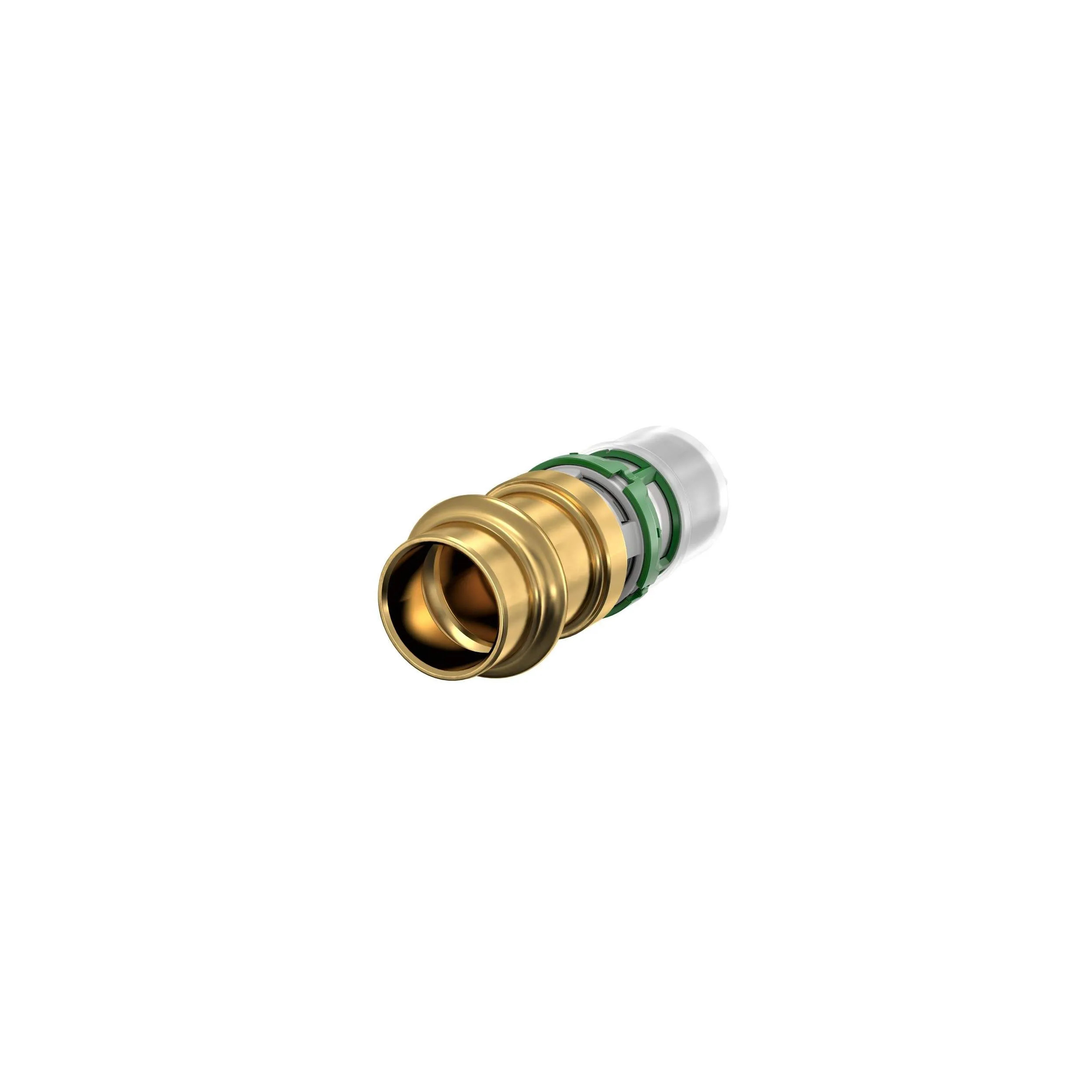

Passerelle MultiSkin 16 mm copper press connection, multi-layer 16 x 2
€17.35
Tax Included
(14.46 € HT)
Référence COMAP : 7871W1616
Emplacement magasin : B1-F-017
Passerelle MultiSkin 16 mm copper press connection, multi-layer 16 x 2 COMAP part no. 7871W1616
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
MultiSkin gateway fitting, 16 mm copper crimp, 16 x 2 COMAP multilayer, part no. 7871W1616.
Description: Gateway copper 16 mm - Multilayer 16x2
Code: 7871W1616
Model: 7871W - Gateway Copper (Profile V) - Multilayer (Profile TH)
Dimensions : Prof.V14 - Skin 16x2
Technical specifications :
MultiSkin press fittings are designed for the following applications:
Domestic water: +5 °C to +95 °C (operating temperature) and 10 bar (maximum operating pressure).
Heating and cooling: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
Rainwater: -10°C to +95°C (operating temperature) and 10 bar (maximum operating pressure).
MultiSkin press fittings are compatible with TH, H and U crimp profiles.
Low connection pressure drop.

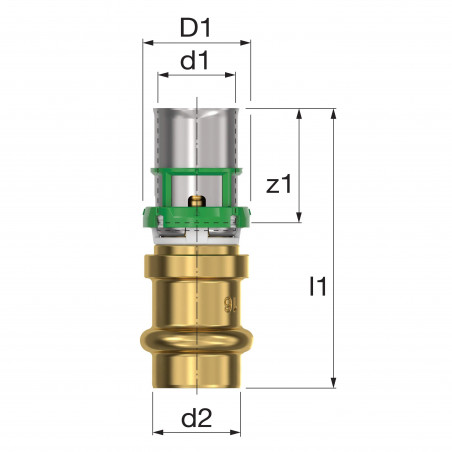

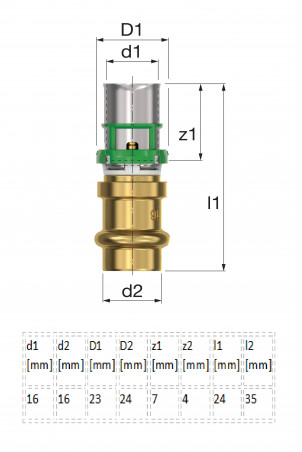

Dimensions:
| d1 [mm] | d2 [mm] | D1 [mm] | D2 [mm] | z1 [mm] | z2 [mm] | l1 [mm] | l2 [mm] |
| 16 | 16 | 23 | 24 | 7 | 4 | 24 | 35 |
Description:
The Comap MultiSkin system for multilayer tubes combines all the advantages of plastic and metal tubes. A lightweight, flexible tube with high resistance to expansion (internal aluminum layer). A high-quality brass metal fitting, quick to install and reliable.
Crimp fittings are supplied with EPDM O-rings and feature the "not tight if not crimped" function.
Performances:
The crimping solution allows a fitting to be connected in seven seconds and avoids the risks associated with soldering.
Crimp fittings compatible with TH, H and U profiles, with all major tool brands.
Improved hydraulics with reduced pressure losses (by an average of 17% compared with our previous range).
11 Items
Data sheet
- Length (cm):
- 5.9
- Weight (kg) :
- 0.112
- Packaging:
- 1
- Main materials :
- Copper
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3430651463997
- EAN-13
- 3430651463997
- Location
- B1-F-017
- Reference to display
- COMRA7871W1616
- Supplier reference
- 7871W1616
