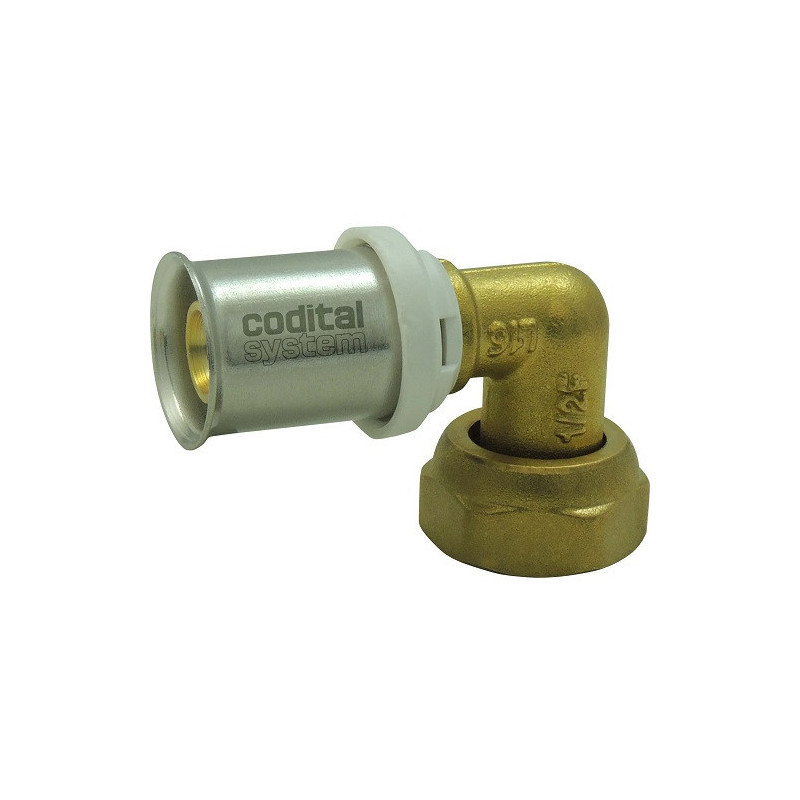

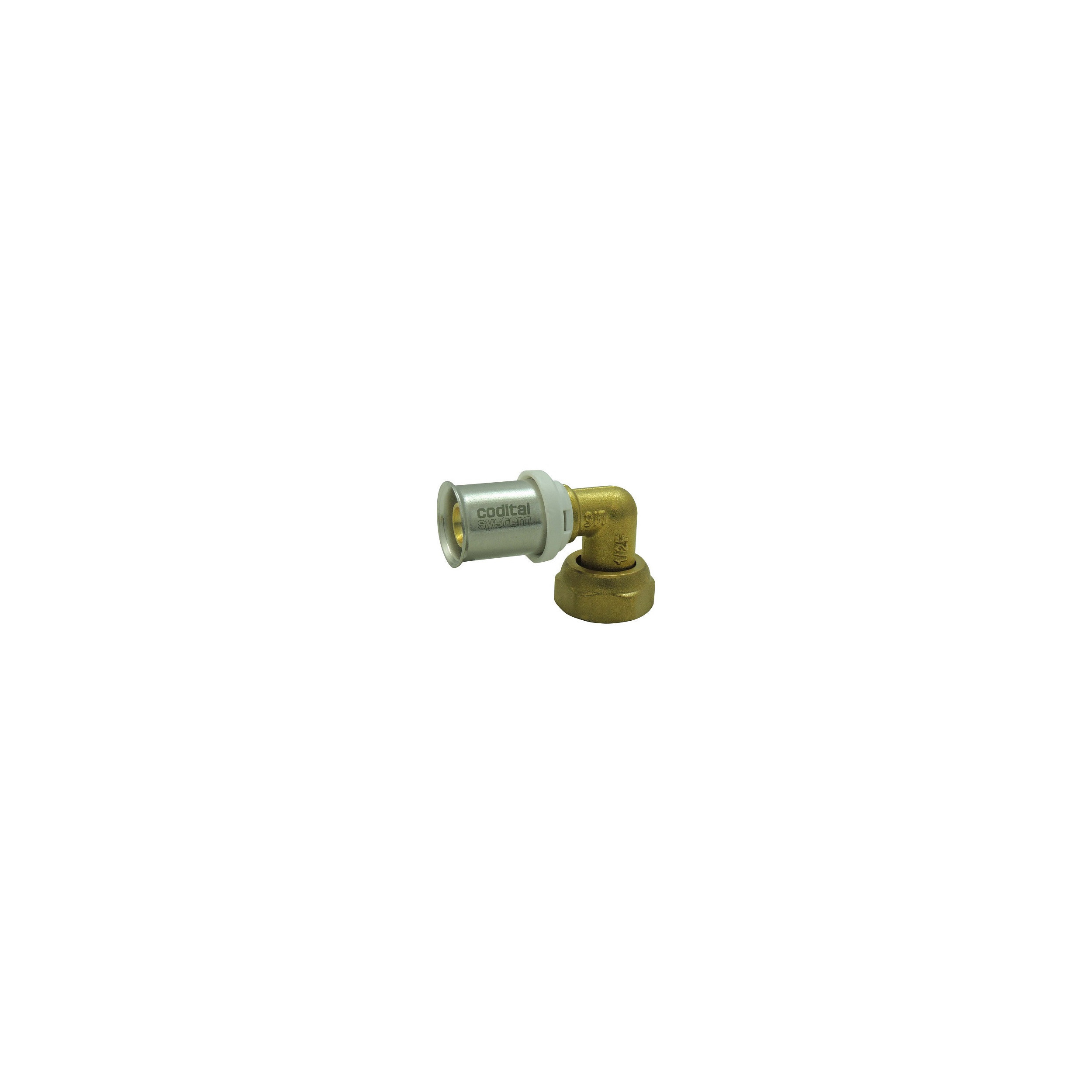

CODITAL brass elbow multicouche female swivel nut 20x27 for tube diameter 16mm

CODITAL Multilayer Brass Elbow Female Swivel Nut 20x27 for Tube Diameter 16mm - Multilayer Fittings Diameter 16

This multilayer brass elbow from the CODITAL brand features a female swivel nut of 20x27, designed for a tube with a diameter of 16mm. It is part of the CODITAL system's series 25, with a TH profile.

This product is NF and ACS certified, ensuring its compliance with quality and safety standards. It can withstand a nominal pressure of 10 bars and operates within a temperature range of -20 to 95°C.

The elbow body is made of CW617N-4MS brass, with sealing ensured by a double EPDM O-ring. It has a plastic stop with a viewing window and a stainless steel 304 crimping sleeve. The female connection complies with ISO 228-1 (BSPP) standard.

Technical Specifications

• Weight: 0.05 kg
• Packaging: 1
• Nominal Diameter: 16 mm
• Threads: 3/4 (20x27)
• Main Materials: Brass
• Total Traceability: codital, NF, ACS, size, batch, pressure class
• Individual label with barcode and QR code for direct access to technical sheets
• Reference: CODCO2025960162000
• Supplier Reference: 2025960162000
