CORAL 2PF (CORAL 2PF)

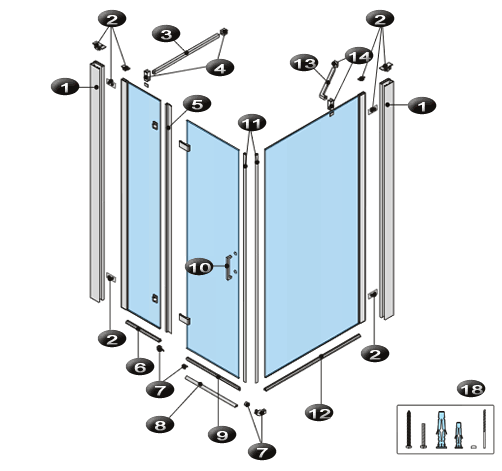

NOVELLINI CORAL 2PF (BOX ELYSIUM, parois de douche) exploded view: 15 items. Click an item or a part in the list to see its references and finishes, then order it online or request it if it is not listed yet.
Click an item on the exploded view, or pick the part from the list.
-
10
P01CODIST
2 finishes
-
20

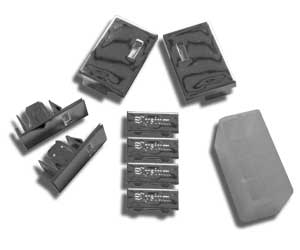

R01P0CODI1-K
-
30
BARRA CORAL 2P
sub-assembly
-
40

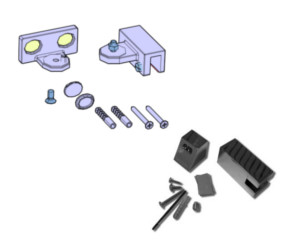

ACCESSORI BARRA CORAL
sub-assembly
-
50
R50COR01-B
-
60
R51EL2160-TR
-
70

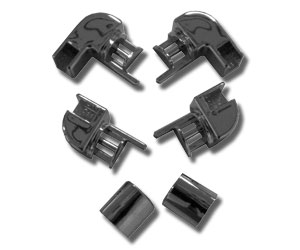

R09CORGF1-K
-
80

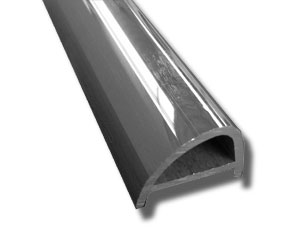

P10CORGF
2 finishes
-
90

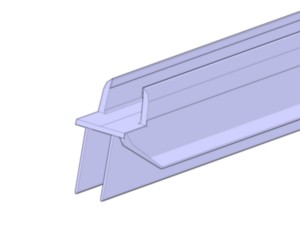

R51CORMO2PF
sub-assembly
-
100
R40MAGIN1
sub-assembly
-
110

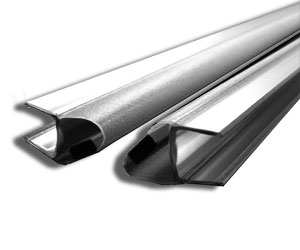

R10CORGF1-B
-
120

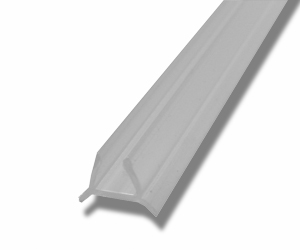

R51CORALF1-TR
-
130

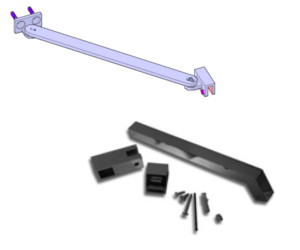

BARRA CORAL FIX
sub-assembly
-
140
ACCESSORI BARRA CORAL
sub-assembly
-
180

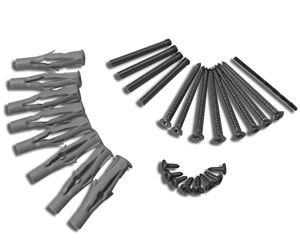

R01CORGF1
