LUNESPENTAGP (LUNESPENTAGP)

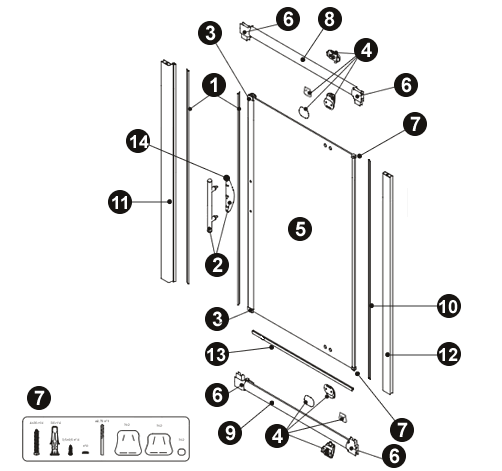

NOVELLINI LUNESPENTAGP (LUNES, parois de douche) exploded view: 14 items. Click an item or a part in the list to see its references and finishes, then order it online or request it if it is not listed yet.
Click an item on the exploded view, or pick the part from the list.
-
10
R10LUGI1
-
20
R40MALU1
4 finishes
-
30
R04LUGI1
3 finishes
-
40
R02LUGI1
5 finishes
-
50

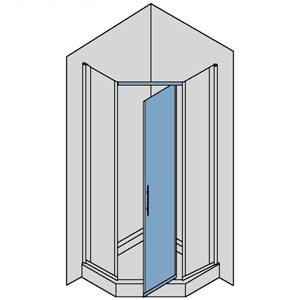

LUNESG66
16 finishes
-
60
R05LUGI1
3 finishes
-
70
R01LUGI1
3 finishes
-
80

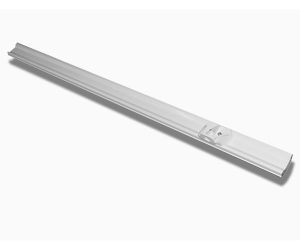

LUNES PENTAG BINSUP
sub-assembly
-
90
LUNES PENTAG BININF
sub-assembly
-
100
R50LUGI1-TR
-
110
P02LUGIBST
4 finishes
-
120
P02LUGIAST
4 finishes
-
130
R51LUCG901-TR
-
140
R40CMANLU2
3 finishes
