SUN 3 (SUN 3)

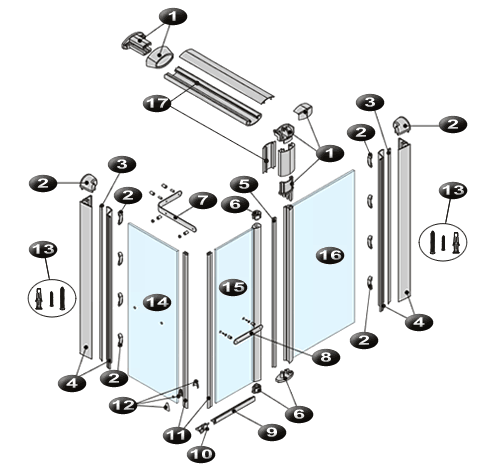

NOVELLINI SUN 3 (BOX ELYSIUM, parois de douche) exploded view: 17 items. Click an item or a part in the list to see its references and finishes, then order it online or request it if it is not listed yet.
Click an item on the exploded view, or pick the part from the list.
-
10
R801SUN-S
-
20
R04SUN01-S
-
30
R50SUN01-TR
-
40
P01SUNST-B
-
50
R50SUNA1-TR
-
60
R02SUN
sub-assembly
-
70

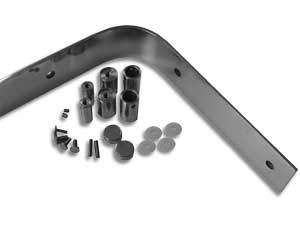

MANIGLIASUNLATERALE
sub-assembly
-
80
MANIGLIASUNMOBILE
sub-assembly
-
90
GUARNIZANTASUN
sub-assembly
-
100
R05SUN01-TR
-
110
R10SUN01-B
-
120

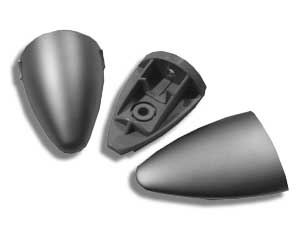

R08SUN3-S
-
130
R01SUN01
-
140

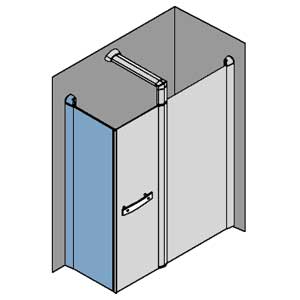

SUN 3AL0
sub-assembly
-
150

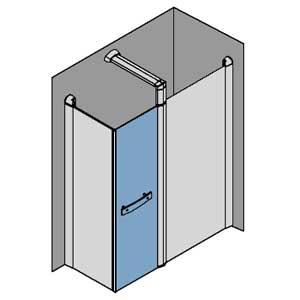

SUN3P
sub-assembly
-
160

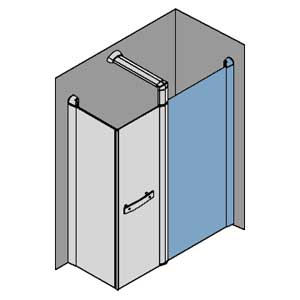

SUN 3AF0
sub-assembly
-
170
R80SUN-B
