VISION 2P (VI12P)

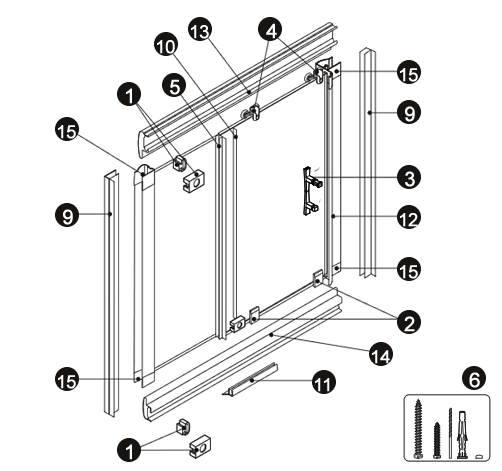

NOVELLINI VISION 2P (VISION, parois de douche) exploded view: 13 items. Click an item or a part in the list to see its references and finishes, then order it online or request it if it is not listed yet.
Click an item on the exploded view, or pick the part from the list.
-
10
R08ALAR1
2 finishes
-
20
R03BOALIN1
3 finishes
-
30

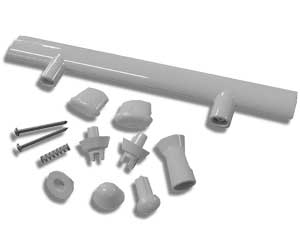

R40MAEV1
2 finishes
-
40
R03BOALSU1
3 finishes
-
50
R50ALAR
2 finishes
-
60
R01LUPO1
3 finishes
-
90
P01VISST
3 finishes
-
100
R50FRMO1
2 finishes
-
110
R51SVFMO1-TR
-
120
R10VF2PR1
2 finishes
-
130

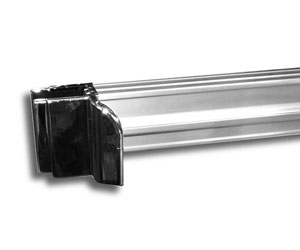

VISION2PBINSUP
sub-assembly
-
140

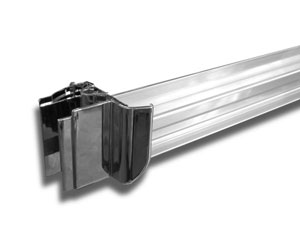

VISION2PBININF
sub-assembly
-
150

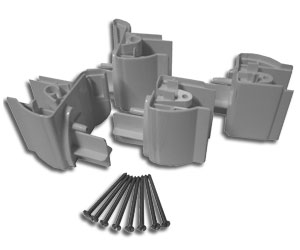

R04VI2PR1
2 finishes
