VISION R SLIDER (VI1R SLIDER)

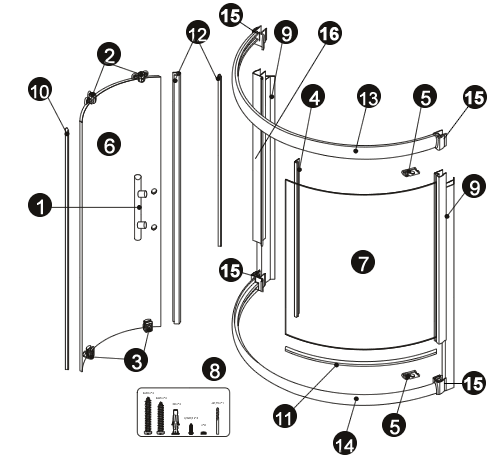

NOVELLINI VISION R SLIDER (VISION, parois de douche) exploded view: 16 items. Click an item or a part in the list to see its references and finishes, then order it online or request it if it is not listed yet.
Click an item on the exploded view, or pick the part from the list.
-
10
R40MAEV1
2 finishes
-
20
R03BOALSU1
3 finishes
-
30
R03BOALIN1
3 finishes
-
40
R50ALAR
2 finishes
-
50
R08ALAR1
2 finishes
-
60

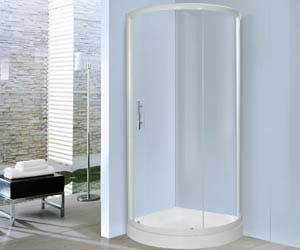

VISIONRS90A
sub-assembly
-
70

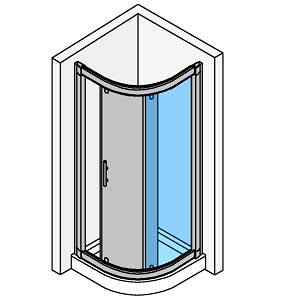

VISIONRS90F
9 finishes
-
80
R01LUPO1
3 finishes
-
90
P01VIRSST
3 finishes
-
100
R50FRMO1
2 finishes
-
110
R51SVFMO1-TR
-
120
R10VF2PR1
2 finishes
-
130

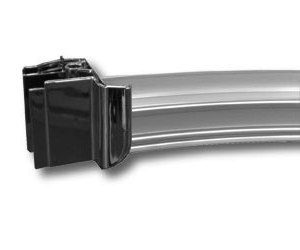

BINSUPVRS
sub-assembly
-
140

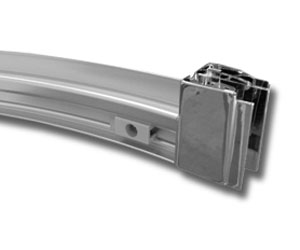

BININFVRS
sub-assembly
-
150
R04VI2PR1
2 finishes
-
160

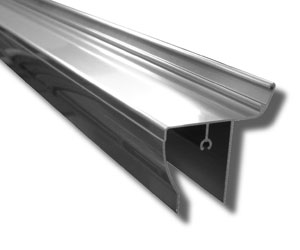

P02VI2PST
3 finishes
