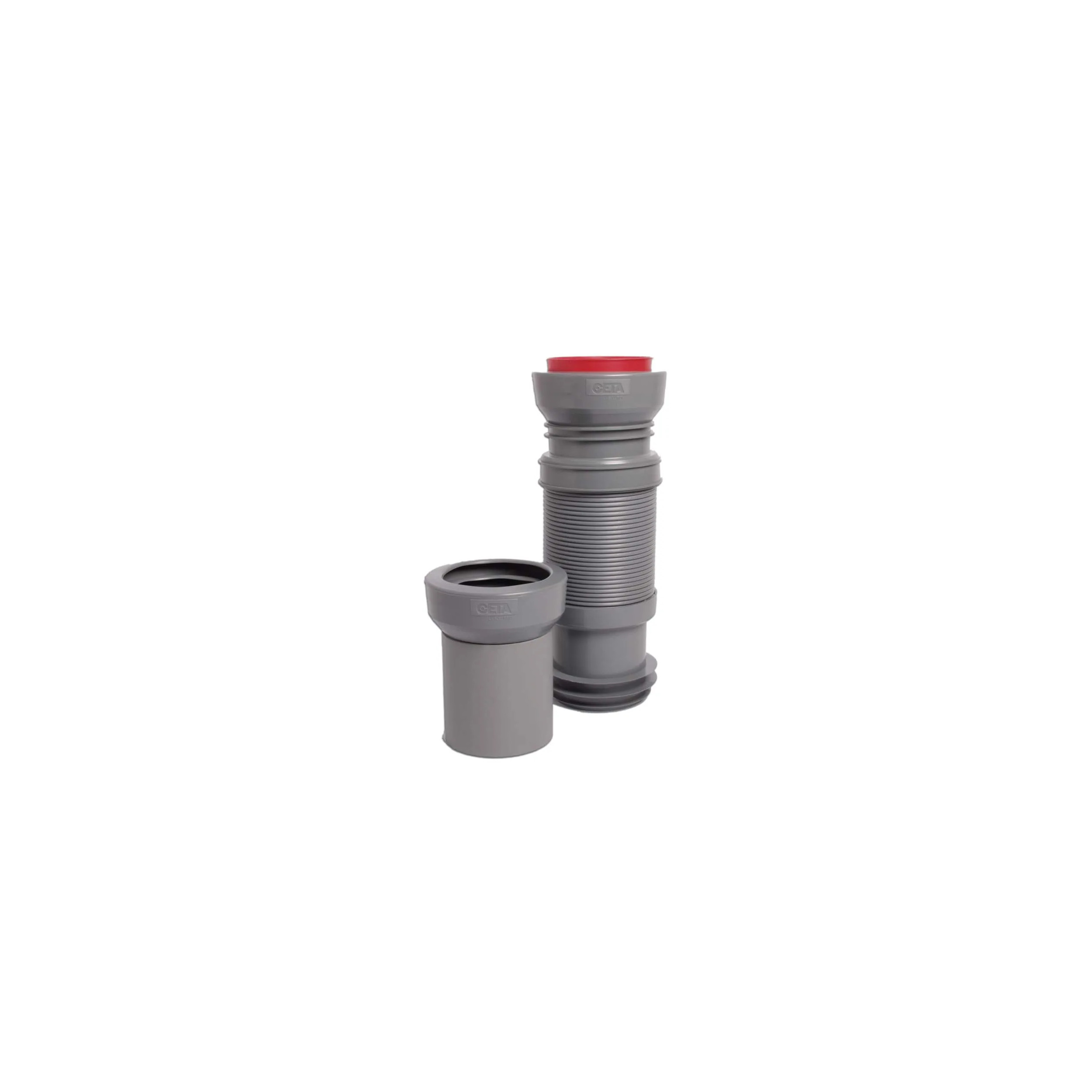

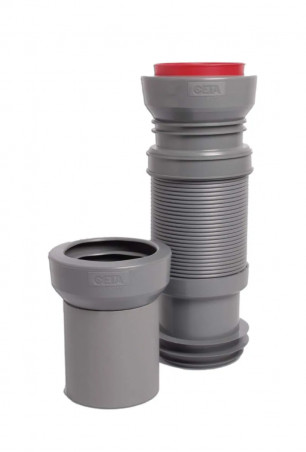

Multibati flexible pipe for wall-hung toilets

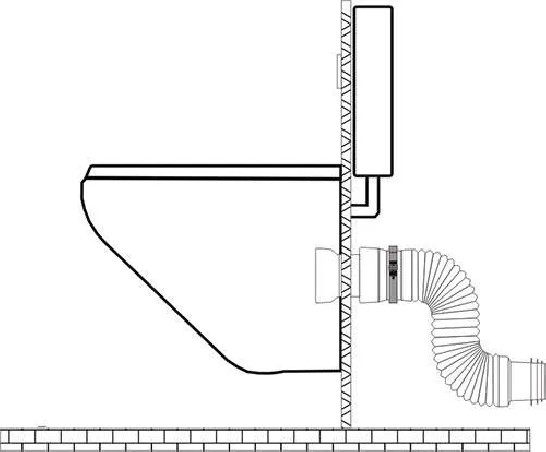

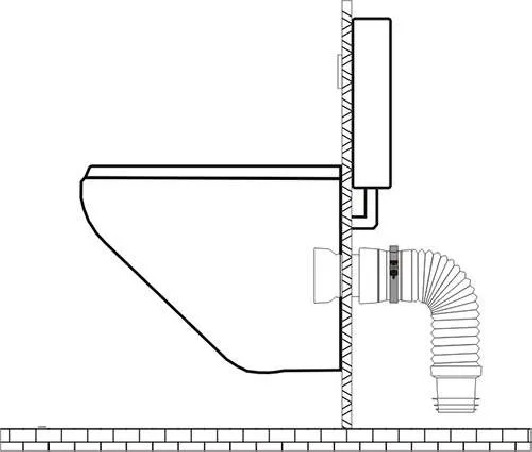

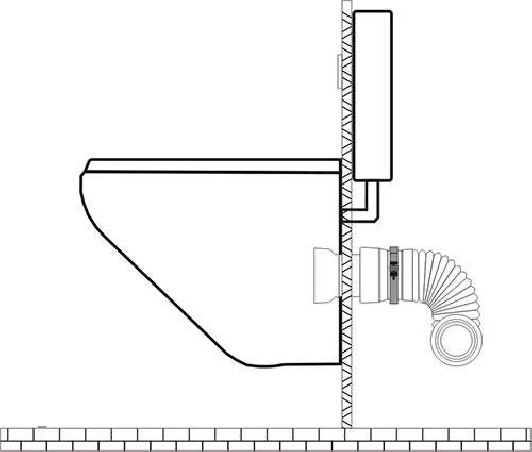

The Multibati® flexible extensible pipe has been specially designed and manufactured for the installation of wall-hung toilets. Its steel reinforced spiral tube allows the pipe to keep the given shape. Its upper sleeve adapts to all support frame collars.

Easy to assemble

• Attach the top sleeve to the frame collar.
• Shape the tube*.
• Insert the lower sleeve into the drain line.
• Cut the adapter sleeve to the required length and fit it into the waiting pipe.
• Put the ceramic in place (2 thin and flexible sealing lips).
  * respecting the rules of the art: maintain a sufficient slope of evacuation

Highlights

Extensible tube

• Fast evacuation: spiral shape + smooth interior
• Adaptable to all situations: compressible + extendable + rotatable
• Perfect seal: the tube keeps its shape and leaves the sleeves free of stress

Lip fittings

• Quick and clean installation: no gluing on Ø 100 and 110
• Long-lasting waterproofing: made of polyolefin, an unalterable material
• Removable

Technical data

MATERIALS

Sleeve: Polyolefin / Rigid tube: PVC

Wall of the semi-rigid tube: Polyolefin

Tube ring: Steel

Cap: Polyolefin COLOURS Grey

TEMPERATURE RESISTANCE

Min = - 5° C / Max = 75° C

CHEMICAL RESISTANCE

Acids = Very good

Alcalis = Excellent

Solvents = Good

IMPLEMENTATION

CONNECTION

Ceramic Ø 102 mm ± 5 mm.

Any support frame collar.

Ø 100 and 110 mm pipes.

QUICK ASSEMBLY

Fit the upper pipe sleeve into the collar on the support frame and fit the lower sleeve into the drain line.

Cut the PVC pipe to length. Push the straight sleeve onto the PVC pipe and push it onto the standby pipe. Use the red cap if the ceramic is to be fitted later.

PRECAUTIONS FOR USE

Do not force the part.

Exclusive use of domestic wastewater.
