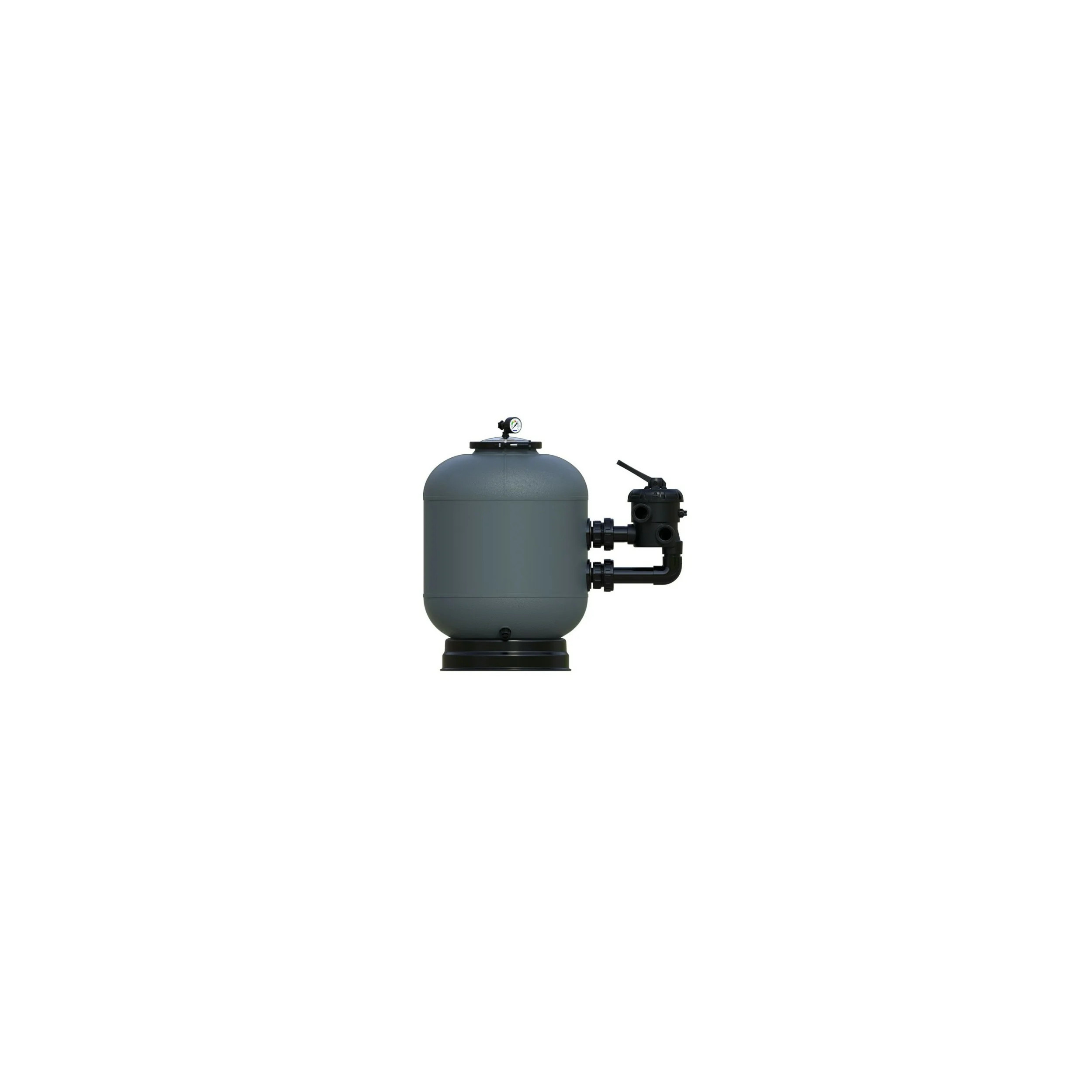

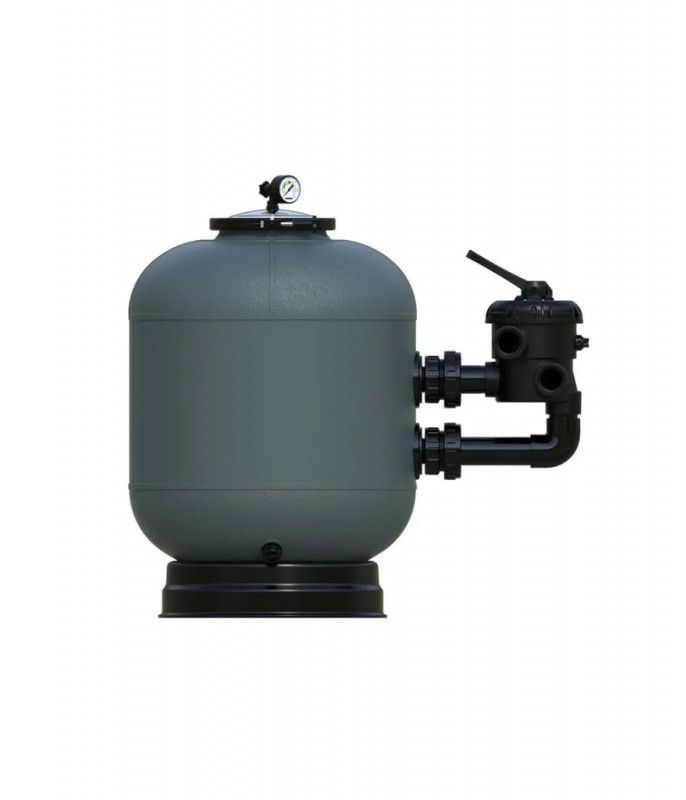

Sand filter 9m³/h Astral Piscine Galactic Ø500mm side

GALACTIC SIDE SAND FILTER 9M3/H DIAMETER 500MM - ASTRAL

The Galactic sand filter from AstralPool is designed for residential pools. With a diameter of 500 mm, it includes a side multiport valve, a pressure gauge, and a sight glass as standard. It offers a nominal flow rate of 9 m³/h and supports a maximum working pressure of 2.4 bar.

This model is compatible with 50 mm (1½") hydraulic connections and can filter pools up to a maximum volume of 72 m³. The recommended sand load is 100 kg, with the possibility of using filter glass.

Technical specifications

• Brand: AstralPool
• Range: Galactic
• Type: Side sand filter
• Filter diameter: 500 mm
• Hydraulic connections: 50 mm / 1½"
• Nominal flow rate: 9 m³/h
• Maximum pool volume: 72 m³
• Maximum working pressure: 2.4 bar
• Sand load: 100 kg
• Glass load 0.5-1 mm: 88 kg
• Glass load 1-3 mm: 0 kg
• Maximum water temperature: 35 °C
• Multiport valve: Included – AstralPool NG 20569 (side mount)
• Pressure gauge: Included as standard
• Sight glass: Included as standard
• Net product weight: 15 kg
• Packaging volume: 0.22 m³
• Dimensions: D 500 mm; A 399 mm; H 755 mm; M 505 mm; N 440 mm
• Standard: UNE EN 16713-01
• Compatibility: Designed for residential pools; 50 mm / 1½" hydraulic connections
• Package contents: AstralPool NG 20569 multiport valve, pressure gauge, sight glass
• Warranty: 2 years
• Manufacturer: Astral Piscine
• Manufacturer reference: 77336
• Internal reference: ASTFI77336
