Adjustable pressure reducing valve 1 to 5.5 bar double female 15x21

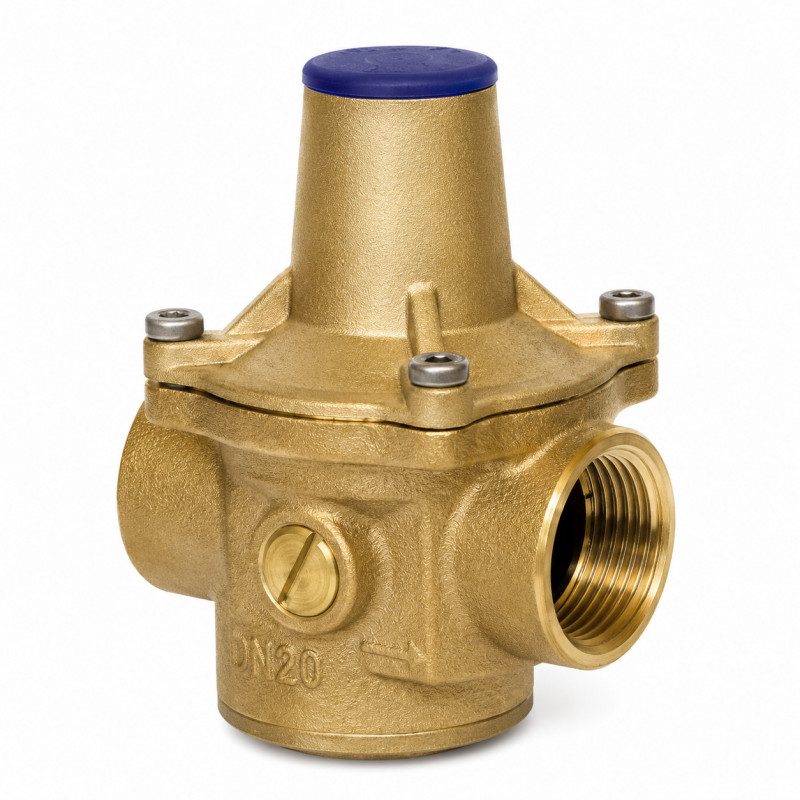

Adjustable Pressure Reducing Valve 1 to 5.5 bar Double Female

The Desbordes 7 BIS pressure reducing valve is designed to maintain a constant and adjustable downstream pressure between 1 and 5.5 bar. It operates both in flow and at zero flow, ensuring high flow with low pressure loss.

Made of bronze, it is resistant to scale and impurities, guaranteeing maintenance-free operation. This model is delivered pre-set at 3 bar and complies with EN 1567 standard.

It is intended for water networks and can also be used as a regulator or pressure reducer for certain neutral gases and compressed air, under specific conditions.

Technical Specifications

• Type: Adjustable Pressure Reducing Valve
• Brand: Desbordes
• Range: 7 BIS
• Connection: Double female threaded cylindrical gas G (BSP)
• Threading: 15x21 (1/2")
• DN: 15 mm
• Admissible operating pressure (PFA water): 16 bar
• Downstream pressure adjustment range: 1 to 5.5 bar
• Factory setting: 3 bar
• Downstream pressure gauge connection: 1/4"
• Drain connections: On each side of the tank
• Tank material: Bronze
• Membrane: EPDM
• Compatible fluid: Water
• Minimum service temperature: -10 °C
• Maximum continuous service temperature: 80 °C
• Complies with standard: EN 1567
• Maintenance-free
• Resistant to scale and impurities
• High flow with low pressure loss
• Maintains stable downstream pressure even with upstream pressure variations
• Warranty: 2 years
• Origin: made in Europe
• Weight: 0.5 kg
• Manufacturer: Danfoss Socla
• Manufacturer reference: 149B7209
• Internal reference: DESREJ15

Instructions for Use

• The downstream setting is given as indicative according to EN1567. Possibility of pre-setting at 3 bar. The adjustment screw allows increasing the pressure by tightening it clockwise.

Observations

• The sheet mentions an adjustment range of 1 to 5.5 bar and a possibility of pre-setting at 3 bar. The reference 149B7209 appears explicitly in the product reference table.
