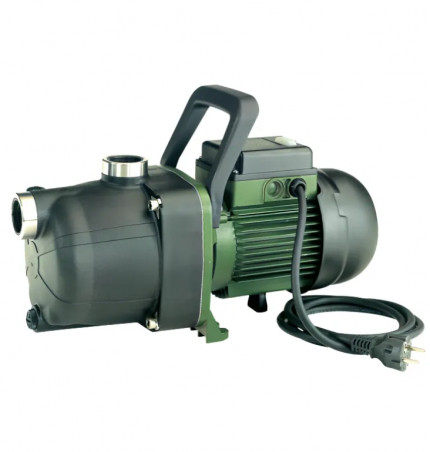

Garden-Com 62 Mono pump

General characteristics:

Excellent suction capacity even in the presence of
of air bubbles.
The GARDEN version is equipped with a handle to facilitate
transport and 2 m of power cable type
HO7RN F with electrical plug and switch.

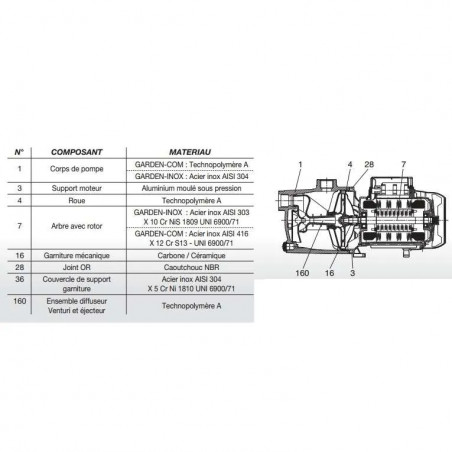

Pump
Stainless steel pump body for the Garden-Inox,
in technopolymer for the Garden-Com.
Impeller, diffuser, venturi tube in technopolymer.
Carbon/ceramic mechanical seal.
Ceramic packing support disc
in stainless steel.
Die-cast alumunium engine mount.

Engine
Closed fan-cooled asynchronous motor
for continuous service (S1).
Rotor mounted on ball bearings, greased for life
and oversized to ensure proper operation
quiet and long lasting.
Built-in ammeter protection and capacitor
incorporated inside the terminal block (IP55 protection).
Construction characteristics according to
IEC 2-3/IEC 61-69 (EN 60335-241).
Motor protection class: IP44.
Insulation class: F.
Technopolymer fan cover.
IE 2 high efficiency three-phase motor from 0.75 kW.

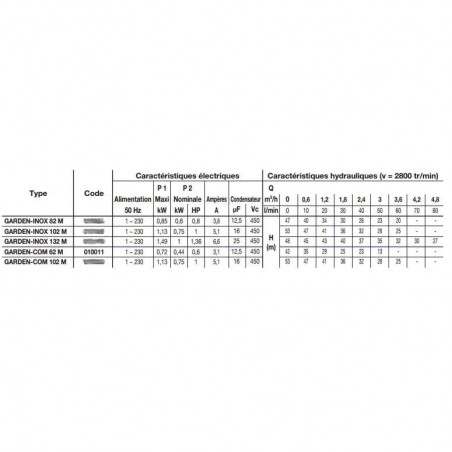

Technical specifications:

Use

Operating range: flow rate up to 5.4 m3
/h with H.M.T. up to 54 m W.C.
Maximum operating pressure: 8 bar (6 bar for Garden-Com).
Maximum ambient temperature: 40 °C.
Liquid temperature range :
- 0 °C to + 35 °C for domestic use (EN 60335-2-41),
- 0 °C to + 45 °C for other applications with Garden Inox.

Item code

010011

Power supply voltage in Volts

Mono 230

Power KW (Unit.)

0,44

Absorbed unit amperage (A.)

3,1

Flow rate/pressure (M3h./bars)

1.8 / 2.5

Capacitor in µF.

12,5

Length of power cable (mt.)

2

Suction diameter

F.1"

Discharge diameter

F.1"

Delivered with power supply.

Standard + ground 230V.

Length in mm

425

Width in mm

170

Height in mm

268

Gross weight (KG.-Packed)

8

+ More info. on our documents

Yes, see attached list

Factory colour code

Green RAL 6001
