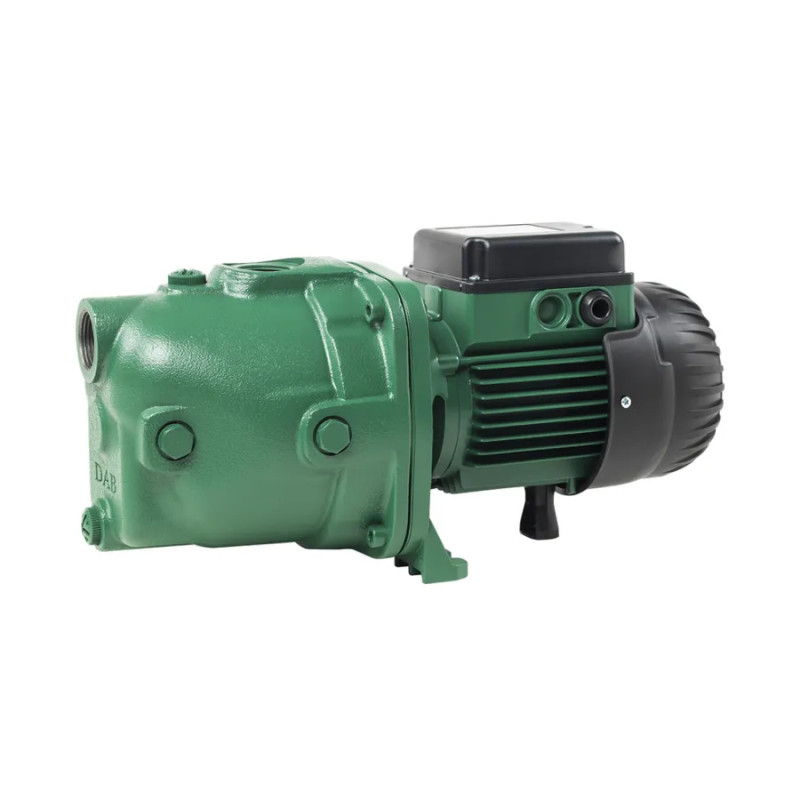

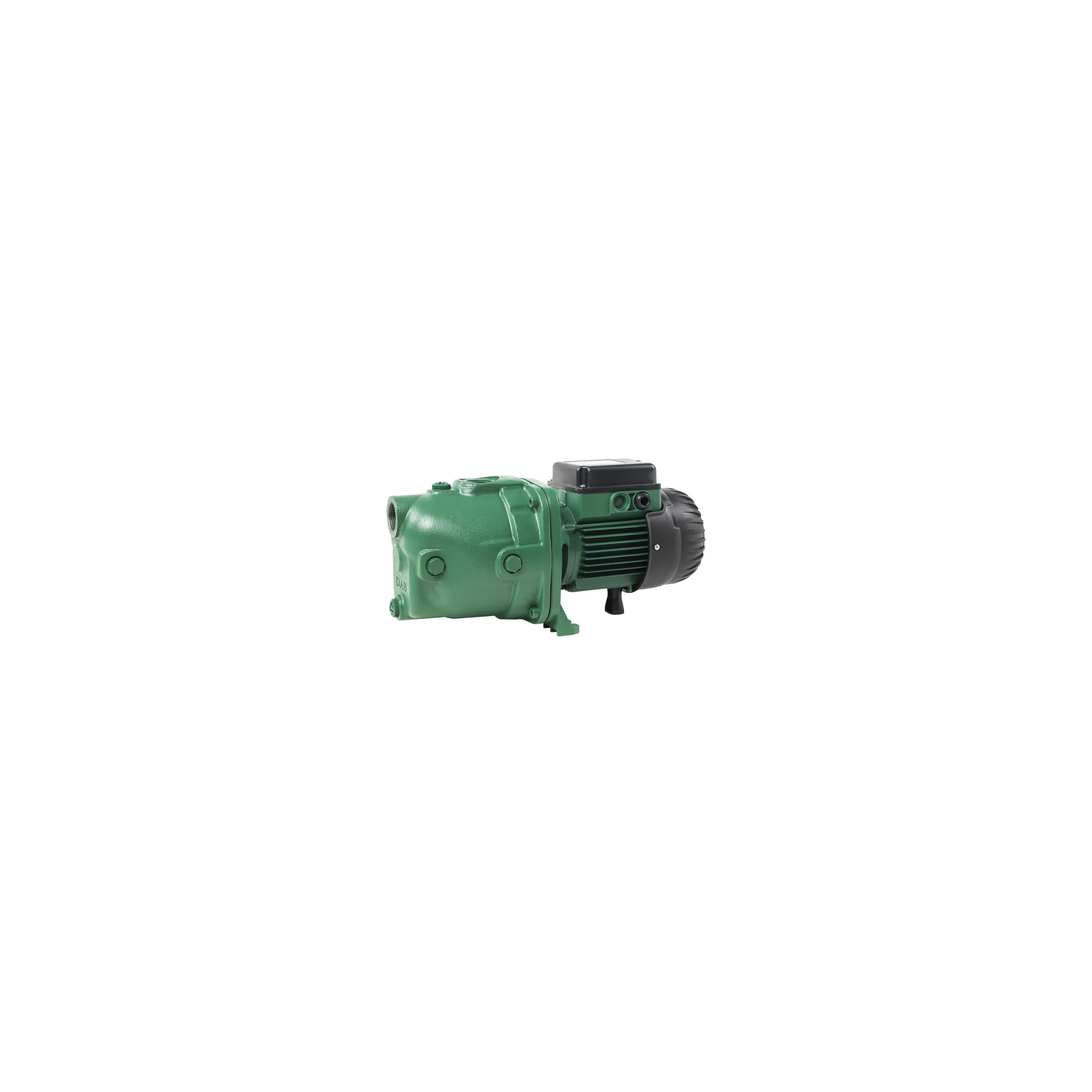

Jet 132 Mono 1.4 HP self-priming surface pump

Self-priming surface pump Jet 132 Mono 1.4 HP JETLY reference 016132.

Product type: Clear water surface pump

Description:

Designed for integrated irrigation and domestic pressure boosting, the Jet 132 pump from DAB is a reference in the world of pumps. Equipped with the venturi system, it offers a great suction capacity up to -8 meters, highly appreciated by its users. This self-priming single-cell pump is perfect for drawing water from rivers, lakes, tanks, or shallow wells. Versatile, it is suitable for uses such as automatic irrigation, feeding troughs, washing, cleaning, and fluid transfer, meeting domestic and agricultural needs.

With a robust cast iron body, although not ACS compliant for use with drinking water, this pump is ideal for increasing pressure in domestic or collective homes.

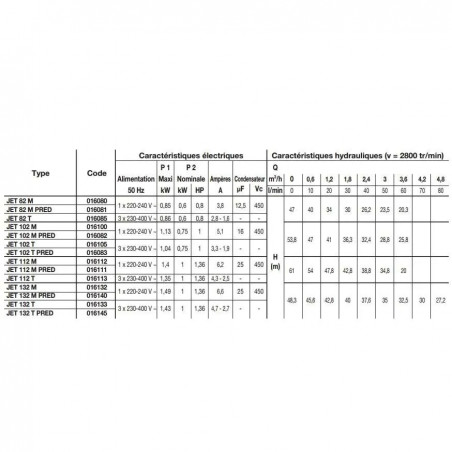

Technical Specifications:

• Model: Jet 132 Mono
• Pump body material: Cast iron
• Discharge diameter: 1'' Female
• Suction diameter: 1'' Female
• Packaging dimensions (L x W x H): 470 x 244 x 224 mm
• Weight with packaging: 14.6 kg
• Delivered power (P2): 1 kW
• Motor power: 1.4 HP
• Supply voltage: 1 x 230V
• Nominal current: 6.6 A
• Motor protection rating: IP 44
• Terminal box protection rating: IP 55
• Insulation class: F
• Standard voltages: single-phase 220/240 V - 50 Hz, three-phase 230/400 V - 50 Hz
• Maximum flow rate: 4.8 m³/h

Usage Characteristics:

• Usage range: from 0.6 to 4.8 m³/h with head up to 60 meters of C.E.
• Pumped liquid: Clean, without solid or abrasive bodies, non-aggressive (supports a limited presence of sand in the water), close to water characteristics.
• Liquid temperature range: from 0 °C to + 35 °C in domestic use (EN 60335-2-41).
• Maximum ambient temperature: + 40 °C.
• Maximum service pressure: 8 bars (800 kPa).
• Installation: Fixed in horizontal position.

Advantages:

• Great suction capacity: Up to -8 meters thanks to the venturi system.
• Versatility: Suitable for various uses such as automatic irrigation, feeding troughs, washing, cleaning, and fluid transfer.
• Robustness: Cast iron body for increased durability.
• Efficiency: High-efficiency IE2 three-phase motor for optimal performance.
• Easy Installation: Fixed in horizontal position, with installation capability in various conditions.

Supplier: JETLY

Reference: 016132
