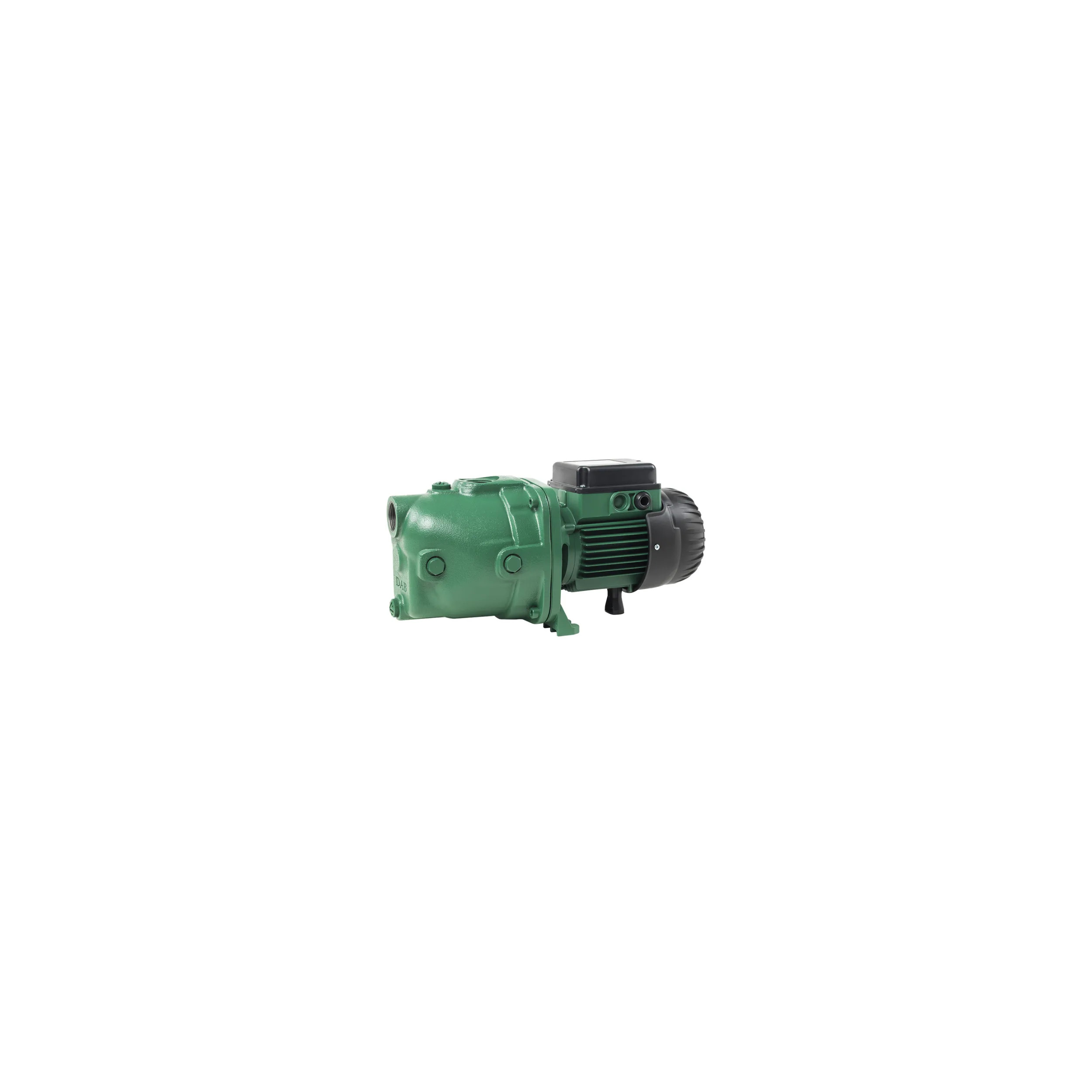

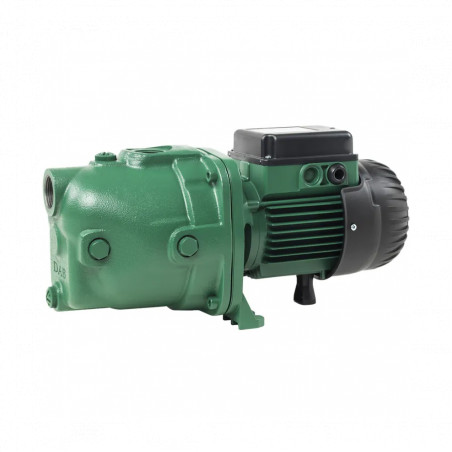

Jet 132 Mono surface pump

Jet 132 Mono surface pump

General characteristics:

Excellent suction capacity even in the presence of
of water containing air bubbles.
The PRED version is supplied with a mano contactor,
pressure gauge, 3-way connection and Tri disconnector
Telemechanical with its thermal, the whole mounted
and pre-wired to the pump.

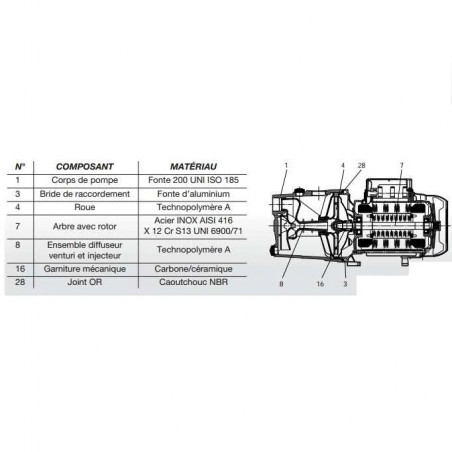

Pump
Cast iron pump body with anti-corrosion treatment
on the inner surface.
Cast aluminium engine mount.
Impeller, diffuser, venturi tube and injector
in Technopolymer A.
Shaft and wheel arch ringed in stainless steel.
Carbon/Ceramic mechanical seal.

Engine
Asynchronous, closed type, with cooling
by external fan.
Rotor mounted on ball bearings, greased for life
and selected to guarantee duration and silence.
Fan cover made of composite material.
Thermo-amperometric protection and capacitor
permanent incorporated in the single-phase version.
User-defined protection for the version
three-phase according to the standards in force.
Construction according to IEC 2 - 3 / IEC 61 - 69
(EN 60335-2-41).
Motor protection class: IP 44.
Terminal box protection rating: IP 55.
Insulation class: F.
Standard voltages: single-phase 220/240 V - 50 Hz,
three-phase 230/400 V - 50 Hz.
High efficiency three-phase motor IE2 from 0,75 Kw.

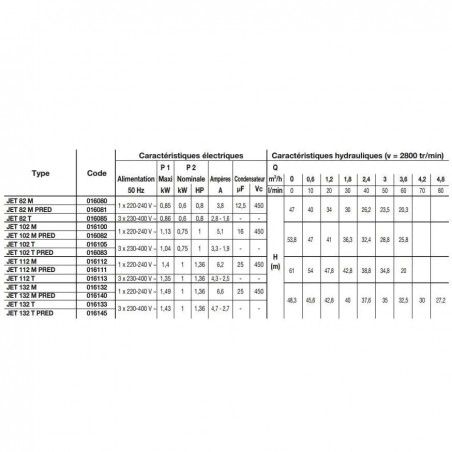

Technical specifications:

Use
Range of use: from 0.6 to 4.8 m3
/h with a head of up to 60 metres C.E.
Pumped liquid: clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallised and chemically neutral,
close to the characteristics of water.
Liquid temperature range: 0 °C to + 35 °C in domestic use (EN 60335-2-41),
0 °C to + 40 °C for other applications.
Maximum ambient temperature :
+ 40 °C.
Maximum working pressure :
8 bar (800 kPa).
Installation: fixed in position
horizontal.
