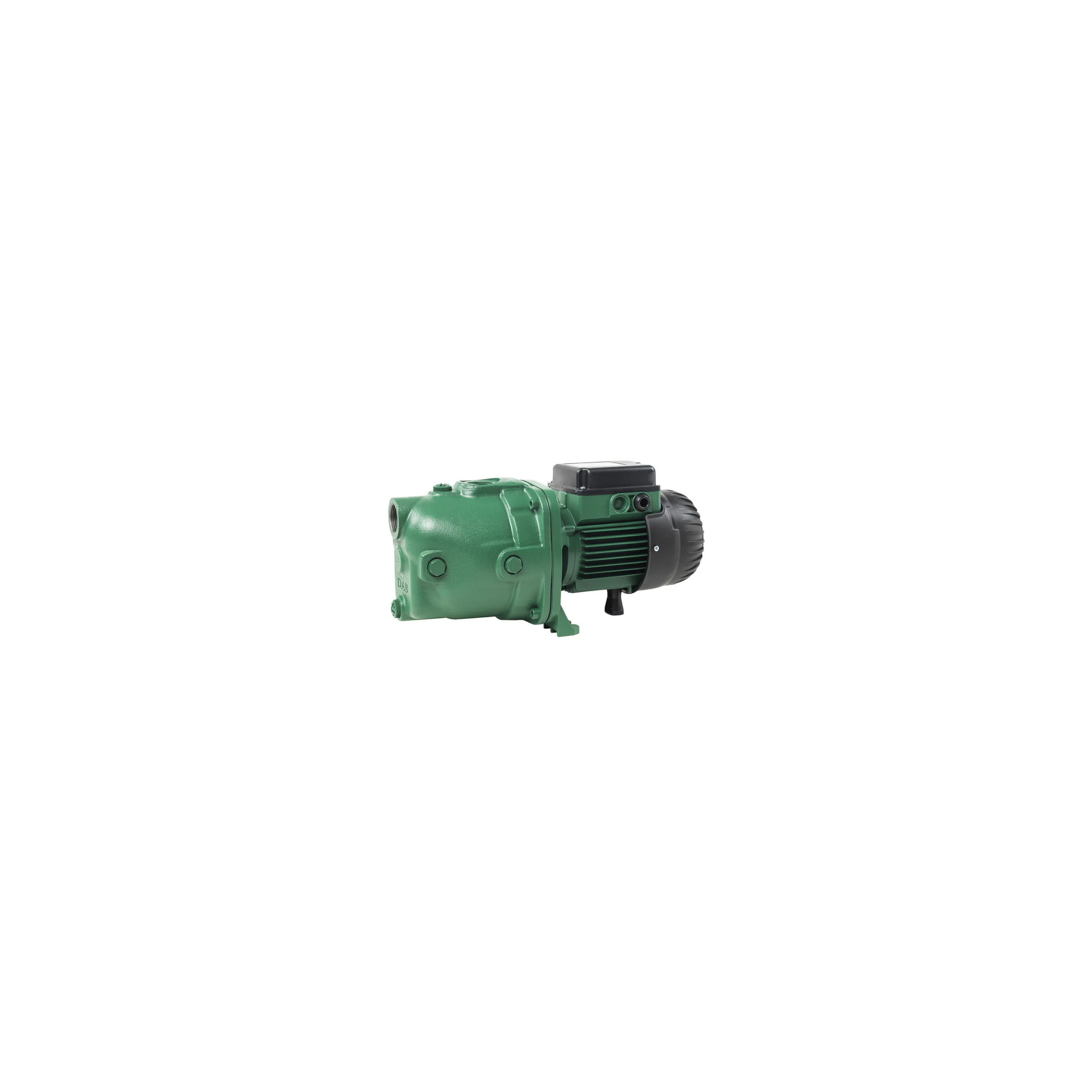

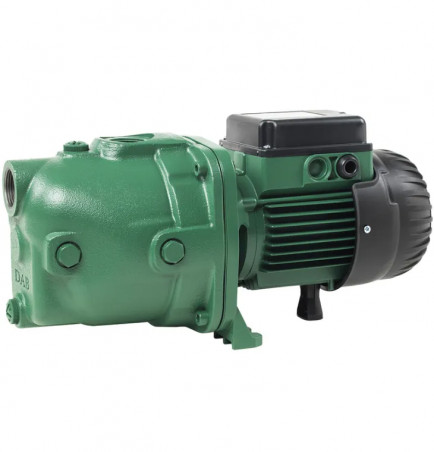

Surface pump JET 132 Tri

Surface pump JET 132 Tri

GENERAL CHARACTERISTICS:

Excellent suction capacity even in water containing air bubbles. The PRED version is supplied with a pressure switch, pressure gauge, 3-way connection and a telemagnetic disconnector with thermostat, all mounted and pre-wired on the pump.

Pump :

Cast iron pump body with anti-corrosion treatment even on the internal surface. Motor support in cast aluminium. Turbine, diffuser, venturi tube and injector in Technopolymer A. Stainless steel shaft and ringed impeller passage. Mechanical seal in Carbon/Ceramic.

Engine :

Asynchronous, closed type, with external fan cooling. Rotor mounted on ball bearings, greased for life and selected to guarantee durability and silence. Fan cover in composite material. Thermo-amperometric protection and permanent capacitor incorporated in the single-phase version. Protection at the user's expense for the three-phase version in accordance with current standards. Construction according to IEC 2 - 3 / IEC 61 - 69 (EN 60335-2-41). Motor protection class: IP 44. Terminal box protection class: IP 55. Insulation class: F. Standard voltages: single-phase 220/240 V - 50 Hz, three-phase 230/400 V - 50 Hz. High efficiency three-phase motor IE2 from 0.75 Kw.

TECHNICAL CHARACTERISTICS:

Use:

Operating range: 0.6 to 4.8 m3 /h with head up to 60 m W.C. Pumped liquid: clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallised and chemically neutral, close to the characteristics of water. Liquid temperature range: 0 °C to + 35 °C for domestic use (EN 60335-2-41), 0 °C to + 40 °C for other uses. Maximum ambient temperature: + 40 °C. Maximum working pressure: 8 bar (800 kPa). Installation: fixed in horizontal position.

ref: 016133
