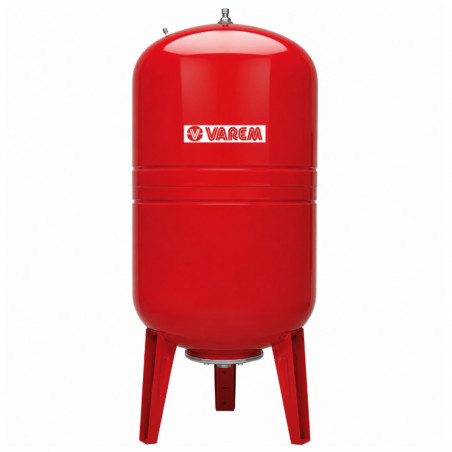

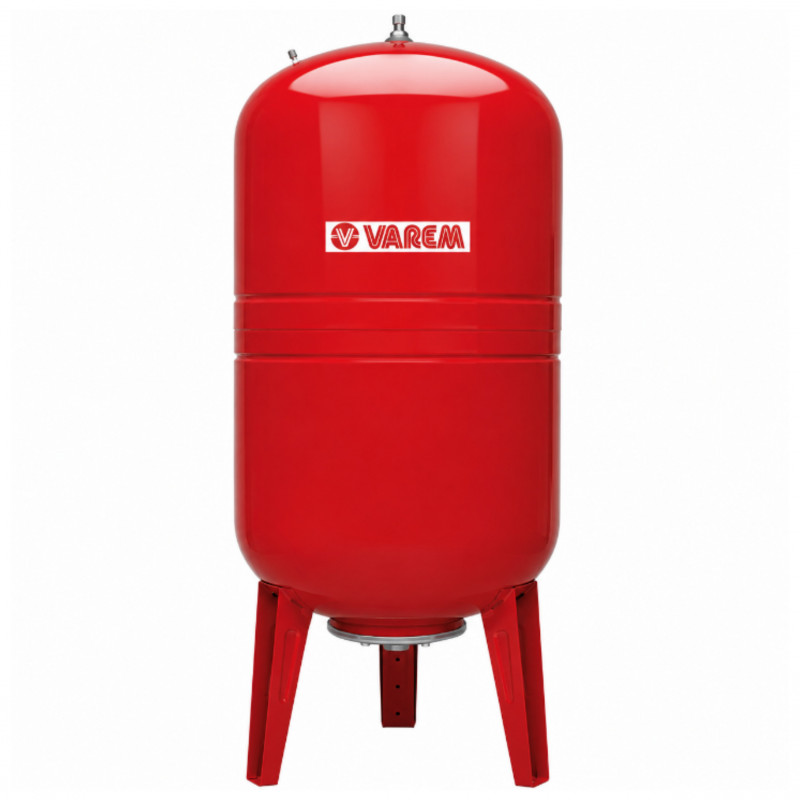

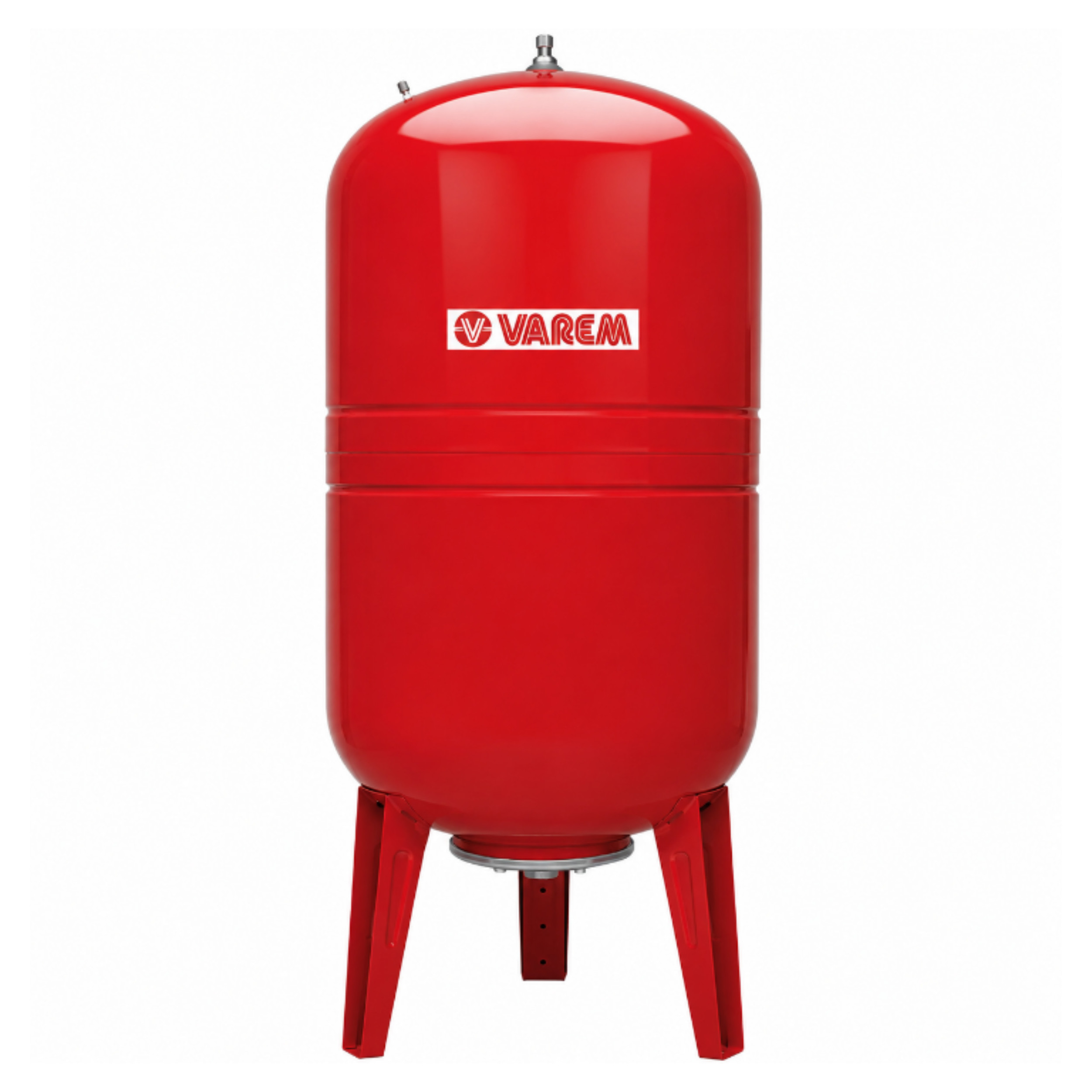

Jetly 500L vertical bladder tank booster, 10 Bars

Vertical bladder tank booster 500 Liters (10 Bars max)

The Jetly vertical bladder tank booster, with a capacity of 500 liters, is designed for the accumulation of pressurized water. This tank, identified by reference 309500, is installed on the discharge of a pump, either directly or at a distance, and can be used alone or in a battery. It is equipped with a food-grade butyl bladder, compatible with all types of water, including aggressive or calcareous waters.

The bladder is interchangeable and molded in one piece to minimize mechanical stress. The tanks are pre-inflated at the factory to 2 bars, and the service temperature ranges from -10 °C to +90 °C. The product complies with CE standards and is intended for use in domestic and professional water pressure systems.

Technical characteristics

• Product type: Vertical bladder tank booster
• Capacity: 500 liters
• Maximum pressure: 10 bars
• Factory pre-inflation: 2 bars
• Service temperature: -10 °C to +90 °C
• Bladder: Food-grade butyl
• Water compatibility: All waters, including aggressive or calcareous
• Bladder: Interchangeable

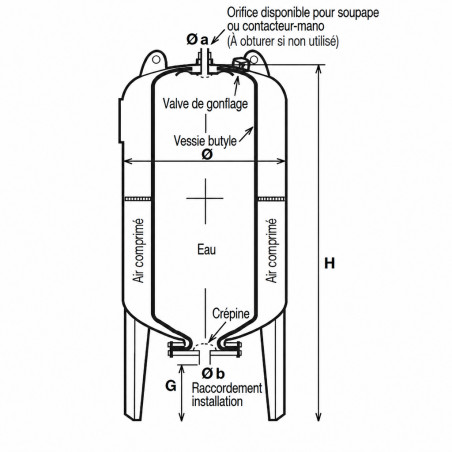

• Construction: Bladder molded in one piece
• Bladder fixation: Upper retaining part and lower flange
• V-KI version: Stainless steel kit with additional flange and AISI 304 stainless steel retaining part
• Installation: Vertical
• Mounting: On the pump discharge, directly or at a distance
• Packaging: 1
• Warranty: 2 years
• Origin: made in Europe
• Weight (kg): 104
• Voltage (V): 380
• Volume (L): 500
• Manufacturer: Jetly
• Manufacturer reference: 309500
• Compliance: CE
• Color: Green
• EAN code: 8034108701370

Observations

• Must be installed in a weather-protected area on a stable surface.
• Respect the maximum pressure of 10 bars.
• Check CE compliance before commissioning.
