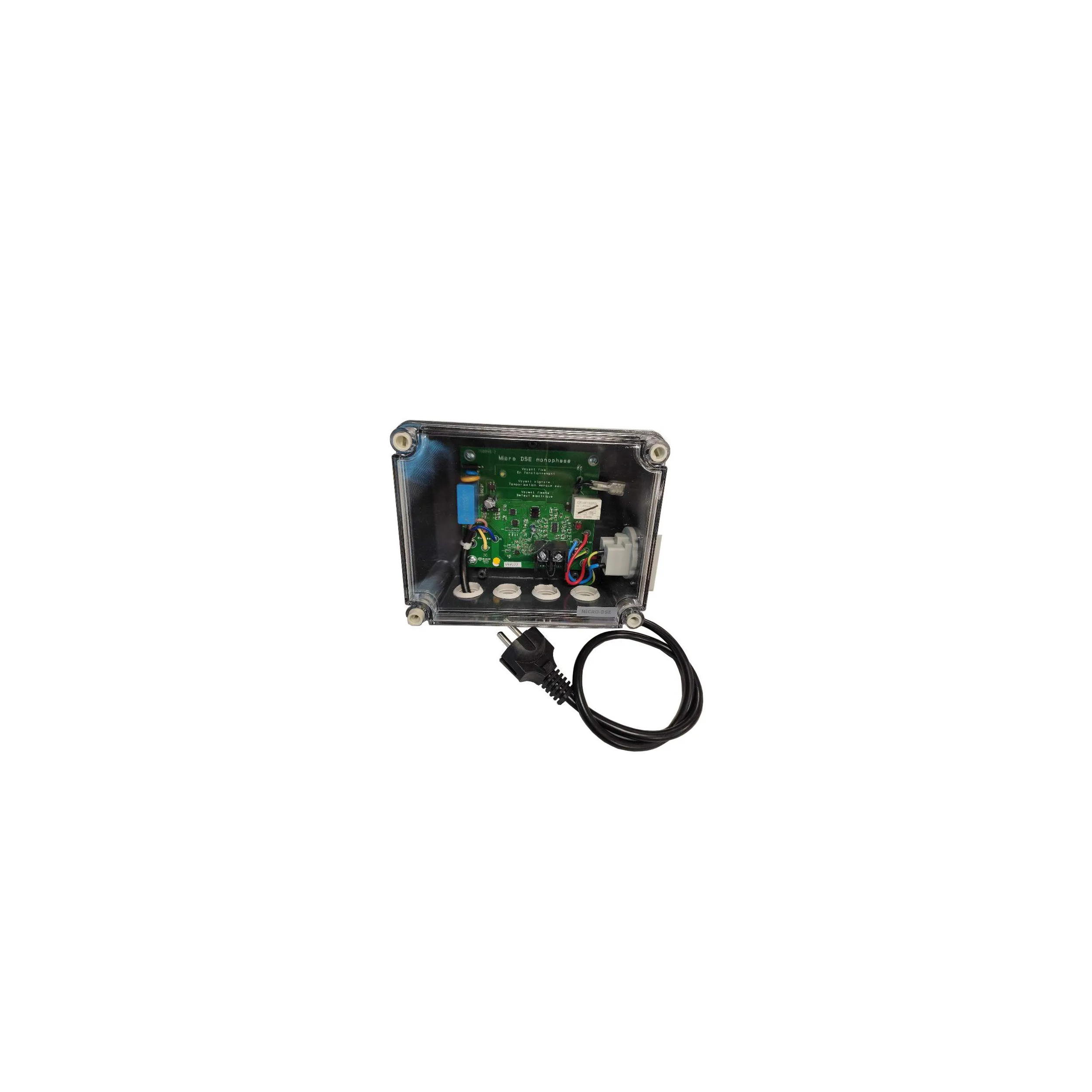

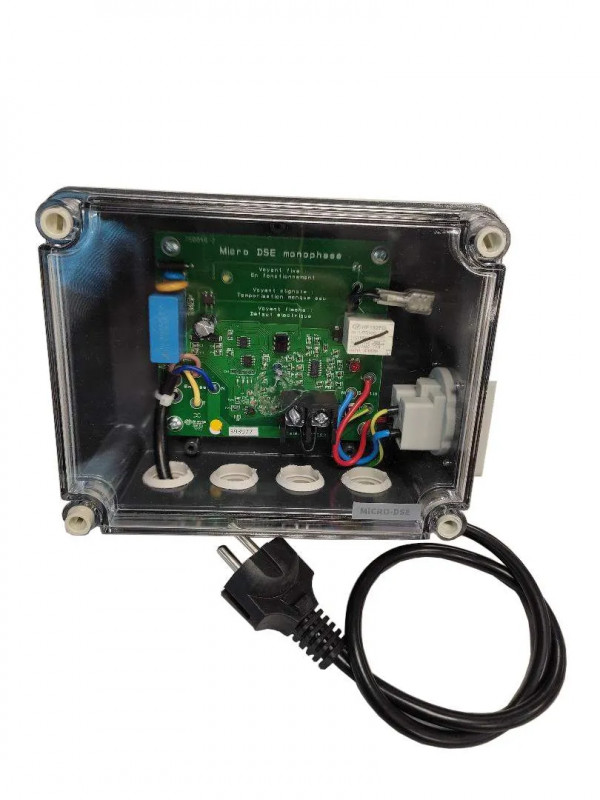

Water shortage protection box MICRO DSE single-phase 230V, 6.5A.

Water shortage protection box MICRO DSE single-phase 230V, 6.5A.

FUNCTION:

The MICRO DSE is a water shortage protection box that operates without an electrode thanks to a patented electrical monitoring device. The MICRO DSE is suitable for any 230 V Mono submersible pump up to 6.5 A. An electronic control prevents any use above 6.5 A. The MICRO DSE is a very easy box to install due to its self-adjustment and requires no accessories.

ADVANTAGES:

The MICRO DSE operates without an electrode or sensor according to a patented principle. It automates the operation of the installation by ensuring total protection of the submersible pump against water shortage. The MICRO DSE does not require manual adjustment; it performs a self-adjustment at the first startup. The microprocessor integrates the various pumping durations and optimizes the downtime due to water shortage. It also includes the anti-water hammer function by preventing the submersible pump from restarting within 10 seconds after stopping. In case of prolonged inactivity of the installation, the MICRO DSE starts the pump every 24 hours for 2 seconds.

FEATURES:

Waterproof box equivalent to IP 44 with cord and standardized plug, and transparent cover equipped with waterproof entries. Power supply: 230 V / 50 Hz. Output current: min 2 A - max 6.5 A. Equipped with a standardized female socket for connecting the pump plug. On/Off switch. Remote terminal block for connecting a pressure switch, a float. Yellow indicator on the board that displays the status of the installation: - Steady: in operation. - Flashing: water shortage, delay. - Flashing rapidly: current above 6.5 A or pump unplugged. The MICRO DSE is not compatible with TURBOSOM SRM4/100 and PULSAR 30/50M pumps. Dimensions (mm): 185 x 85 x 140. Weight: 0.6 kg. Indoor use. Temperature range: +5 to 40 °C. Code: 471511

It is strongly recommended to protect the MICRO DSE box against transient surges by installing the surge protector PS3.

Ref: 471512
