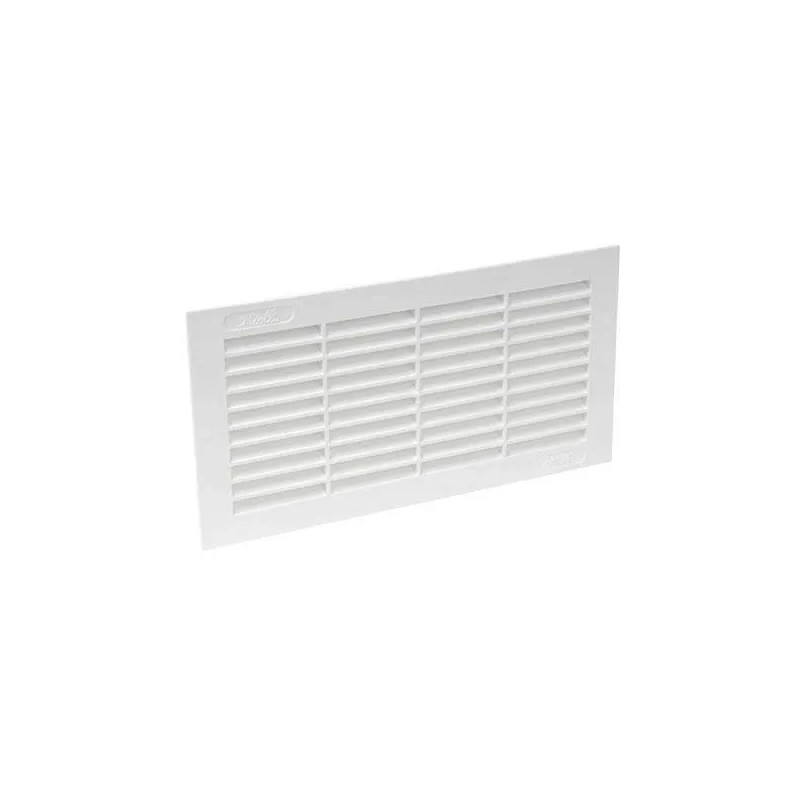

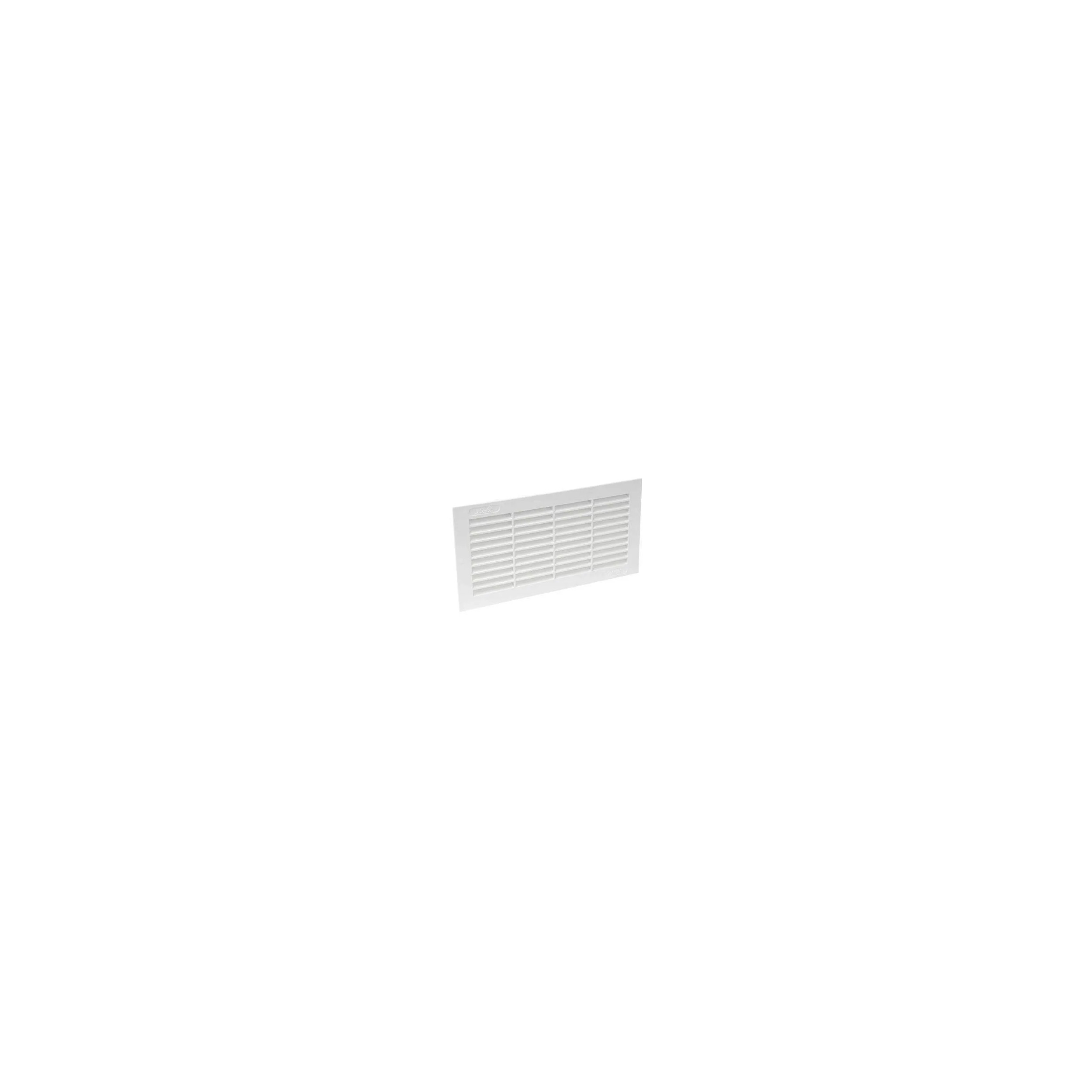

PVC for tiles with insect screen: rectangular 108x216 (mm, flush mounted)

■ FUNCTION:
- In order to keep any premises in good condition, it is necessary to eliminate the risk of condensation
and humidity and to evacuate stale air.
- To do this, it is necessary to create an air circulation from the bottom to the top or from one end to the other of these rooms.
- In other cases, it is necessary to supply fresh air to an equipment, a fireplace, a chimney, a dryer, a water heater
(see gas regulations).
- Ducts or openings are required to create these air passages. Nicoll grilles allow the covering of
of these ports, and the range to meet most of the cases of figure, so much for the
dimensions as well as for the implementation requirements.

■ DESCRIPTION:
- The ventilation grids are entirely injected in "white" POLYSTYRENE. This raw material
allows them to withstand normal conditions of use for indoor exhibitions, such as
(do not use in hot air distribution).

■ IMPLEMENTATION:
- The ventilation grids are inserted exactly in place of the tiles of
same dimensions.
-They are suitable for bathtub inspection hatches.

■ PASSAGE SECTION:
- The column " Passage Type " defines the theoretical section in cm² without screen.

Features:
