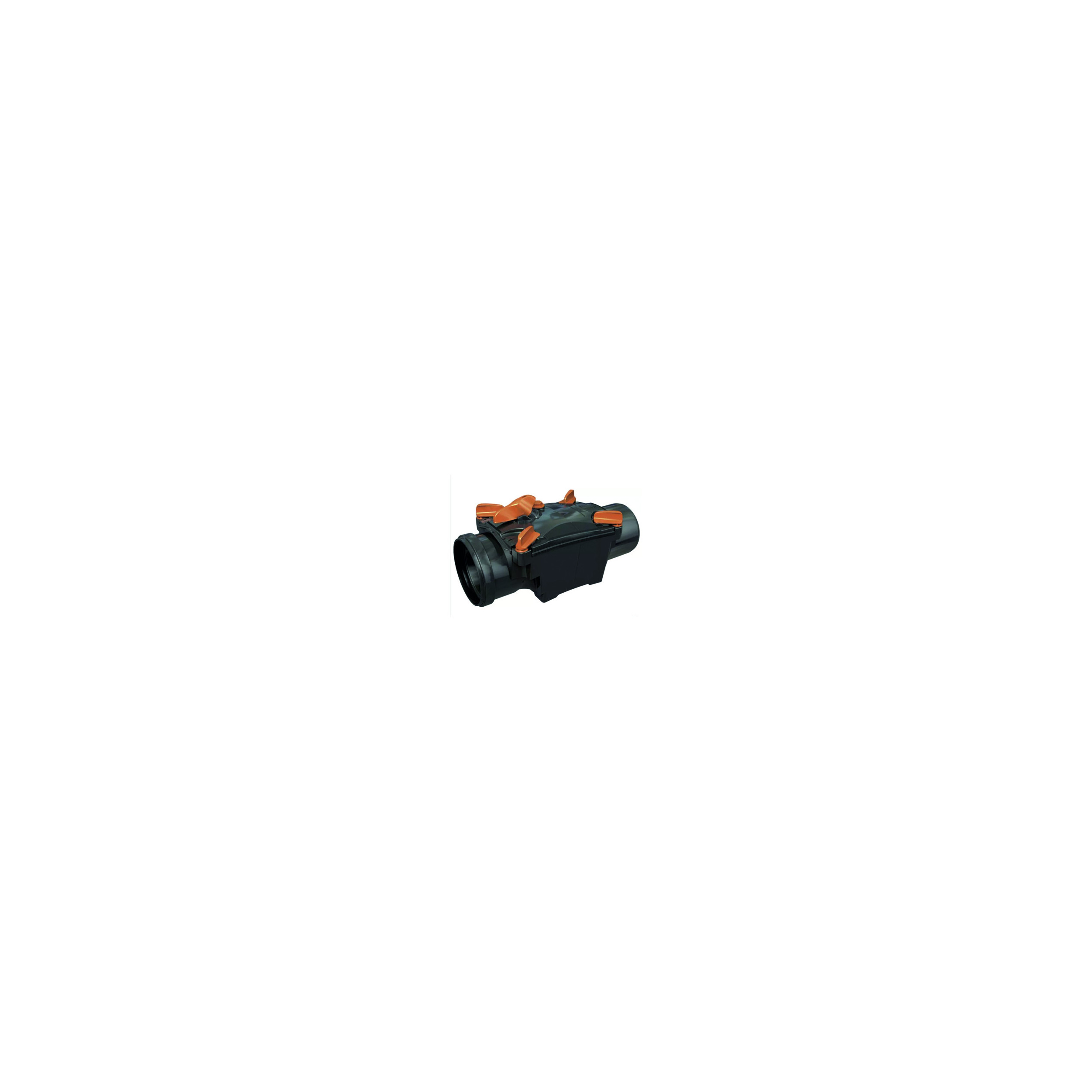

Type 1 swing check valve, diameter 100mm.
€407.81
Tax Included
(339.84 € HT)
Référence NICOLL : 11R1048
Emplacement magasin : B6-D-180
Choose the NICOLL check valve part no. 11R1048 now.
Safety guarantees(to be modified in the "Reinsurance" module)
Delivery policy(to be modified in the "Reinsurance" module)
Returns policy(to be modified in the "Reinsurance" module)
Type 1 swing check valve, diameter 100mm NICOLL reference 11R1048.
Product type: Check valve
Description: - Nicoll's non-return valves are positioned on the drainage system (waste or rainwater) and are used to prevent accidental backflow from the public network into the home.
- Anti-corrosion product: no screws or metal components sensitive to oxidation
- Suitable for both new-build and renovation projects, thanks to its compact dimensions (height and width)
- 1 removable stainless steel valve with bi-injected gasket
- Low head difference
- Lightweight and resistant (injected PVC)
- Easy access and maintenance: no tools required for disassembly
- Complies with standard NF EN 13564.
Place the valve in an accessible location, preferably a manhole, to facilitate servicing.
Observe direction of discharge (direction of arrow). The male outlet can be connected to a jointed or glued tube.
Position cover horizontally.
During normal use, the locking device is not engaged. In the event of prolonged absence, lock the handle: the flap is then temporarily blocked.
Lid can be easily removed for access to the flap, in case of blockage or periodic cleaning.
Supplier: NICOLL
Catalogue number: 11R1048
Data sheet
- Weight (kg) :
- 2
- Packaging:
- 1
- Nominal diameter (DN in mm) :
- 100
- Warranty:
- 2 years
- Contains wood :
- No
Specific References
- EAN13
- 8029451455292
- EAN-13
- 8029451455292
- Location
- B6-D-180
- Reference to display
- NICCL11R1048
- Supplier reference
- 11R1048
