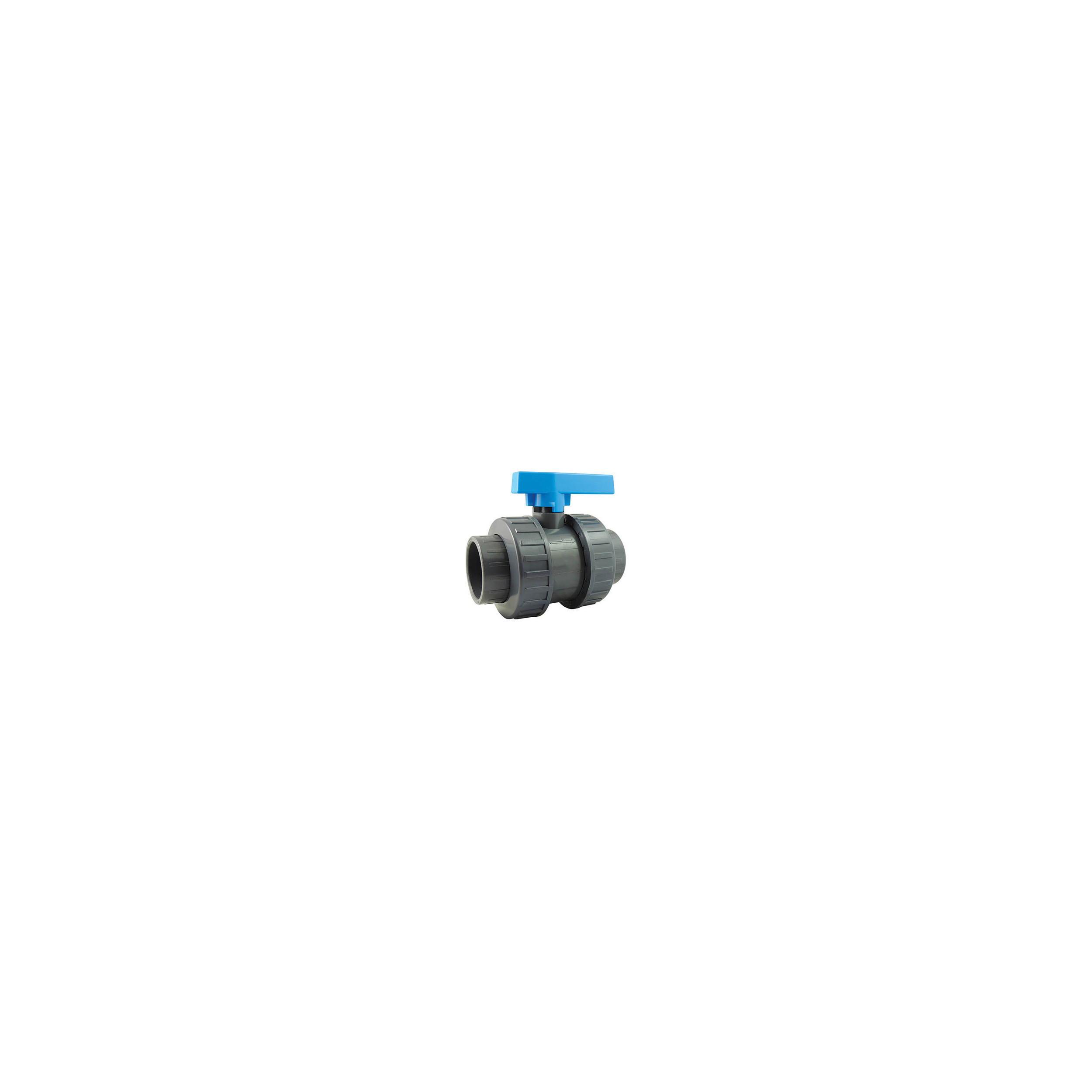

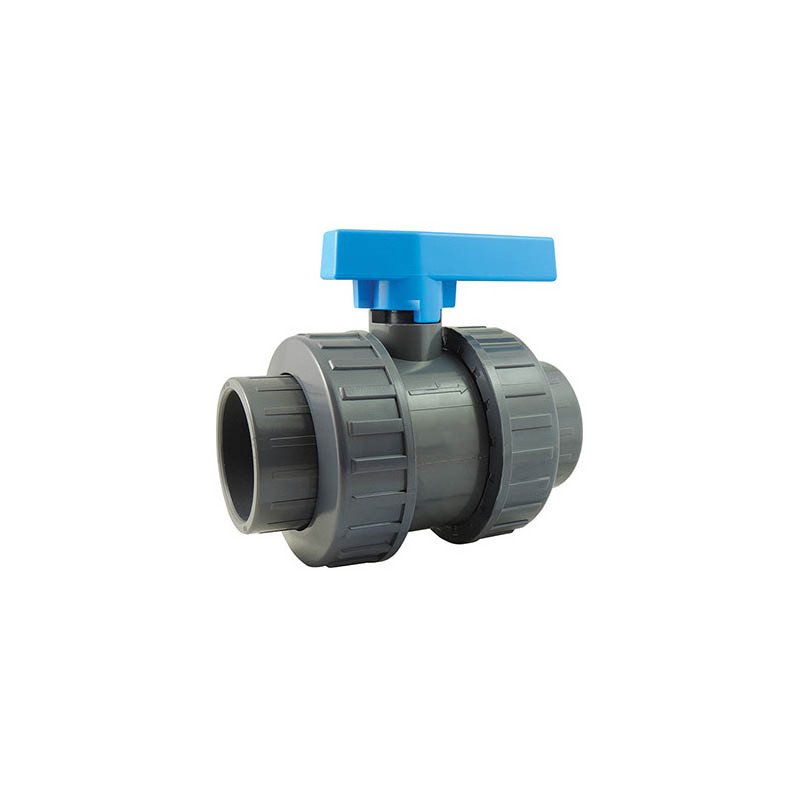

Ball valve double union F/F to glue 40 mm, PVC-U pressure, PN16
€18.62
Tax Included
(15.52 € HT)
Référence CODITAL : 5005431004000
Emplacement magasin : B5-G-037
CODITAL 5005431004000 Ball Valve The double union F/F glued ball valve from the brand CODITAL is an essential device for PVC-U piping installations. Weighing 0.45 kg and with a pressure rating of 16 bars, this valve is designed to withstand demanding working conditions. Made in Europe, it is ideal for plumbing systems requiring high pressure.
Safety guarantees
Delivery policy
Returns policy
CODITAL series water ball valve, double union F/F to glue, PVC-U, diameter 40 mm, PN16
The CODITAL series water valve" class="autolink" title="Ball valve" data-autolink="1">ball valve is a double union F/F to glue ball valve. It is intended for PVC-U piping installations with female glue connections according to the EN 1452 standard.
This model is equipped with PTFE seats and EPDM O-rings. The indicated pressure is PN16-10, with a specified pressure of PN16. The indicated operating temperature is 0°C / +60°C.
The valve features tighten-able flanges. A key for tightening the flanges is incorporated on the handle. The handle is ergonomic.
- Product type: PVC pressure ball valve double union to glue
- Designation: Double union ball valve - water series - F/F to glue
- Series: WATER SERIES
- Ref.: 5431
- Diameter: 40 mm
- Pressure: PN16
- Pressure: PN16-10
- Material: PVC
- Material: PVC-U
- Seats: PTFE
- O-rings: EPDM
- Installation: To glue
- Connections: Female glue connections according to EN 1452 standard
- Configuration: Double union
- Configuration: F/F to glue
- Temperature: 0°C / +60°C
- Equipment: Tighten-able flanges
- Equipment: Key for tightening flanges incorporated on the handle
- Handle: ergonomic
- Manufacturer: CODITAL
- Reference: 5005431004000
3 Items
Data sheet
- Main color :
- Dark grey
- Weight (kg) :
- 0.45
- Packaging:
- 1
- Main materials :
- PVC-U
- Pressure (bar) :
- 16
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3760311002083
- EAN-13
- 3760311002083
- Location
- B5-G-037
- Reference to display
- CODVA5004431004000
- Supplier reference
- 5005431004000
