Drain and waste for extra-flat basin, height 34 mm

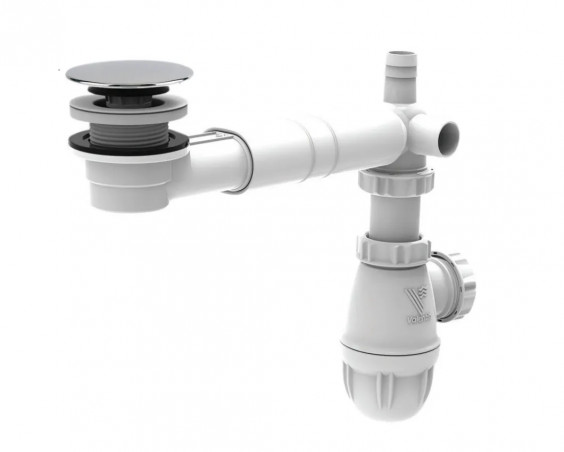

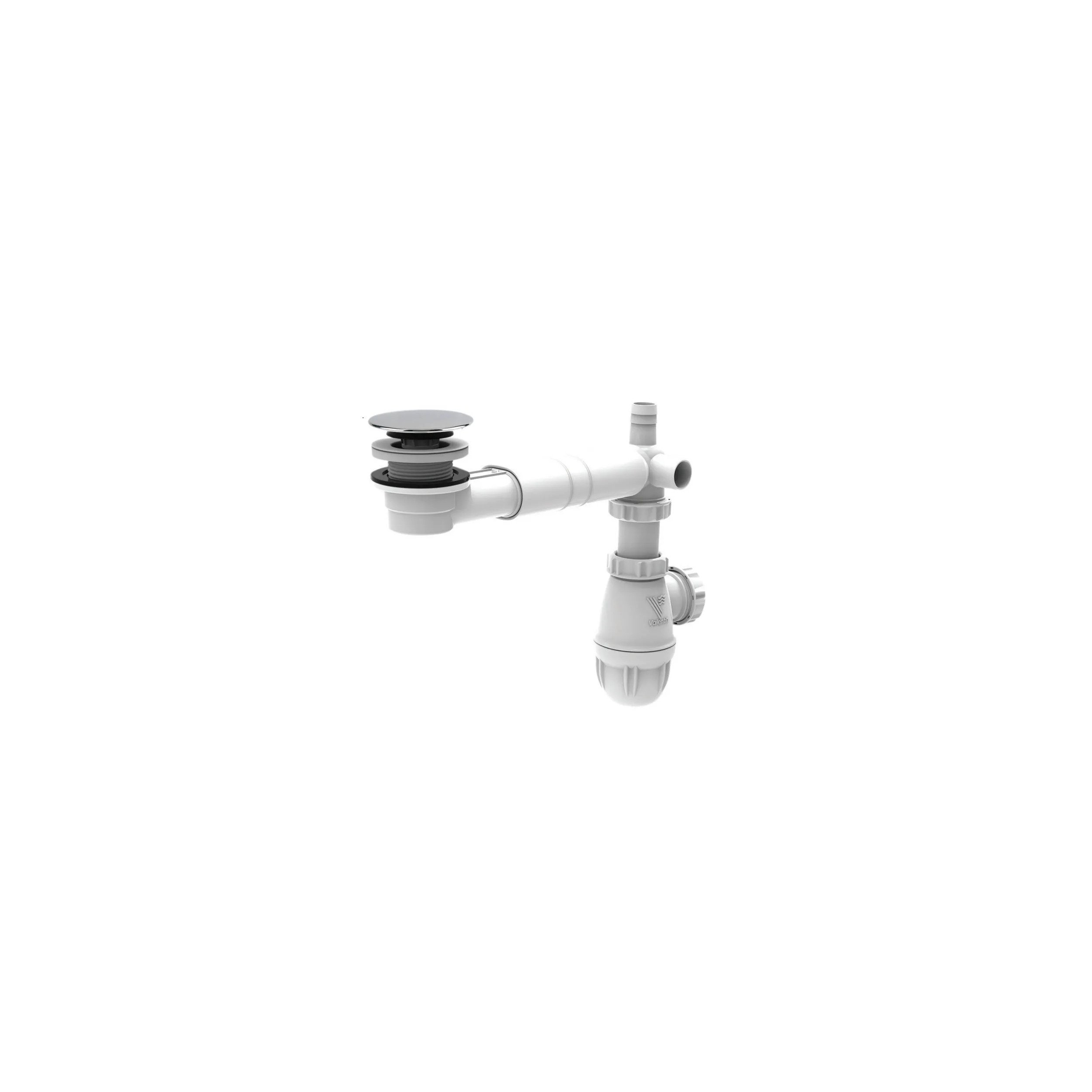

Washbasin drain set with extra-flat tubing TBXP, h. 34 mm, bi-material siphon offset, stainless steel finish reference 62480000000

FEATURES:

> height 40 drain adjustable

> stainless steel digiclic or fixed flap

> with or without overflow

> tightening 5 to 87 mm

> expandable plastic tubing

> outlet 1"1/4

> 3 overflow or washing machine connections

> bi-material washbasin siphon, adjustable

> outlet Ø 32 mm

PERFORMANCE

> Height under washbasin: 40 mm (offset siphon)

> Center distance: from 114 to 275 mm

> Flow rate: 30l/min

DESCRIPTION:

The TBXP set is a complete universal equipment for washbasin or bathroom basin. A removable lantern allows adaptation to washbasins with or without overflow. From the stainless steel flap to the bi-material siphon, the TBXP promotes space-saving to limit the space occupied under the washbasin thanks to a tubing that offsets the siphon and is 100% adjustable and cuttable. This TBXP set adjusts to your needs with a universal drain of height 34 mm that can be cut with a fixed or digiclic flap of your choice, a central adjustable tubing from 114 to 275 mm with an under-basin footprint of only 40 mm and 2 washing machine connections.

This set is very easy to assemble, space-saving and compatible with basins for people with reduced mobility.
