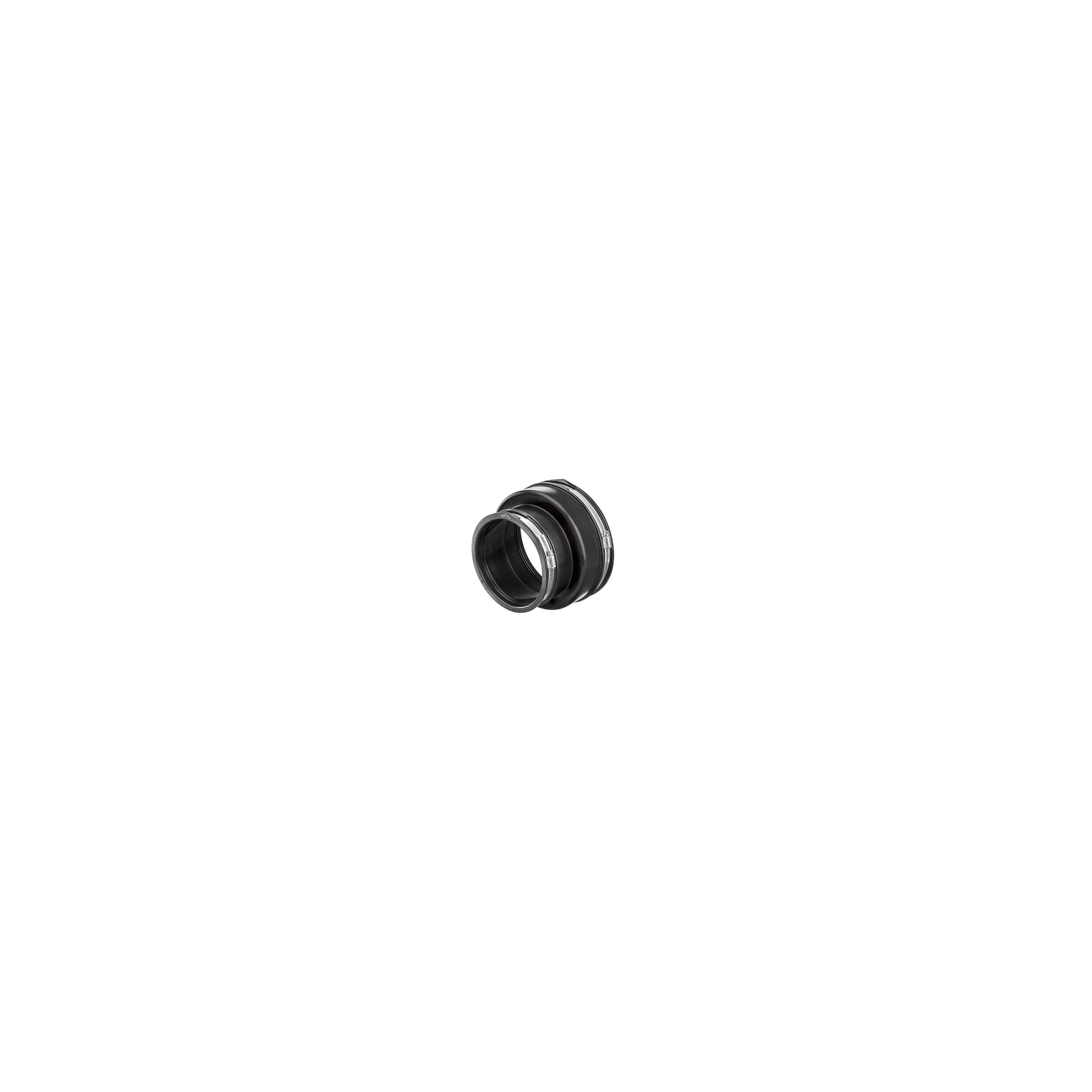

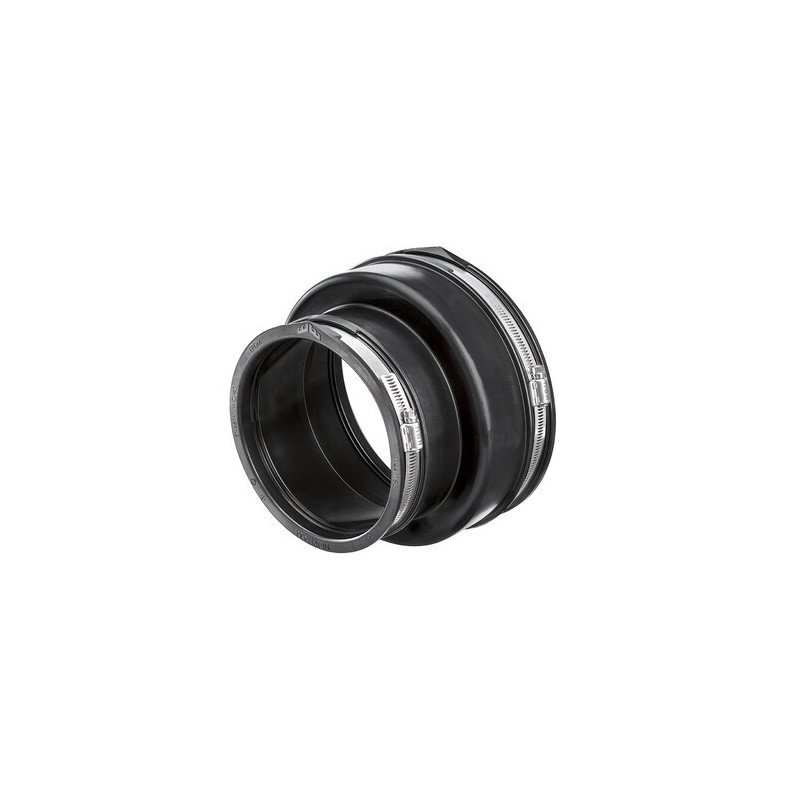

NORHAM FLEX SEAL fitting usage range 100-115/130-145mm

NORHAM FLEX SEAL fitting usage range 100-115/130-145mm - Multi-material repair fittings - Norham

The NORHAM FLEX SEAL multi-material fittings are designed for connecting and repairing pipes made of various materials while maintaining the water flow. They are suitable for all sewage, rainwater, and drainage networks.

Thanks to their wide range of outer diameters, these fittings allow for the connection and repair of pipes made of similar or different materials. They can be used for above-ground or underground networks, both inside and outside buildings, without the risk of ground shear.

Their CLIP-IN assembly technology offers ease of handling and installation, while the MEDIUM-TORQUE tightening system ensures optimal pressure retention.

Technical specifications

• Multi-material connection: PVC, PP, smooth or corrugated HDPE, GRP, cast iron, fiber cement, steel, stoneware, concrete
• Pressure resistance: up to 0.6 bar
• Test pressure: 0.6 bar
• Temperature resistance: -40 °C to 140 °C
• Angular deviation: from 3.0° to 7.5° depending on the DN
• Fire resistance: class E (NF-EN 13501-1)
• Sleeve: made of EPDM 60 DIDC grade WC compliant with standard NF-EN 681-1
• Fixing clamps: made of stainless steel AISI 304, with a minimum hardness corresponding to class C850, in accordance with standard NF-EN 10088-2
• Width: 17 cm
• Height: 10 cm
• Weight: 0.510 kg
• Packaging: 1
• Main materials: EPDM
• Reference: NORRAAC115145
• Supplier reference: AC115-145
