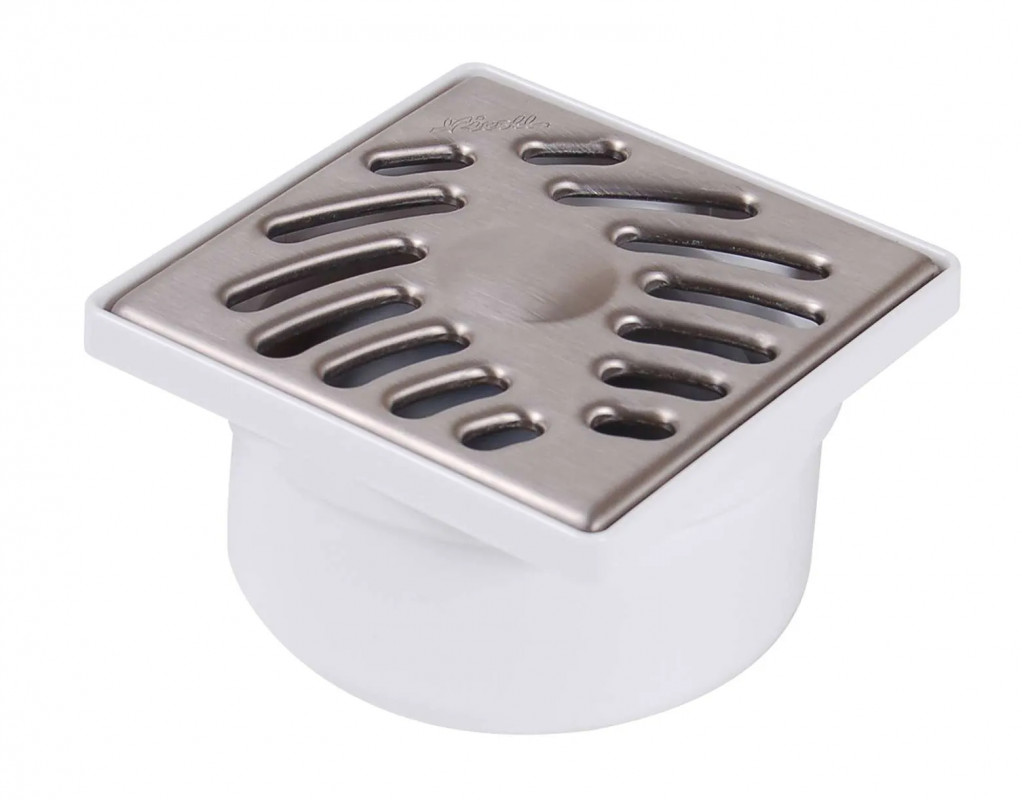

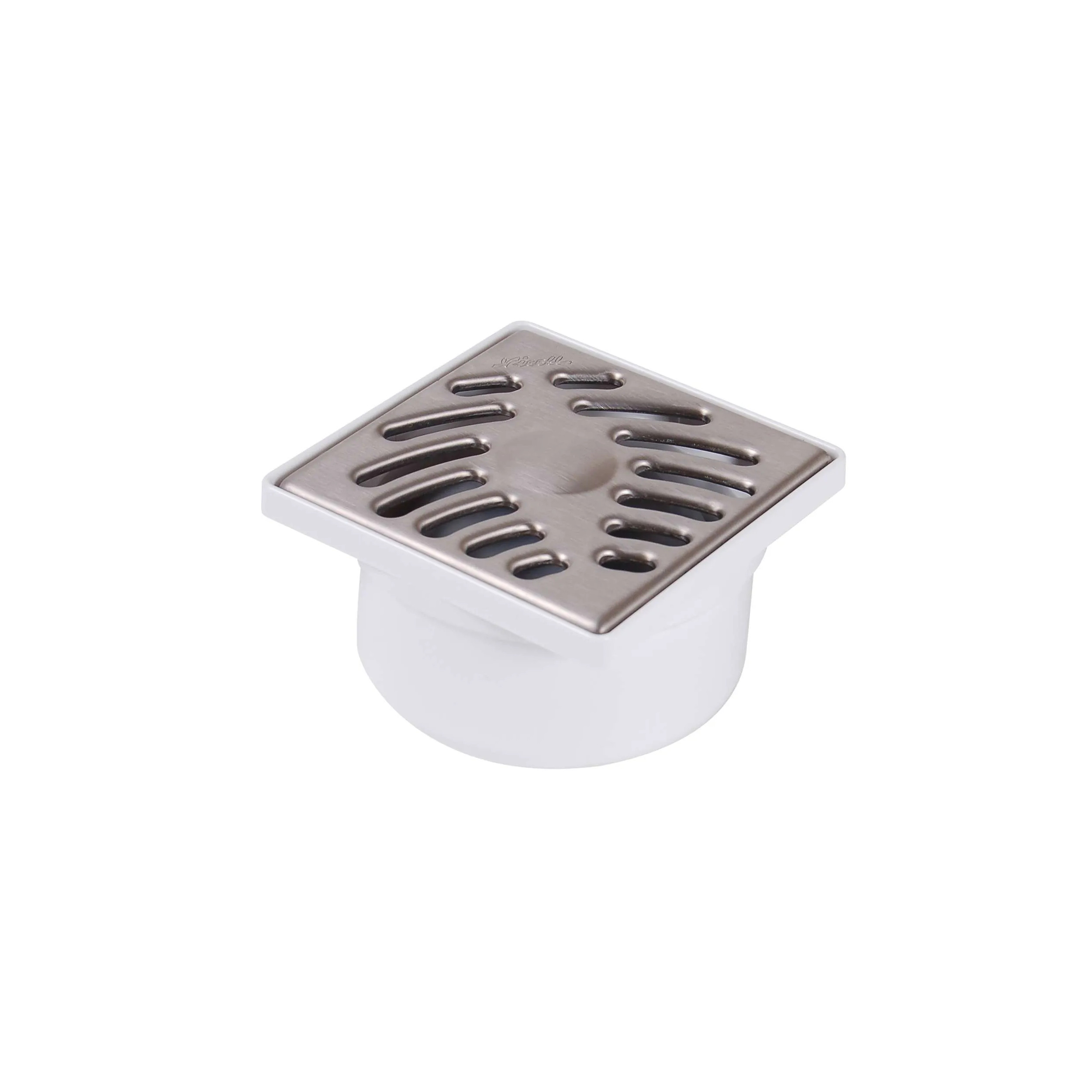

97x97 mm siphon with stainless steel grid, spigot Ø93/50/40 mm
€23.53
Tax Included
(19.61 €HT + Ecotaxe €0.02HT)
Référence NICOLL : SIHJ10I
Emplacement magasin : A3-G-084
97x97 mm siphon with stainless steel grid, spigot Ø93/50/40 mm NICOLL reference SIHJ10I.
Safety guarantees
Delivery policy
Returns policy
97x97 mm siphon with stainless steel grid, Ø93/50/40 mm spigot NICOLL reference SIHJ10I.
- ■ FUNCTION:
- They are designed to drain run-off water from loggias, courtyards, shower rooms, laundry rooms, etc...
- ■ DESCRIPTION:
- Fully injected in white PVC for the body and grey for the bell.
- Brushed stainless steel grille.
- PVC body with 93 mm external diameter and vertical outlet Ø 50 mm female and 40 mm male.
- ■ TECHNICAL SPECIFICATIONS :
- Clearance: 28 mm.
- Max flow rate: 0.7 liters/second.
- Class: H1.5.
- ■ INSTALLATION:
- The 93 mm siphon body enables connection to a Ø 100 mm male pipe and PVC/PVC bonding with the pipe, ensuring a perfect seal.
- In the case of cement-based installation, ensure that the bottom of the siphon is in contact with the bonding concrete.
- The finished floor must be flush with the top of the frame to ensure that the siphon retains its drainage efficiency.
1 Item
Data sheet
- Weight (kg) :
- 1.5
- Packaging:
- 1
- Warranty:
- 2 years
- Origin:
- made in europe
Specific References
- EAN13
- 3309032839006
- EAN-13
- 3309032839006
- Location
- A3-G-084
- Reference to display
- NICSISIHJ10I
- Supplier reference
- SIHJ10I
