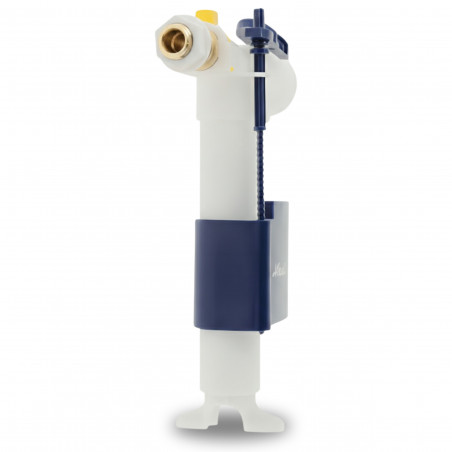

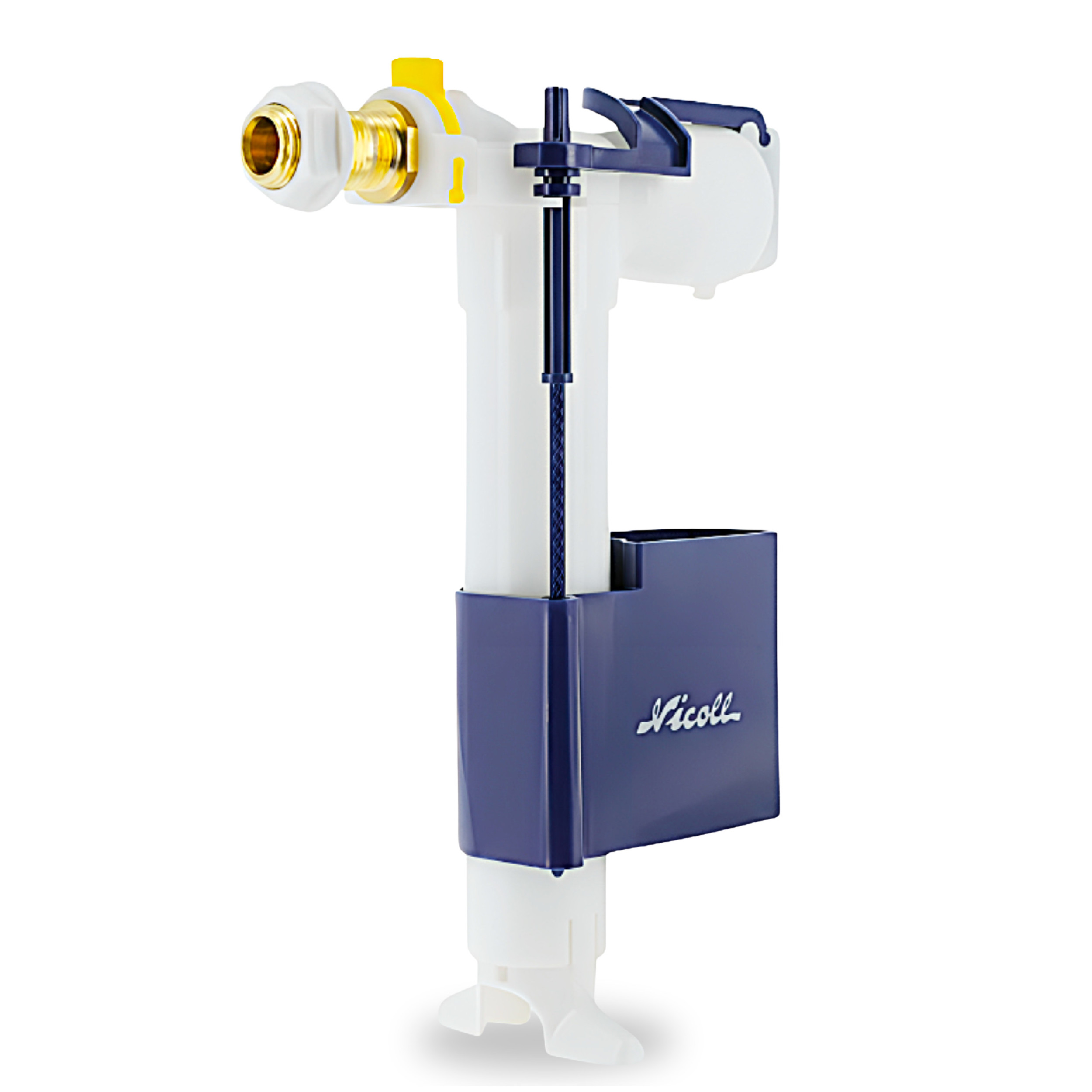

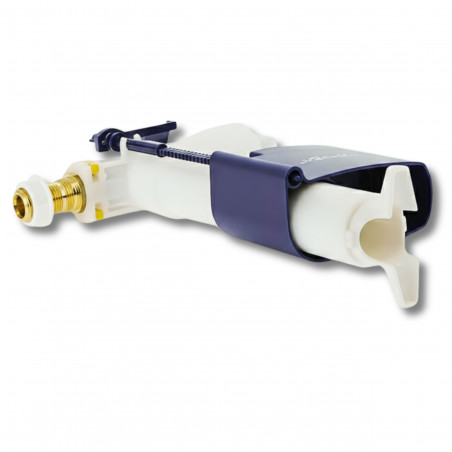

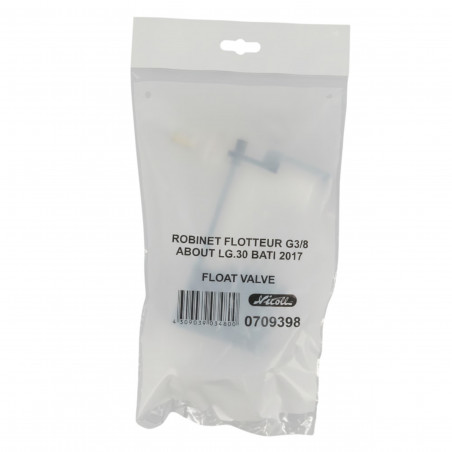

Float valve side supply 12x17 concealed cistern NICOLL, height 230 mm
€29.42
Tax Included
(24.52 €HT + Ecotaxe €0.02HT)
Référence NICOLL : 0709398
Emplacement magasin : B3-D-133
Side inlet float valve NICOLL 0709398 for concealed cistern Float valve NICOLL 0709398 with side inlet 12x17, specially designed for concealed cistern. Height 230 mm, ideal for quick installation and perfect sealing. Easy water level adjustment, compatible with most standard tanks.
Safety guarantees
Delivery policy
Returns policy
Side inlet float valve NICOLL, short brass fitting 3/8 (12x17), height 230 mm, compatible WBS2P/WBS1P/BP03/RESADIS8/9833/9834
Side inlet float valve NICOLL, spare part intended for filling concealed flush system cisterns. It is equipped with a connection via a 3/8" (12x17) brass fitting and a high-strength plastic body. Compliant with NF standard, it is rated for a service pressure of 0.5 to 10 bars and a flow rate of 0.13 L/s under 3 bars.
This float valve is compatible with the following NICOLL installations: concealed cistern frame WBS2P and WBS1P, 8 cm frame BP03, masonry cistern RESADIS8, as well as masonry cisterns 9833 and 9834.
- Type: Float valve
- Status: Spare part
- Supply: Side
- Use: Filling concealed flush system cisterns
- Connection: 3/8" brass fitting
- Thread: 12x17 (3/8")
- Service pressure: 0.5 to 10 bars
- Flow rate: 0.13 L/s under 3 bars
- Body material: High-strength plastic
- Fitting material: Brass
- Standards: Compliant with NF standard
- Compatibility: Concealed WC cisterns with side inlet
- Compatible frame: WBS2P / WBS1P
- Compatible 8 cm frame: BP03
- Compatible masonry cistern: RESADIS8 / 9833 / 9834
- Minimum height: 220 mm
- Maximum height: 320 mm
- Width: 150 mm
- Arm length: 190 mm
- Float diameter: 90 mm
- Manufacturer: NICOLL
- Reference: 0709398
Discover all products from the NICOLL range.
5 Items
Data sheet
- Width (cm):
- 15
- Height (cm):
- 23
- Main color :
- Blue
- Weight (kg) :
- 0.210
- Threads :
- 3/8" (12x17)
- Main materials :
- ABS and Brass
- Pressure (bar) :
- 0.5 - 10
- Maximum flow :
- 0.13
- Certification:
- NF
- Origin:
- EU
Specific References
- EAN13
- 3309039034800
- EAN-13
- 3309039034800
- Location
- B3-D-133
- Reference to display
- NICRO0709398
- Supplier reference
- 0709398
